Branch

Introduction

Branch, one of MoEngage's Technology Partners allows you to track the install acquisition data to enhance your marketing automation campaigns on MoEngage.

Scope

Use the Publisher Name and Campaign Name of Install in MoEngage

Steps

To integrate Branch with MoEngage, you need to follow the below steps:

Configure Settings on MoEngage Dashboard

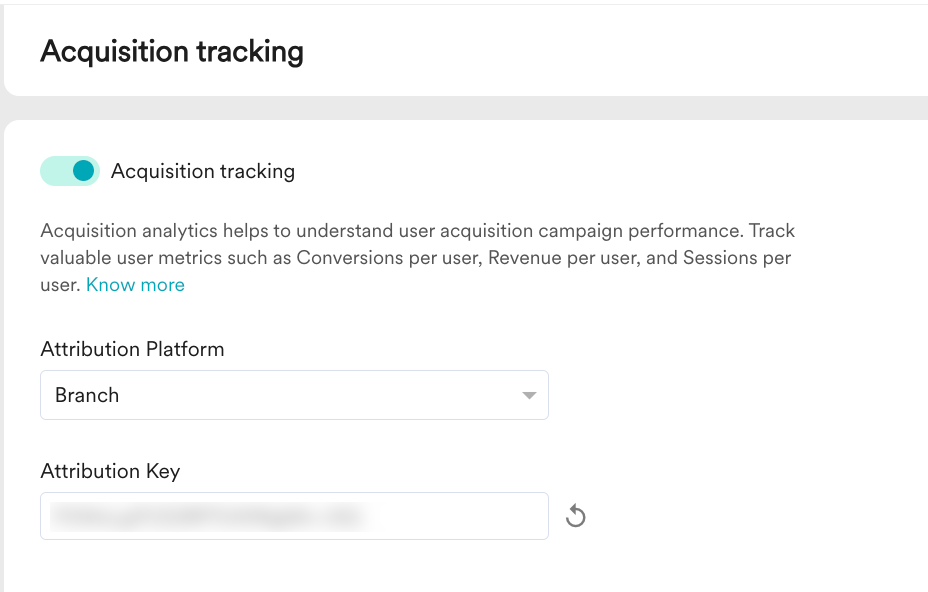

Navigate to MoEngage Dashboard > Settings > Analytics.

Under 'Acquisition Settings', turn on 'Acquisition Tracking', and select Branch from the dropdown.
This by default will generate an 'App Key'.

Hit Save to save all these changes.


Configure Settings on Branch Dashboard

To configure the settings on Branch Dashboard, please follow the steps mentioned in the integration document for Branch.

Fields on Branch Dashboard541d9d2-image_30.png

Field Description
MoEngage Data Center

Select one of the following depending upon the MoEngage Data Center you have signed up with. You can refer to this article for more details on identifying your MoEngage data center.

  • DC-01
  • DC-02
  • DC-03


MoEngage Data Center setting on Branch

Please note that for integration settings saved before June 1, 2021, the Data Center option will not be available on Appsflyer and as such all data will only be attempted to be sent to DC-01 in MoEngage.

If you are on DC-02 or DC-03 of MoEngage, please reset settings from the Appsflyer dashboard for MoEngage integration and select the appropriate data center.



MoEngage App ID

Fetch the APP_ID from MoEngage dashboard by navigating to Dashboard -> Settings -> App -> General -> APP ID

MoEngage App Key

Enter the App Key generated in STEP 1 or from your 'Settings' -> 'Analytics' -> Acquisition Settings.

How to use the Acquisition Data in MoEngage

After MoEngage starts receiving data from Branch, you can leverage this data in the following ways:

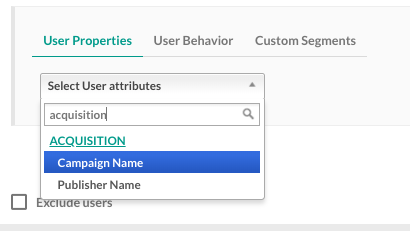

User Attributes

We track two User Attributes - "Campaign Name" and "Publisher Name". These attributes can be used in your campaigns, segmentation and analytics. The Publisher Name and Campaign Name of Install give you an added insight into the persona of the user and you can leverage this data to enhance your onboarding campaigns, user funnels and in general, personalize your marketing automation activities on MoEngage. The next sections list a few popular use-cases on how you can leverage this data in MoEngage.

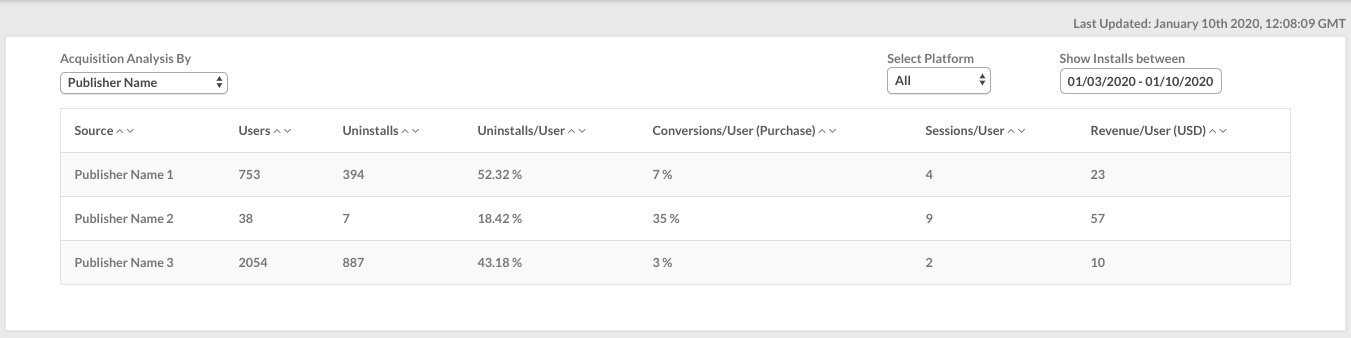

Analyze the performance of different publishers

Branch Integration can help in analyzing the effectiveness of your app install campaigns and sources in MoEngage. With the help of the data you are already tracking in MoEngage like user events, conversion goals, and uninstalls, you can compare the performance of different app install campaigns you are running and also analyze the relative performance of installs from different publishers to optimize your marketing spends.

To analyze this data, you can view the MoEngage acquisition dashboard here.


If you are using MoEngage Analytics, you can also leverage the Publisher Name and Campaign Name information of Installs to analyze your user funnels.

Analyze the performance of different campaigns

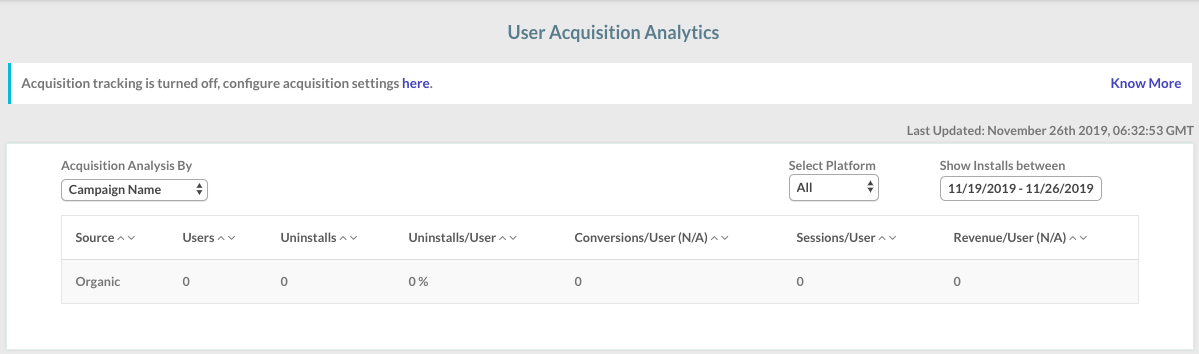

After the integration is enabled, you can also see your acquisition data analysis on the acquisition dashboard by navigating from the dashboard sidebar : Analyze -> Acquisitions47521bb-Screen_Shot_2019-11-26_at_1.05.54_PM.png

Enhanced Onboarding Campaigns

You can use the Publisher Name and Campaign Name of install, which are present as user properties in MoEngage, to create Segments and accordingly personalize the push notifications, in-app messages, emails, and SMS that you are sending them via MoEngage.

Install attribution data gives you an insight into how the users could progress further in their lifecycle right when they install the app. This is a very useful piece of information and can help you to enhance the performance of your onboarding campaigns by improving retention, reducing the time to the first conversion, and also helping drive a higher LTV per user.

Publisher Category Use-case
Publishers where average sessions per user are low Send push notifications periodically to increase the average no. of sessions per user, right from the time the users install the app.
Publishers where average LTV is high These are your potential premium users and you could implement a campaigns strategy to nurture them into your segment for premium users.
Publishers where the uninstall rate is high You could identify these users who have a higher propensity to churn immediately after they install the app and incentivize such users to make a first purchase which can, in turn, reduce your churn rate.

Data Tracking

Custom Tracking

At times, your users may install your app from publishers who are not tracked by Branch or who do not allow Branch to forward the install source information at a user level to MoEngage.

One of the possible workarounds to this is to fetch the install information from such publishers and forward them to MoEngage using the below APIs

Android

https://api.moengage.com/v1/installInfo?publisher_name=<publisher_name_of_install>&campaign_name=<campaign_name_of_install>&src=branch&appId=<ENTERAPP_ID_HERE>&advertising_id=<device_GAID>&appAttributionKey=<ENTER_APP_KEY_HERE>



iOS

https://api.moengage.com/v1/installInfo?publisher_name=<publisher_name_of_install>&campaign_name=<campaign_name_of_install>&src=branch&appId=<ENTERAPP_ID_HERE>&idfv=<device_idfv>&appAttributionKey=<ENTER_APP_KEY_HERE>



Details about the API Params -

Key Value
publisher_name Publisher name of the install
campaign_name Campaign name of the install
src branch
appID App ID of your MoEngage account. You can find this by navigating to Settings -> App Settings
advertising_id (for android only) Google Advertising Id of the device on which Install was detected
idfv (for iOS only) IDFV of the iOS device on which Install was detected
appAttributionKey Available on MoEngage dashboard by navigating to Settings -> Analytics -> Attribution

Frequently Asked Questions

Q. Can I see the install data from Facebook in MoEngage?
A. According to Facebook data sharing policies, the install data from Facebook can only be seen in Branch and not sent to any other platforms. These would be seen as Organic Installs in MoEngage. You could alternatively use our APIs to send Facebook data to MoEngage separately.
