Amazon Redshift


Amazon Redshift is a fast and powerful, fully managed, petabyte-scale data warehouse service that forms part of the larger cloud-computing platform Amazon Web Services.

MoEngage <> Redshift

The MoEngage and Redshift integration exports Campaign Interaction Events data directly to your Amazon Redshift cluster.




  • Ensure you have an Amazon Web Services account with permission to create/edit Redshift clusters, roles, and policies.
  • Optional: To create a new user, you need to have access to create a new user in your Redshift Cluster.

Step 1: Make sure your Redshift cluster is publicly accessible

Make sure your Redshift Cluster has the "Publicly Accessible" setting turned on.

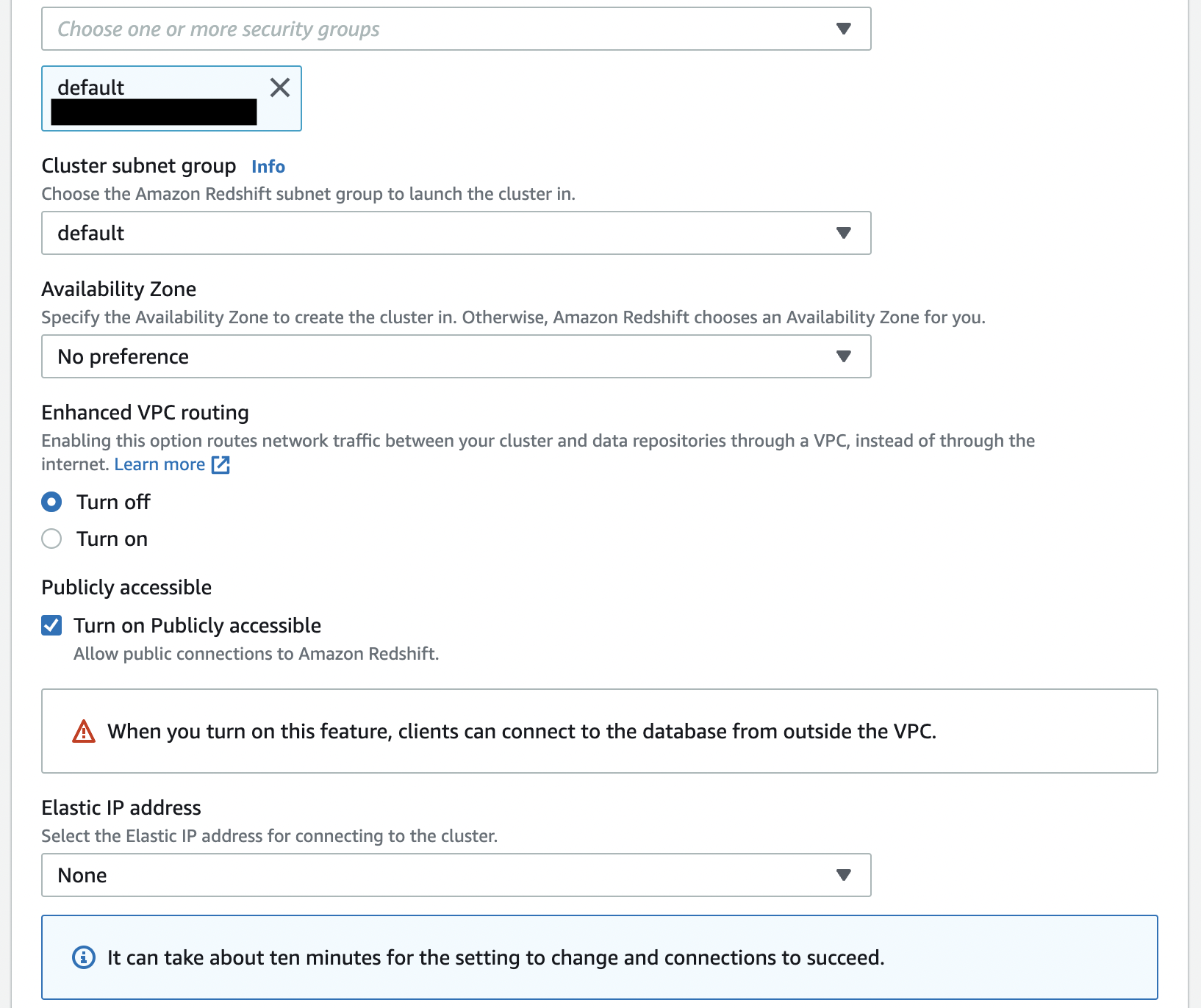

  • When creating a new Redshift Cluster, under the "Network and Security" section, select the "Turn on Publicly accessible" option.
  • If you already have a Redshift cluster, under the Properties tab, look for Network and Security section. Click on the "Edit" button.

    In the properties, turn on publicly accessible and then save

Step 2: Create a new database user for MoEngage

We will connect to your Redshift cluster using the credentials you provide. It is recommended to create a new user with limited permissions just for MoEngage. You can also provide an existing user's credentials. To create a new dedicated user, run the below commands in your Redshift cluster:

-- create a new user with a strong password
CREATE USER <username> PASSWORD <password>;
-- create a new schema where MoEngage will dump data
-- you can skip this if you want to use existing schema
-- grant create access on the above schema or existing schema
GRANT CREATE, USAGE ON SCHEMA <schema_name> TO <username>;
You can also use an existing schema. MoEngage will create tables in the schema you provide while setting up the connection on the App Marketplace.

Step 3: Allow MoEngage IPs to access your cluster

You can either choose to create a new security group or edit your existing one.

Create a new Security Group

From your EC2 Console, under "Network & Security", open the Security Groups page. Click on the "Create security group" button.

  1. Give your Security Group a name, and an optional description.
  2. Select the VPC (by default, it is already selected).
  3. Add a new inbound rule with the following details:
Property Value
Type Redshift
Protocol TCP
Port range 5439

From the dropdown, select Custom.

In the CIDR block: Depending on your MoEngage Dashboard's data center, you need to enter the corresponding CIDR. Refer to the table below.

Description Give an optional description.

The correct IP address to enter in the "source" field depends on your MoEngage Data Center region:

Data Center Region CIDR block

You only need to add one inbound rule. For example, if you're based in MoEngage's DC-01 servers, you need to add just the first CIDR block:


  1. Leave the outbound rules empty.
  2. Click on "Create security group" when done.

Edit an existing Security Group

From your EC2 Console, under "Network & Security", open the Security Groups page. From the list of your Security Groups, open the one you want to edit.

  1. Click on the "Actions" button on the security group page and select "Edit inbound rules".
  2. Add a new inbound rule according to the table provided above.
  3. Click "Save rules" when done.

Attach the Security Group to your Redshift Cluster

  1. From your Redshift Console, open your Redshift cluster. Go to the Properties tab.
  2. In the "Network & Security settings" section, click on the "Edit" button.
  3. Under the VPC security groups, select the Security Group you just created/edited.
  4. Click "Save changes" when done.

Step 4: Create a new IAM Policy

You need to create a new IAM Policy that will allow us to transfer data from S3 to your Redshift cluster.


  1. From the IAM Console, under Access Management, go to Policies. Click on the "Create policy" button.
  2. On the Create Policy page, switch to the JSON tab and paste the following policy:
        "Version": "2012-10-17",
        "Statement": [
                "Sid": "VisualEditor1",
                "Effect": "Allow",
                "Action": [
                "Resource": [ "<bucket-arn>",
    The value of <bucket-arn> will change based on your MoEngage Data Center Region:
    Data Center Region <bucket-arn> Resource Array
    DC-01 arn:aws:s3:::moe-warehouse-exports-us-east-1 "Resource": ["arn:aws:s3:::moe-warehouse-exports-us-east-1", "arn:aws:s3:::moe-warehouse-exports-us-east-1/*"]
    DC-02 arn:aws:s3:::moe-warehouse-exports-eu-central-1 "Resource": ["arn:aws:s3:::moe-warehouse-exports-eu-central-1", "arn:aws:s3:::moe-warehouse-exports-eu-central-1/*"]
    DC-03 arn:aws:s3:::moe-warehouse-exports-ap-south-1 "Resource": ["arn:aws:s3:::moe-warehouse-exports-ap-south-1", "arn:aws:s3:::moe-warehouse-exports-ap-south-1/*"]
    DC-04 arn:aws:s3:::moe-warehouse-exports-us-east-2 "Resource": ["arn:aws:s3:::moe-warehouse-exports-us-east-2", "arn:aws:s3:::moe-warehouse-exports-us-east-2/*"]
    Just replace the <bucket-arn> with the one corresponding to your MoEngage Data Center region.

    Click "Next" and optionally, add tags. Then click on "Next: Review".
  3. Give the Policy a name, and an optional description. Click "Create policy" when ready.reviewpolicy.png

Step 5: Create a new Redshift IAM role

This role will allow our servers to write data to your Redshift clusters.

  1. From the IAM Console, under Access Management, go to Roles. Click on the "Create role" button.
  2. Choose the Trusted entity type as "AWS service". Under Use Case, select "Redshift" from "Use cases for other AWS services". Under the types of Redshift use cases, select "Redshift - Customizable". Click "Next" when ready.
  3. In the next step, select the policy that you created in Step 4. Click Next when done.
  4. Give your role a name, and review if you have attached the correct policy that you made earlier. Click on Create Role when ready.

Step 6: Attach this role to your Redshift cluster

From the Redshift Console, open your Redshift cluster.

  1. Under the Properties tab, go to the "Associated IAM roles" section.

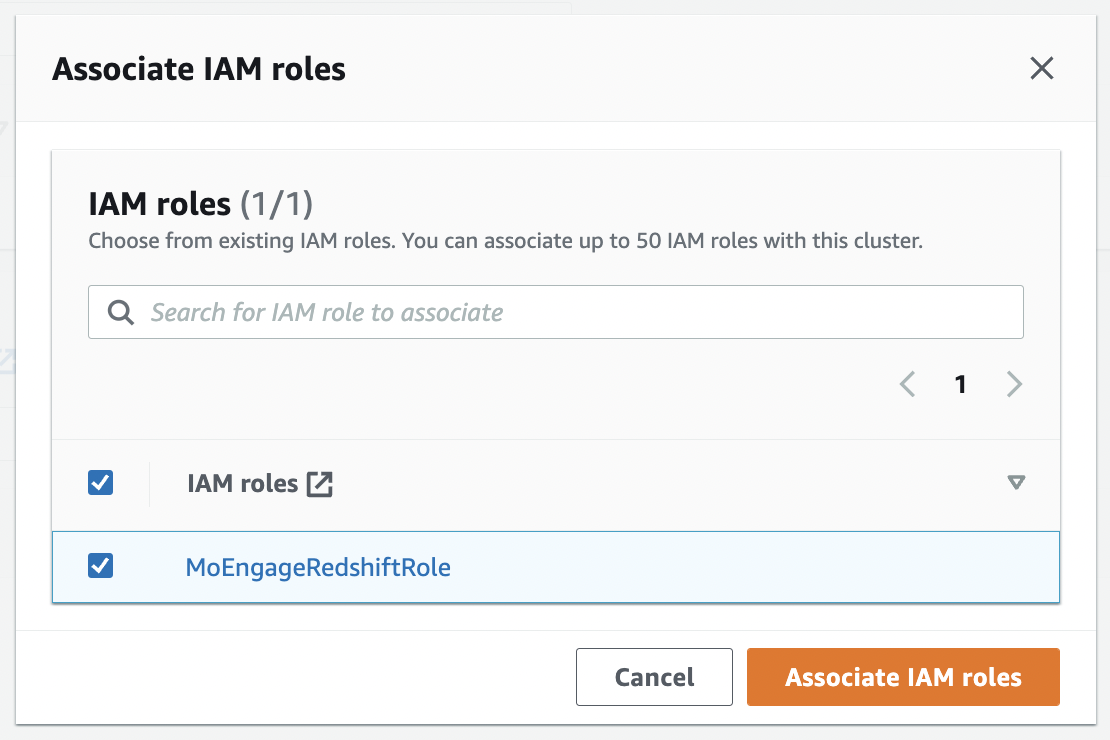

  2. Click on the "Manage IAM roles" button, and then select the "Associate IAM roles" option.
  3. From the popup modal, select the Role that you just created in Step 5.


  1. Click on "Associate IAM roles" to attach this role to your Redshift cluster.

Step 7: Enable the Redshift Integration on the MoEngage App Marketplace

  1. On your MoEngage Dashboard, go to the App Marketplace.
  2. Search for "Redshift".
  3. Go to the "Integrate" tab, and click on "+ Add Integration".


  1. Fill out the connection details of your Redshift cluster.



Field Description Example
Connection Name Give this connection an identifiable name. My Redshift Instance 1
Host Name

On your AWS Console, navigate to your Redshift cluster. Under "General information", the hostname is listed as your Redshift endpoint. Paste the part before the colon ":".

For example, if the Endpoint is then your Host Name will be


Format should be

Enter your port number. On your AWS Console, navigate to your Redshift cluster. Under the Properties tab, find your port number and database name in the "Database configurations".

By default, the Redshift port number is 5439.



Enter the username you want MoEngage to connect as. This can either be an existing user, or the one you created in Step 2.


Enter the password of the database user.


Enter the ARN of the IAM Role you created in Step 5. To find the ARN, on your AWS Console, go to IAM Console.

In the side menu, under Access Management, click on Roles. Select the IAM Role you created in Step 5. Under the Summary section, you will find the ARN listed. Copy and paste it into the input field.


Format should be
Export into schema

MoEngage will create tables in the schema you provide. Unless specifically configured, the usual value for schema name is "public".

Select events to export

Select which events you want to export to your Redshift cluster.

  1. Optionally, you can choose to test the connection. MoEngage will attempt to verify if the details you entered are correct. If there is an issue, an error will be shown that you can rectify.
  2. Once the test connection is successful, you can save the connection details and MoEngage will begin exporting events shortly to your Redshift cluster.

Verify if you are receiving the data correctly

MoEngage will create the following two tables in your schema:

  1. test_connection_moengage - We will use this table to verify if your connection details are valid from time to time.
  2. moengage_events - We will dump (append) all your events in this table.


You can verify if data is correctly flowing in your warehouse by querying moengage_events table:


Sample Table Structure

The final table definition will depend on the exact configurations of your exports.

Field Type NL
app_name character varying(256) NN
event_name character varying(256) NN
event_code character varying(256) NN
event_uuid character varying(256) NN
event_time bigint NN
event_type character varying(256) NN
event_source character varying(256) NN
uid character varying(256) NULL
user_attributes_moengage_user_id character varying(256) NULL
device_attributes_moengage_device_id character varying(256) NULL
push_id character varying(512) NULL
email_address character varying(256) NULL
mobile_number character varying(256) NULL
event_attributes_app_version character varying(256) NULL
event_attributes_sdk_version character varying(256) NULL
event_attributes_platform character varying(256) NULL
event_attributes_campaign_id character varying(256) NULL
event_attributes_campaign_name character varying(256) NULL
event_attributes_campaign_type character varying(256) NULL
event_attributes_campaign_channel character varying(256) NULL
event_attributes_readable_campaign_id character varying(256) NULL
event_attributes_parent_campaign_id character varying(256) NULL
event_attributes_parent_flow_id character varying(256) NULL
event_attributes_parent_flow_name character varying(256) NULL
event_attributes_variation_id character varying(256) NULL
event_attributes_locale_id character varying(256) NULL
event_attributes_locale_name character varying(256) NULL
event_attributes_url character varying(256) NULL
event_attributes_timestamp bigint NULL
event_attributes_first_session boolean NULL
event_attributes_logged_in_status character varying(256) NULL
event_attributes super NULL
user_attributes super NULL
device_attributes super NULL
created_at character varying(256) NULL

Export Frequency

We will dump the data at hourly intervals.
