Introduction

Konnectify is an integration platform that helps you connect your software stack, set automations between them to save your time and be more productive.

MoEngage <> Konnectify

The MoEngage <> Konnectify integration allows you to connect your MoEngage account to various 3rd party destinations listed on Konnectify's app marketplace, such as Salesforce, HubSpot, Stripe, etc., to automate various actions.

Use Cases

  1. Forward your Salesforce Leads to MoEngage and win them using timely campaigns
  2. Send data out of MoEngage to any app on Konnectify

Actions

With Konnectify Actions, you can perform various operations on the integrated apps like creating a new contact or lead, adding a new product, etc. The currently available Actions on MoEngage are:

  1. Create or update a user in MoEngage
  2. Create an event in MoEngage

Lookups

With Konnectify Lookups, you can effortlessly retrieve explicit information from integrated apps or systems. It can pull information like fetching product details, contact information, or records based on specific criteria.

Triggers

With MoEngage's Connecter Campaigns, you can use MoEngage to trigger your Konnectors for a multitude of purposes.

Integration

library_add_check

Prerequisites

  • Ensure you have access to your Konnectify account.



Adding your MoEngage account on Konnectify

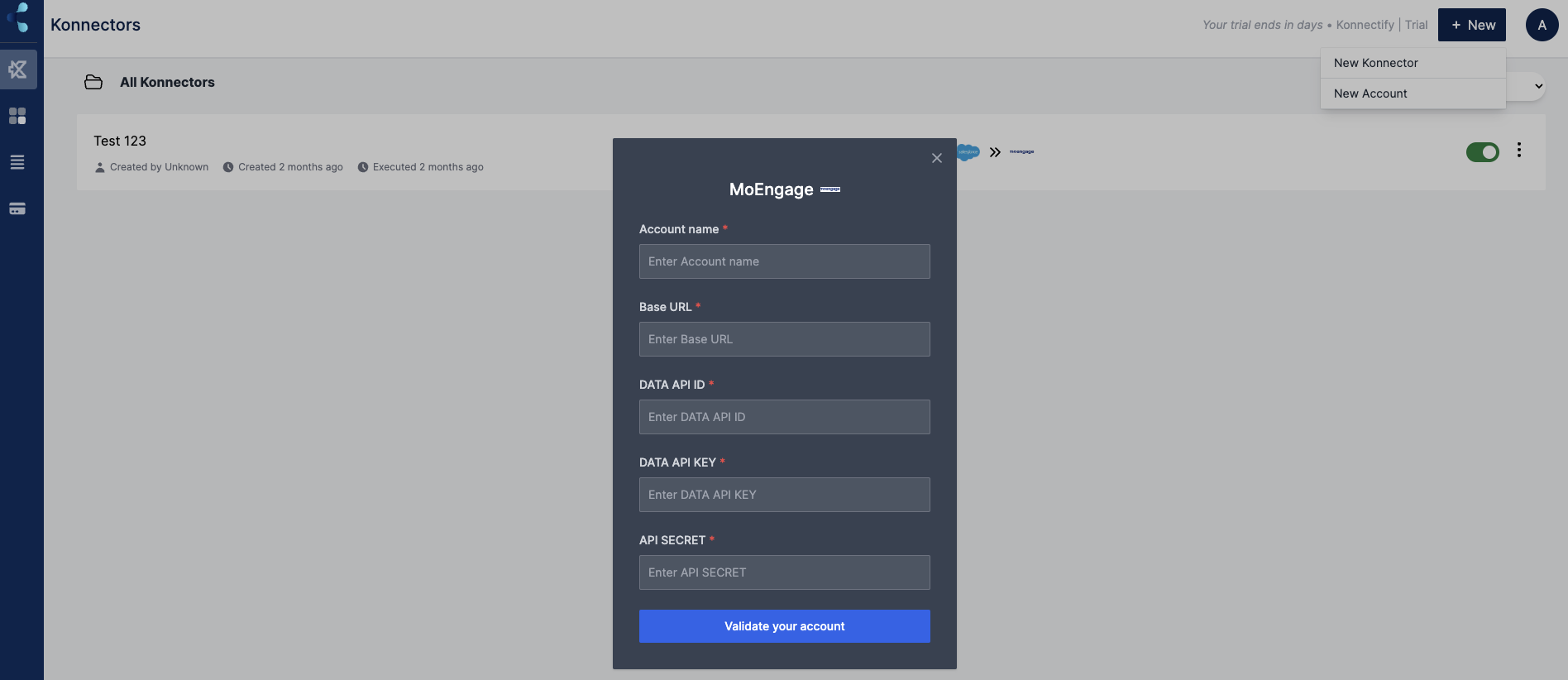

Konnectify must connect with your MoEngage account before you can start creating any new Konnectors. On your Konnectify dashboard,

  1. On the top right, click on + New >> New Account.
  2. Select "MoEngage" from the dropdown.
  3. You will need to enter your MoEngage app credentials:

Field Description
Account name

 Give this account a recognizable name.

Base URL

The URL of your MoEngage REST API Host. For more information about your REST API URL, please refer to Data centers in MoEngage.

Example: https://api-01.moengage.com

DATA API ID

Type or copy and paste the Data API ID. The Data API ID and the App ID of your MoEngage account are the same.

The App ID of your MoEngage account is available in the following navigations in the revamped and old UIs:

  1. Revamped UI:  Settings -> Account -> APIs -> App ID.
  2. Old UI: You can find this by navigating to Settings -> App Settings -> APIs -> Data API Settings.

The Data API ID and the App ID of your MoEngage account are the same.

DATA API KEY

Type or copy and paste the Data API Key.

The Data API key of your MoEngage account is available in the following navigations in the revamped and old UIs:

  1. Revamped UI:  Settings -> App Settings -> APIs -> API Keys -> Data
  2. Old UI: You can find this by navigating to Settings -> App Settings -> APIs -> Data API Settings.
API SECRET

Same as your Data API Key.

  1. Click on "Validate your account" to test the connection and then save your account.

Create a new Konnector

In the following example, we will be sending Leads from Salesforce to MoEngage. These users can then be used for targeting in MoEngage campaigns.

Step 1: Create a new Salesforce trigger

  1. On the top right, click on + New >> New Konnector.
  2. Select "Salesforce" as the Trigger app.
  3. If you have not connected to Salesforce earlier, you will be prompted to enter your Salesforce account details. Validate your account and then save it. If you already have an account, select your the account you want to fetch new leads from.

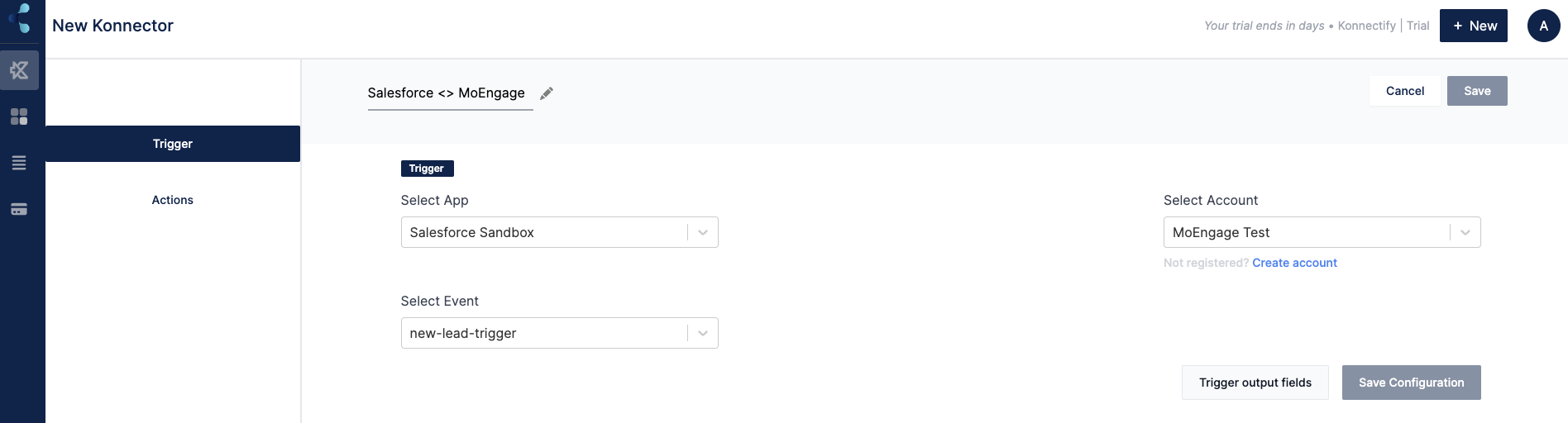

  4. Select the trigger event as "new-lead-trigger":

  1. Click on "Trigger output fields" to fetch a sample lead from Salesforce.
  2. Once you have fetched a sample lead, click on "Save configuration".

Step 2: Create a new Action

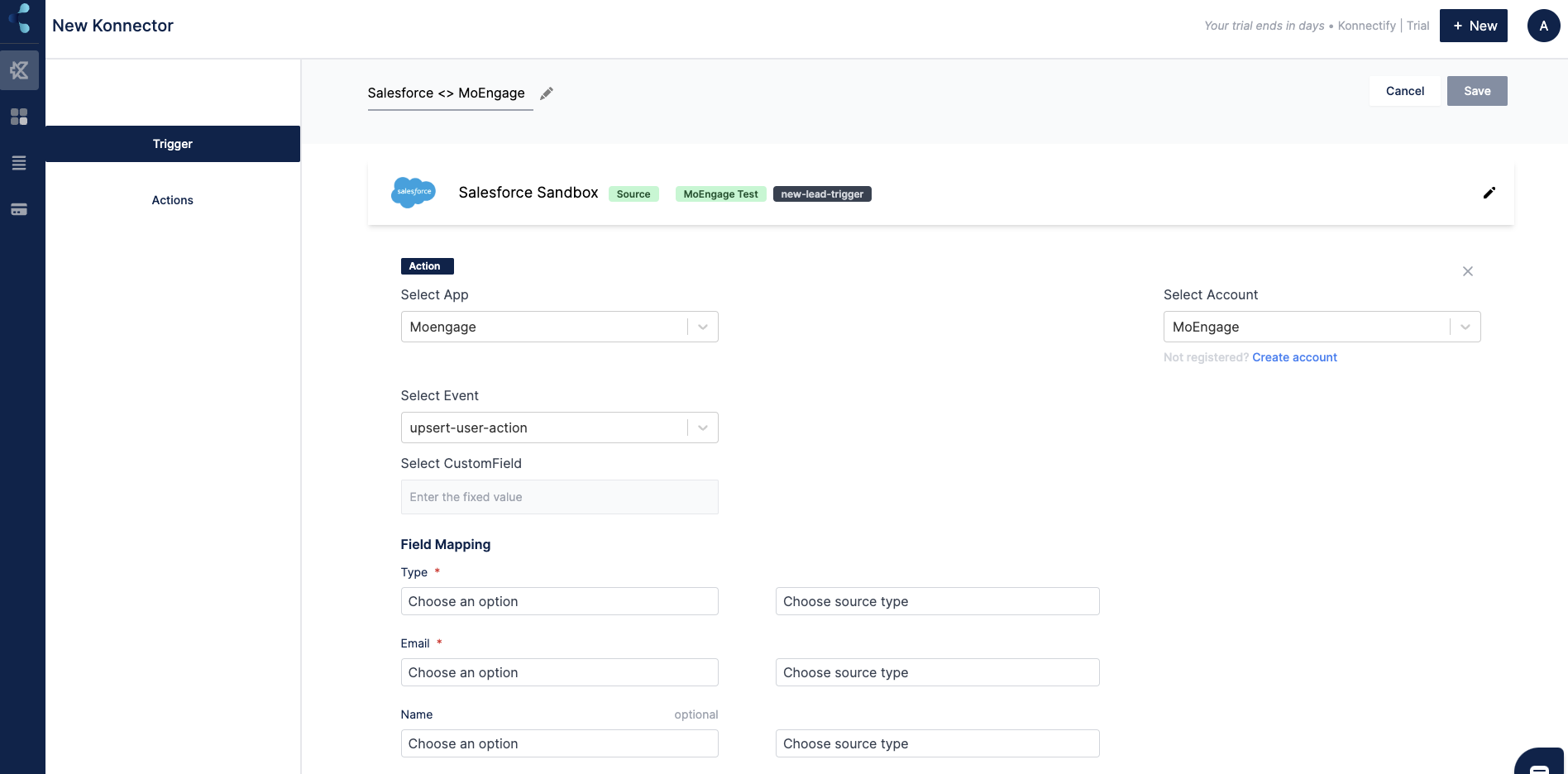

  1. On your Konnector page, click on "+ Add Action".
  2. Select "MoEngage" app.
  3. Select the MoEngage account you added earlier.
  4. Select the event as "upsert-user-action".



For each of the mapping, you can select from two options:

  • Source: You can map fields from earlier triggers or lookups. Select the trigger from which you want to map this value.
  • Fixed: If you want to map a fixed value, select this option and enter the value that you want to map.
Field Description
Type

Select the type "Fixed" and enter the fixed value as "customer".

Email The unique identifier is used to identify/create a user in MoEngage.
Name Full name of the user.
First_Name First name of the user.
Last_Name Last name of the user.
Age

Age of the user

Gender

The gender of the user

Mobile

Mobile Number of the user. For example, 918888444411

Platform

The platform of the user: ANDROID, IOS, etc.

Active

Value is based on the active platforms of the user. Select the type "Fixed" and enter the fixed value as either "true" or "false.

You can also map custom attributes. To add custom attributes, type the custom attribute names in a comma-separated list in the "Select CustomField" textbox. Example: "field1,field2".

Step 3: Save your Konnector

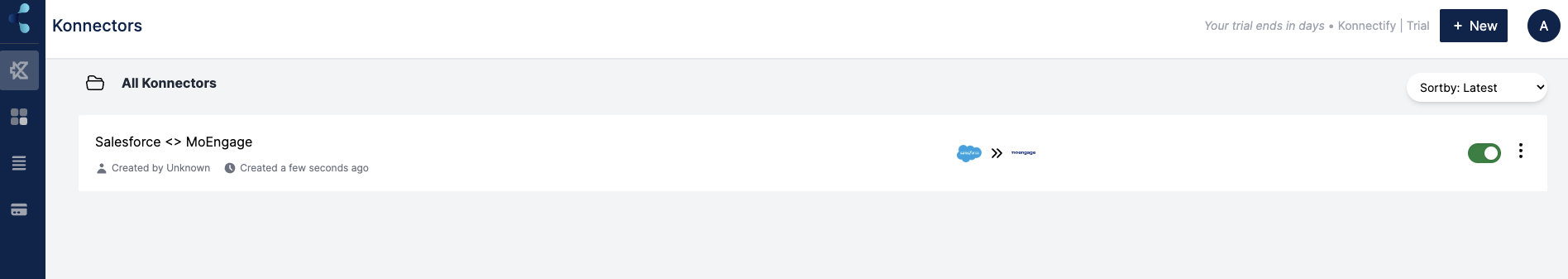

Once you have set up your Konenctor, give it a name and click on "Save" to save and enable this Konnector:



After you have enabled the Konnector, any new leads in Salesforce CRM will be directly imported to MoEngage as new users. You can set up similar mappings for other apps as well.

Use MoEngage as a trigger

With MoEngage Connector Campaigns, you can send out data to many apps on Konnectify. In the following example, we will be sending users from MoEngage to Salesforce. These users will be added to Salesforce CRM each time they submit a form.

Step 1: Create a new Webhook trigger

  1. On the top right, click on + New >> New Konnector.
  2. Select "Webhook" as the Trigger app.
  3. Your Konnector type will be changed to "Webhook based".

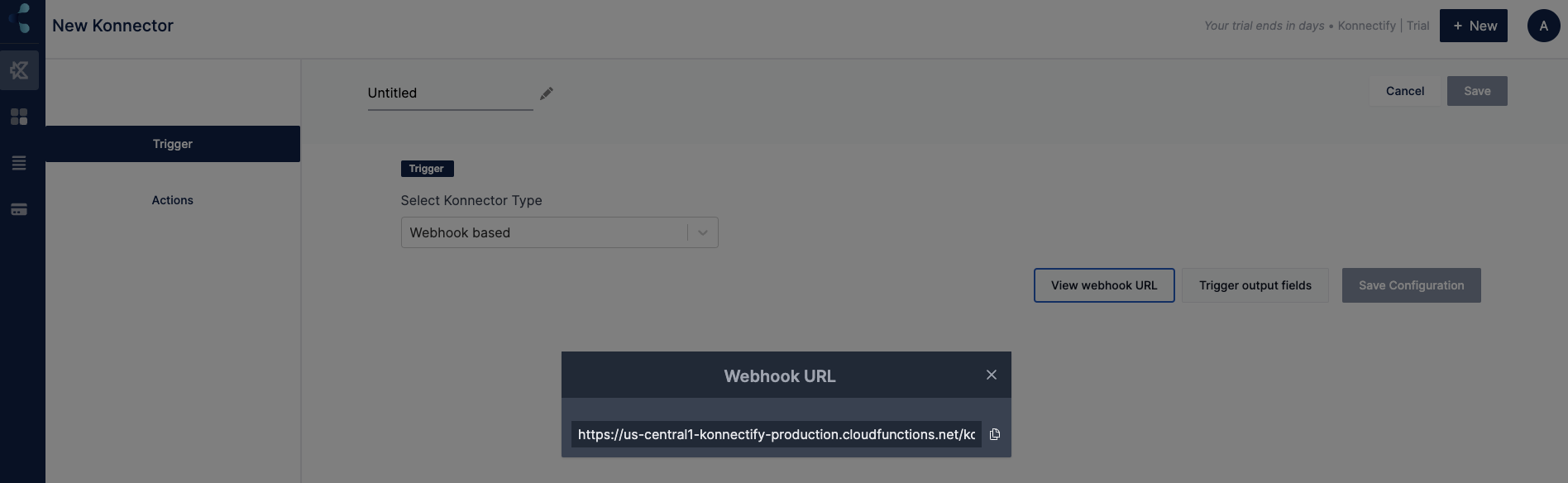

  4. Click on "Generate URL". This URL will be used to capture data from MoEngage. Copy this Webhook URL.

Step 2: Set up a new Connector Campaign on MoEngage

In order to proceed with the Konnector, you will need to now set up a Connector Campaign to the provided URL above.

  1. Navigate to MoEngage Dashboard.
  2. Use any one of the following options:
    1. On the All Campaigns page, click Create Campaign.
      The Create Campaign page is displayed.

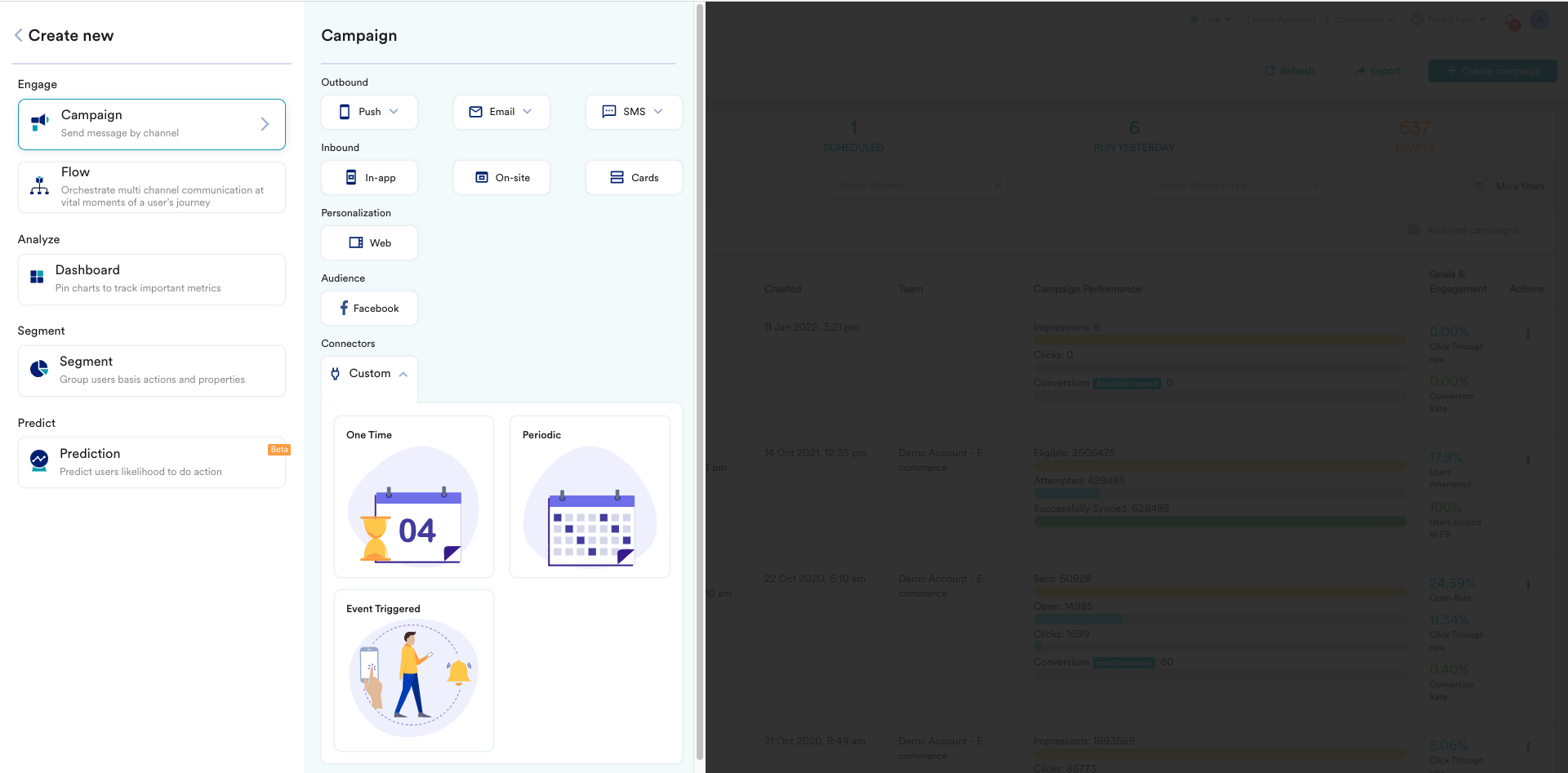

    2. Click Create New > Campaign.
      The Create Campaign page is displayed.
  3. Click Custom under Connectors.
  4. For the campaign delivery types, choose "Event-Triggered".
    • For more information about delivery types, refer to Delivery Types.

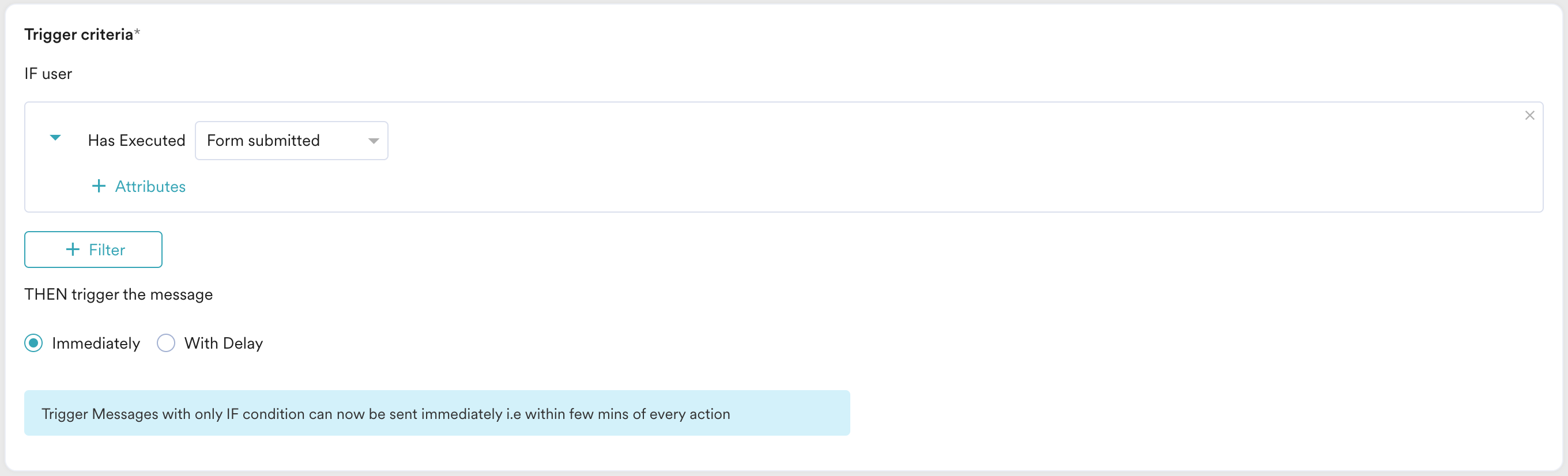

  5. On the next screen, give your Campaign a name, and select the Criteria as "Form submitted" (this is our user event, you can pick anything as per your use case).
  6. For trigger, choose "immediately".

  1. For audience, let us choose "All users" for this use case. Click "next" when satisfied.

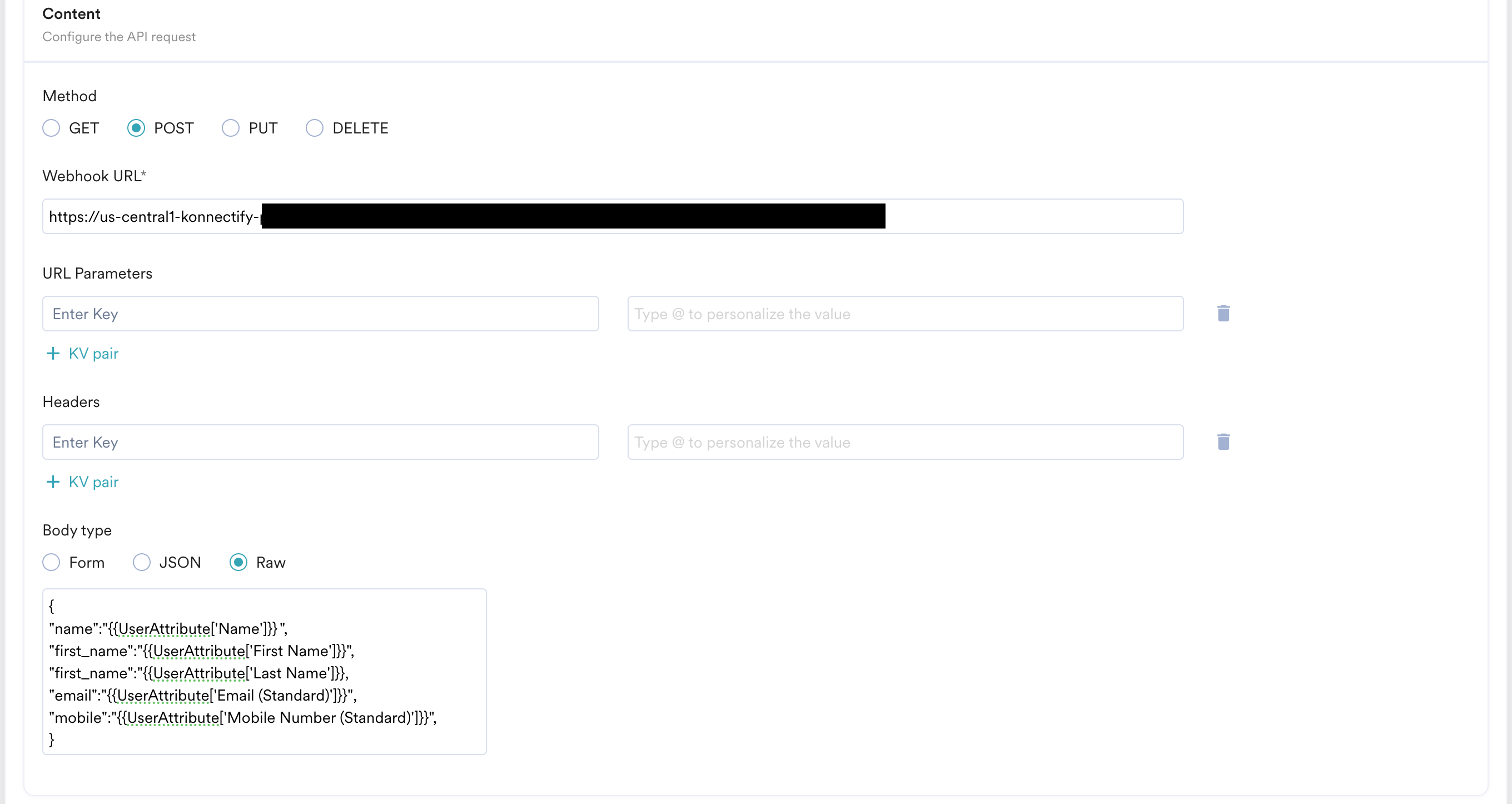

  2. On the content screen, we will define our payload and webhook URL we got from the previous step.
  3. Choose method as "POST".
  4. Enter the webhook URL you copied earlier.
  5. Define the headers and parameters as per your requirements. For this use case, we will just define our payload body- (you can type @ to insert personalised values as well)

  1. Now you need to test this webhook, scroll down and enter a test user's data and click on "test".

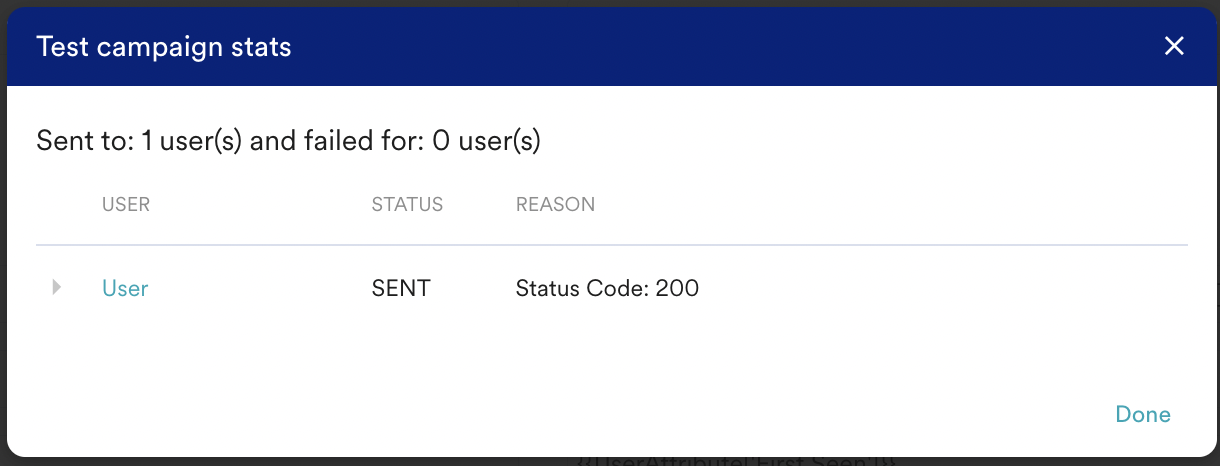

  2. You should see a new modal saying the test was successful:


  1. Now go back to the Konnectify dashboard.

Step 3: Capture webhook on Konnectify

Once you have sent a test campaign on MoEngage

  1. On your Konnectify dashboard, click on "Trigger output fields" to capture the response.
  2. Your sample data will be shown on Konnectify.
  3. Click on "Save configuration" to save this webhook.

Step 4: Create Salesforce as a new Action

  1. Click on "+ Add Action".
  2. Select "Salesforce" as the Action app.
  3. If you have not connected to Salesforce earlier, you will be prompted to enter your Salesforce account details. Validate your account and then save it. If you already have an account, select your the account you want to fetch new leads from.

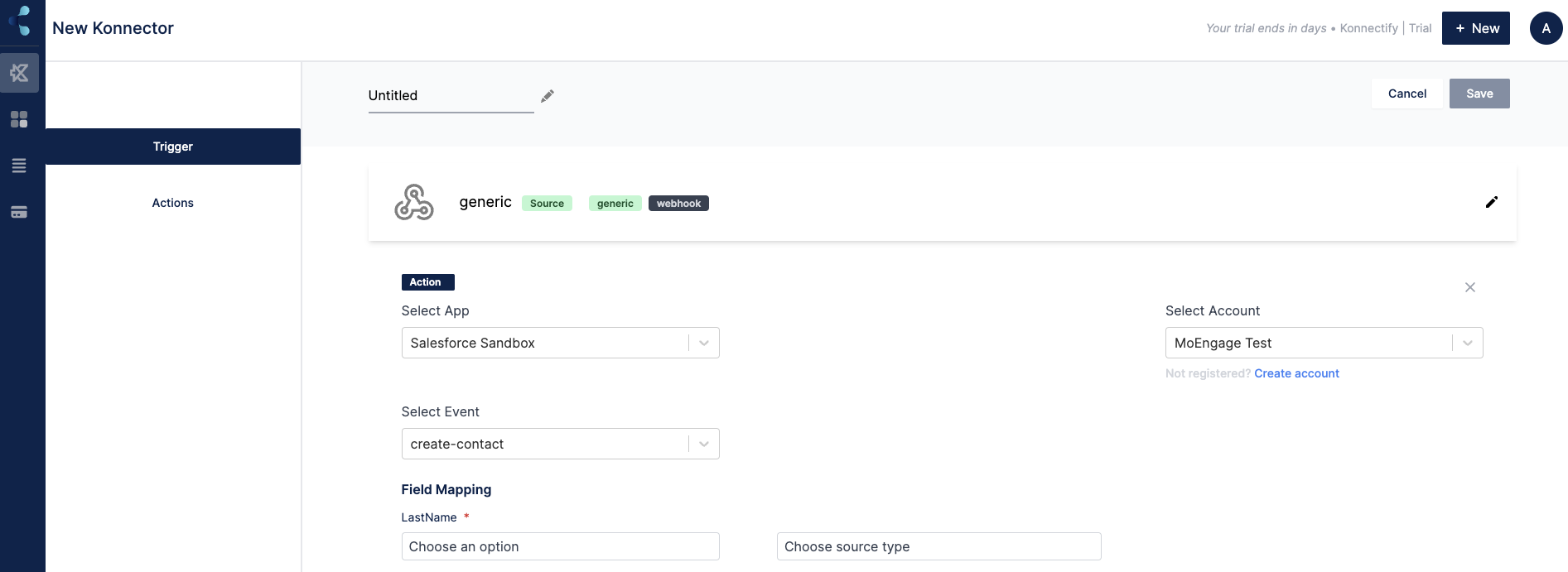

  4. Select the action event as "new-contact":

  1. Map your contact fields on Salesforce as per your requirements.
  2. Click on "Save" when done.

Step 5: Save your Konnector

Once you have set up your Konenctor, give it a name and click on "Save" to save and enable this Konnector:



After you have enabled the Konnector, any user who has submitted the form will be directly imported to Salesforce as a new contact. You can set up similar mappings for other apps as well.
