Introduction

Punchh is a loyalty and engagement platform that empowers brands to deliver omnichannel customer loyalty programs both in-store and online.

MoEngage <> Punchh

Using MoEngage and Punchh together, you can sync data between the two platforms to empower your loyalty and coupon workflows. With this integration, you can:

• Forward loyalty data from Punchh to MoEngage in real-time
• Capture new users inside MoEngage and send them to Punchh to create personalized loyalty programs for them
• Display dynamic coupon codes generated on Punchh inside MoEngage Campaigns

Integration

Forward events from Punchh to MoEngage

Step 1: Add external_source_id to Punchh users

Before you begin the integration, ensure you have set the external_source_id field when you create new users inside Punchh. This will act as the common identifier between the two platforms and will be synced to the ID field of MoEngage user profiles.

Punchh offers several endpoints for updating your users' external_source_ids. The Punchh help docs explain how to set them up for new and existing users.

Step 2: Get your MoEngage endpoint

Please reach to to your MoEngage Customer Success Manager to help you with get a dedicated endpoint that needs to setup in Punchh.

Step 3: Set up your endpoint as a webhook in Punchh

If you already have access to the Webhooks Manager,

1. On your Punchh Dashboard's Left Navigation >> Webhook Manager.


2. In the Webhooks section, an admin needs to click the Base URL button to set up the base URL and name. This base URL will be displayed while setting up the webhook. Your Base URL will depend on your MoEngage Data Center:

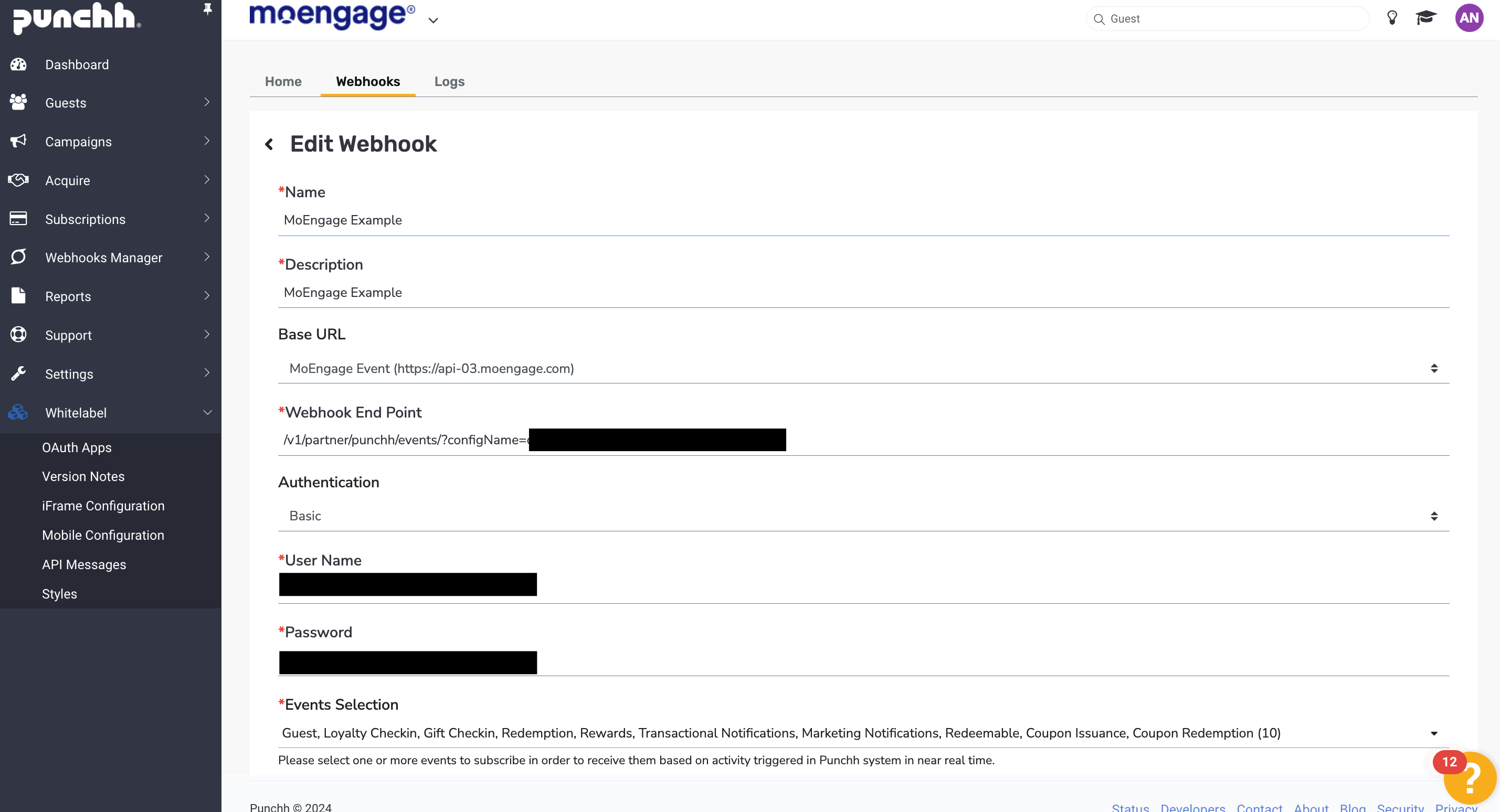

3.  In the Webhooks section, create a new webhook by clicking the Create Webhook button:

4. Click the Submit button to save it. In case of any issue, it will display an error message.
5. If verification is completed during creation, the webhook will be ready to receive the subscribed events with “Active” status. If verification is not successful, the status will remain “Inactive” and no data will be pushed to that webhook.
6. From the webhooks list, you can select another operation via the ellipsis button in the Actions column to test with some dummy event samples. You can also edit or delete webhooks from here and see logs specific to the selected webhook.

Events available to export to MoEngage

1. Users
2. Loyalty check-ins
3. Gift check-ins
4. Redemptions
5. Rewards
6. Redeemables
7. Marketing notifications
8. Transactional notifications
9. Coupons

An updated list of events that can be exported is found here.

Step 4: Find your events in MoEngage

Below is the meta data that is added to each of the events coming from Punchh:

Once the events are in MoEngage, you can create segments using MoEngage's powerful Segmentation capabilities and perform Analytics to gain even deeper actional insights.

Create users in Punchh from MoEngage

To create a connector campaign on MoEngage,

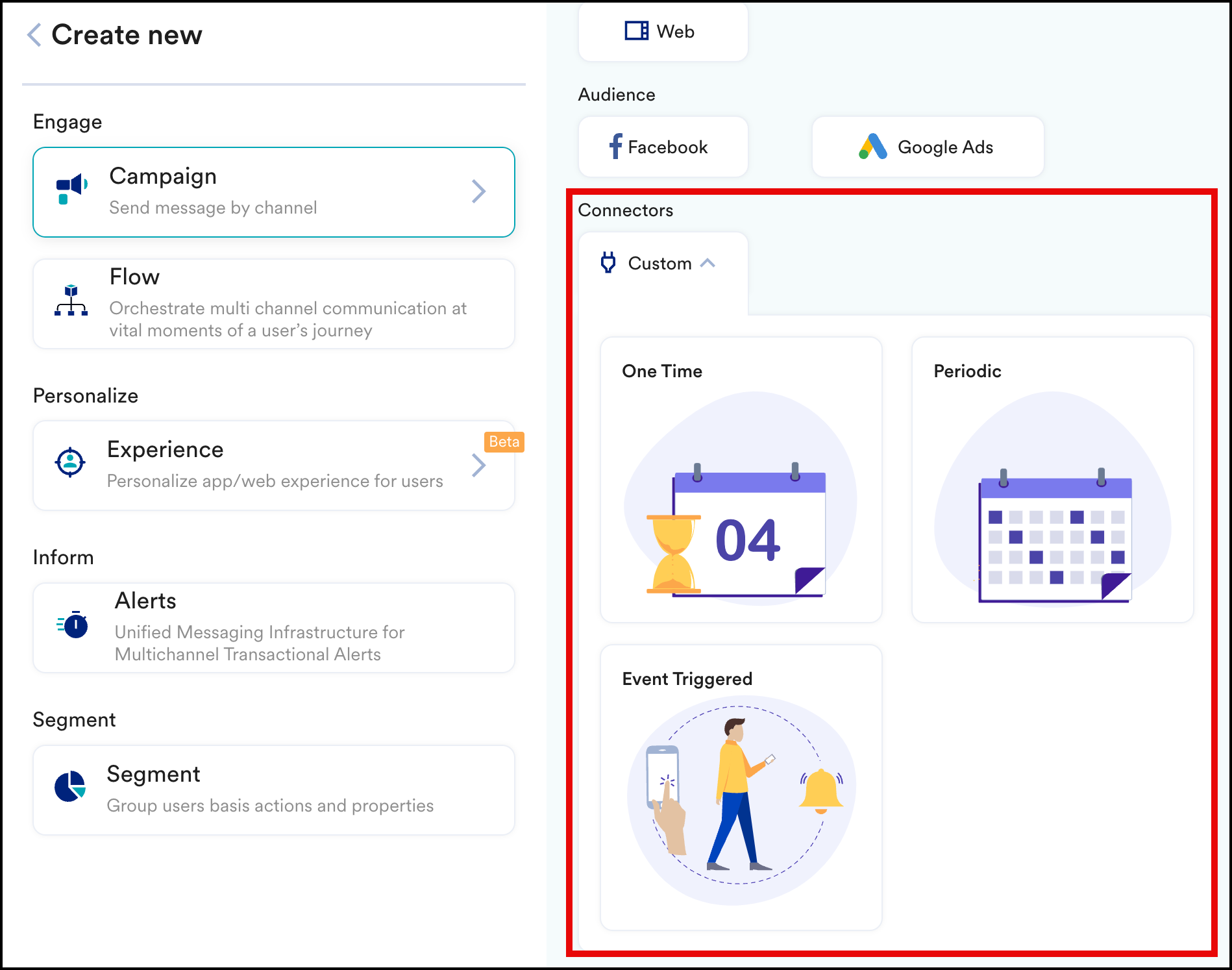

1. Navigate to Create Campaign > Connectors > Custom and choose the delivery type most suitable to your needs

2. On step 2 of the campaign

Call the Punchh Signup API

To create a new user on Punchh, use the POST method and configure the payload.

• Select the method as POST
• Headers:
  • Accept: application/json
  • Content-Type: application/json
  • User-Agent: {{ UserAttribute['User Agent'] }}
  • punchh-app-device-id: {{ UserAttribute['GAID'] }}
  • x-pch-digest: {% set payload = "{\"client\":\"CLIENT\",\"user\":{\"email\":\"{{UserAttribute['Email (Standard)']}}\",\"password\":\"{{UserAttribute['First Name']}}+xyz123\",\"first_name\":\"{{UserAttribute['First Name']}}\",\"last_name\":\"{{UserAttribute['Last Name']}}\",\"terms_and_conditions\":\"true\",\"zip_code\":\"{{UserAttribute['Last Known Pincode']}}\",\"birthday\":\"{{UserAttribute['Birthday']}}\",\"external_source\":\"customer_id\",\"external_source_id\":\"{{UserAttribute['Email (Standard)']}}\"}}" %}{% set base = "/api2/mobile/users" %}{% set sec = base + payload }{% set sig = sec|convertToSHA256NoSalt() %}{{ sig }}
• Add the endpoint as Webhook URL: https://<server_name>.punchh.com
/api2/mobile/users
• Body:

  Create contact

  {
        "client": "CLIENT",
        "user": {
              "email": "{{UserAttribute['Email (Standard)']}}",
              "password": "{{UserAttribute['First Name']}}+xyz123",
              "first_name": "{{UserAttribute['First Name']}}",
              "last_name": "{{UserAttribute['Last Name']}}",
              "terms_and_conditions": "true",
              "zip_code": "{{UserAttribute['Last Known Pincode']}}",
              "birthday": "{{UserAttribute['Birthday']}}",
              "external_source": "customer_id",
              "external_source_id": "{{UserAttribute['Email (Standard)']}}"
        }
  }

• Refer to the Punchh documentation for more information.

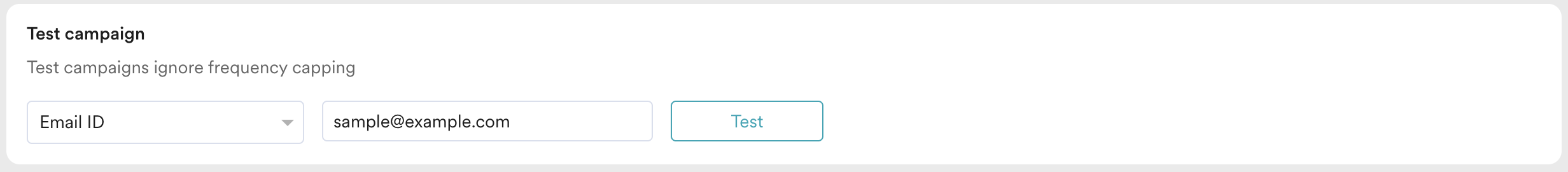

At this point, your campaign should be ready to test and send. You can also test your connector configuration using the Test functionality available in Step 2 of Create Connector Campaign.

You can go ahead and Publish the campaign.
