Google Tag Manager (GTM) Server Side

Introduction

Google Tag Manager is a free tool that enables marketers to install, store, and manage marketing tags without modifying website code, and instantly deploy tags on your website or mobile app from an easy-to-use web-based interface.

MoEngage <> Google Tag Manager

With the MoEngage and Google Tag Manager integration, you can forward the events captured on your GTM server to MoEngage without writing any code on your website.

Integration via GTM Server Side

library_add_check

Prerequisites

Ensure you have a Google Tag Manager account with permission to import templates and add new tags.

With the Google Tag Manager template built by MoEngage, you can forward your events from GTM to MoEngage.

Step 1: Download and import the MoEngage Tag

  1. Download the MoEngage tag. (right-click and Save).

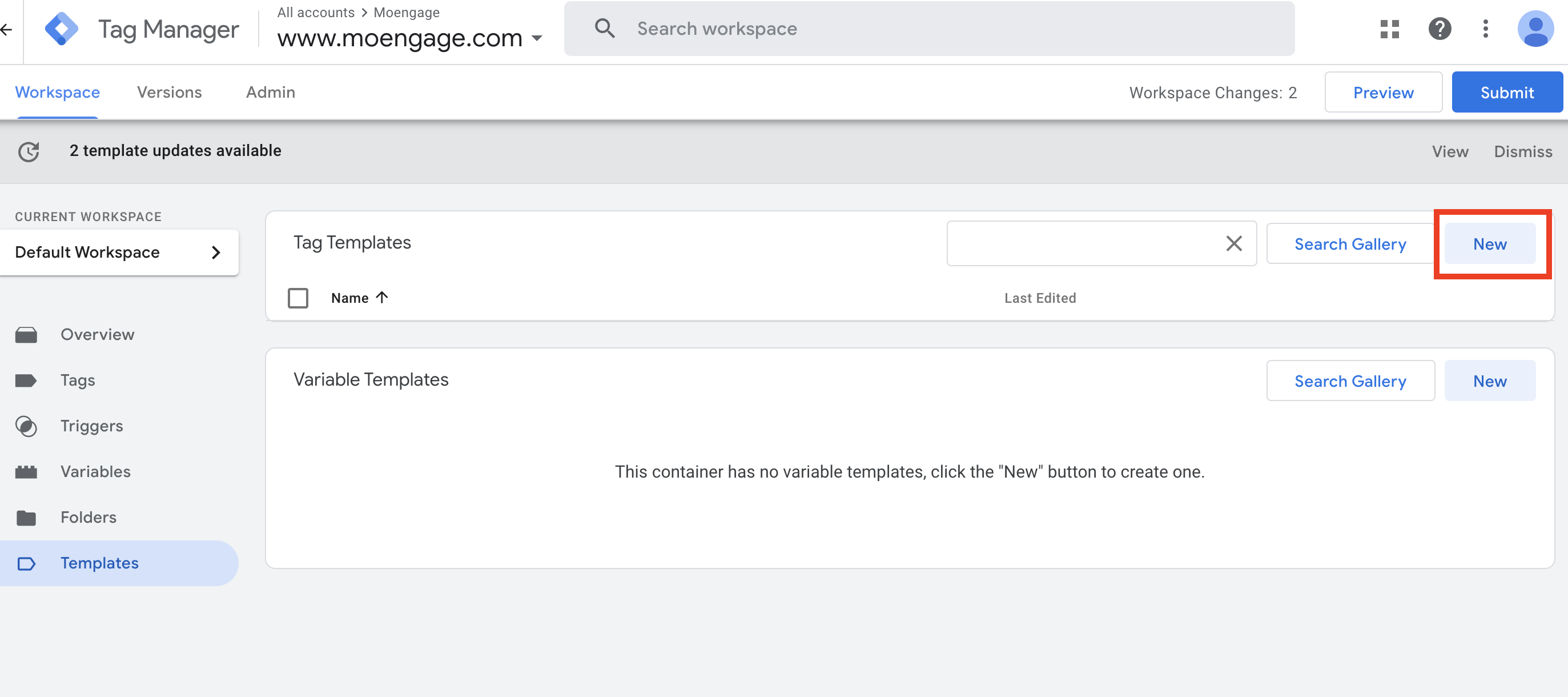

  2. To import the tag into your GTM workspace, go to the Templates screen from the left side menu.

Screenshot

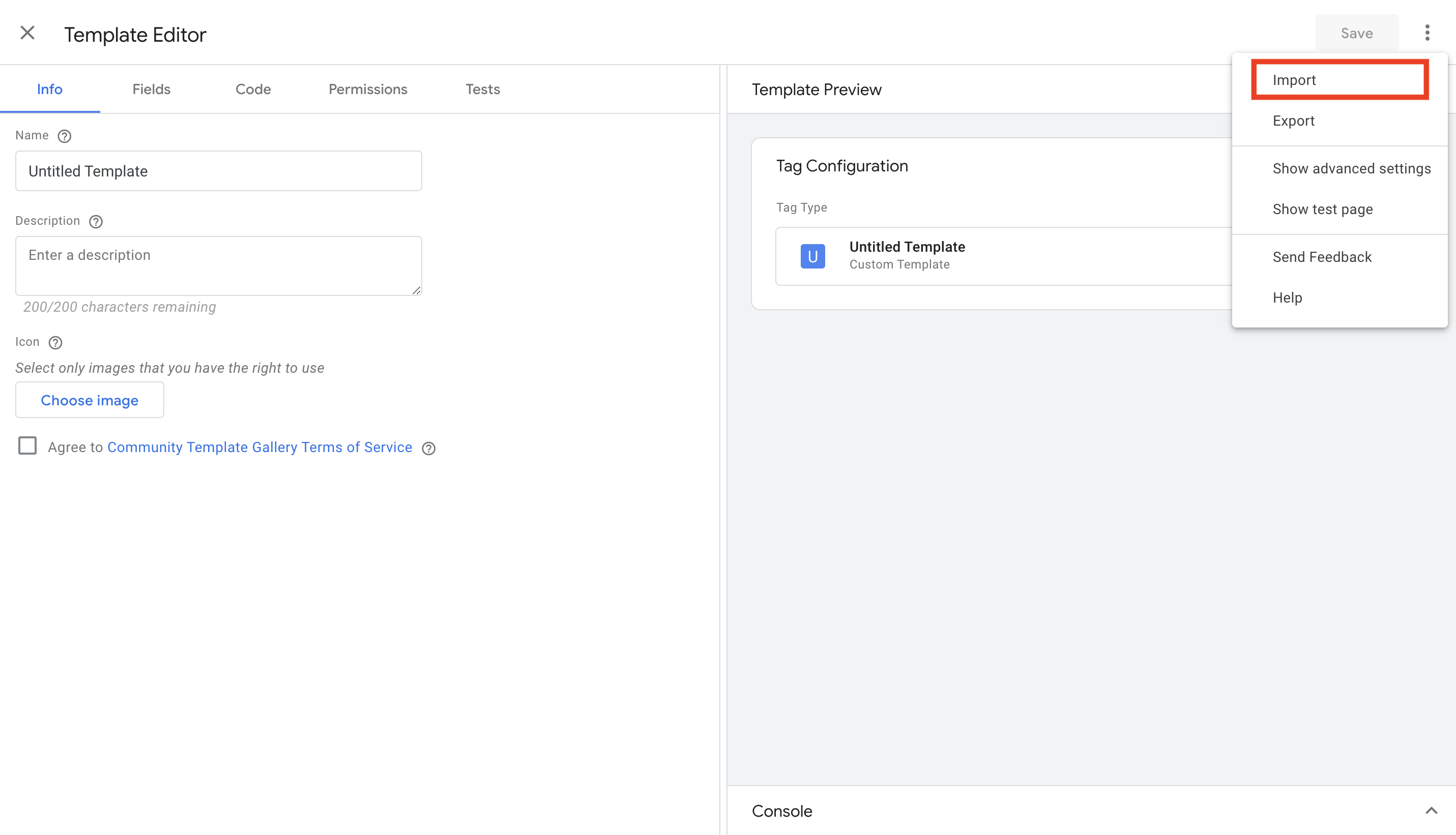

  1. Under Tag Templates, click on the "New" button >> Actions menu (top-right) >> Import. Select the MoEngage tag file you just downloaded.
  2. Click save when you see the MoEngage logo on the left.

Step 2: Select and configure the MoEngage Tag

The MoEngage Tag template lets you forward GTM events, update custom as well as standard user attributes inside MoEngage.

  1. On your GTM dashboard, click on Tags >> New.
  2. Click on Tag Configuration, and under "Custom" look for the MoEngage Tag.
  3. Setup the tag according to your needs.

Property Value
Select data center

Your MoEngage Data Center region (DC_X).

  • Dashboard-01 (DC-01)
  • Dashboard-02 (DC-02)
  • Dashboard-03 (DC-03)
  • Dashboard-04 (DC-04)
API ID

API ID is the App ID.

The App ID of your MoEngage account is available in the following navigations in the revamped and old UIs:

  1. Revamped UI:  Settings -> Account -> APIs -> App ID.
  2. Old UI: You can find this by navigating to Settings -> App Settings -> APIs -> Data API Settings.

The Data API ID and the App ID of your MoEngage account are the same.

API Key

API Key is the Data API Key.

The Data API key of your MoEngage account is available in the following navigations in the revamped and old UIs:

  1. Revamped UI:  Settings -> App Settings -> APIs -> API Keys -> Data
  2. Old UI: You can find this by navigating to Settings -> App Settings -> APIs -> Data API Settings.

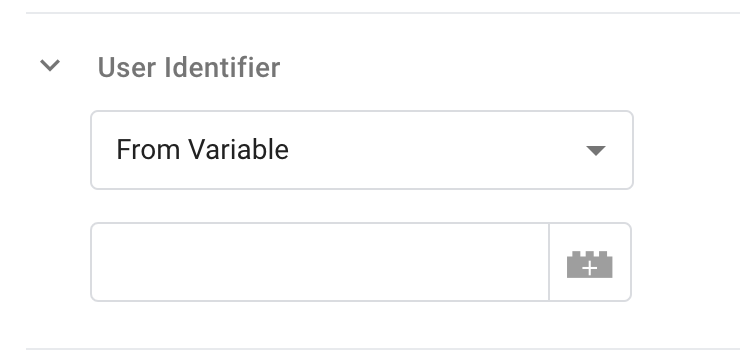

User Identifier

Here you need to map the user identifier to identify the user in MoEngage. You can map this value using multiple ways:

  • From Variable: Select this option if you want to use a GTM Variable as the user identifier value.
  • From Event Property: Select this option if you want to extract the user identifier from an event property. Enter the attribute key here, for example, user_id. Note that we can only pick values only from the root level keys. If you want to extract values of nested keys, please use GTM Variables and then select "From Variable" option.

Snowplow Event Mapping Options

You can leave this section as it is. If you're using a Snowplow client, we have additional options that you can use to ingest Snowplow events into MoEngage. Read more about this in our Snowplow integration guide.

Additional Event Mapping Options



Property Value
Include common event properties

Select this option if you want to automatically include the event properties from the common event data in GTM as event properties to MoEngage.

Additional Event Property Mapping Rules

You can select the keys you want to map as event properties inside MoEngage. Click on "Add Row" to add a new key mapping.

Specify the property key from your event data object in the "Event Property Key" and provide the name you would like to map it to under "MoEngage Mapped Key". If you leave the MoEngage Mapped Key field blank, we will not rename the key.

These properties will be stored as event properties in MoEngage.

Include common user properties Select this option if you want to automatically include the "user_data" properties from the common event data in GTM as user attributes to MoEngage.
Additional User Property Mapping Rules

You can select the keys you want to map as user attributes inside MoEngage. Click on "Add Row" to add a new key mapping.

Specify the property key from your event data object in the "User Property Key" and provide the name you would like to map it to under "MoEngage Mapped Key". If you leave the MoEngage Mapped Key field blank, we will not rename the key.

These attributes will update the user's attributes in MoEngage.

Additional Event Data

If you want to extract values from nested objects or arrays, you can create GTM Variables for the same and use this section to directly use the variable as an event attribute. Click on the "Add Row" button to add a new event attribute.



Property Value
Key

Specify the key you want to add to your event attributes.

Value

Here you can either enter a direct value of this event attribute or use a GTM Variable.

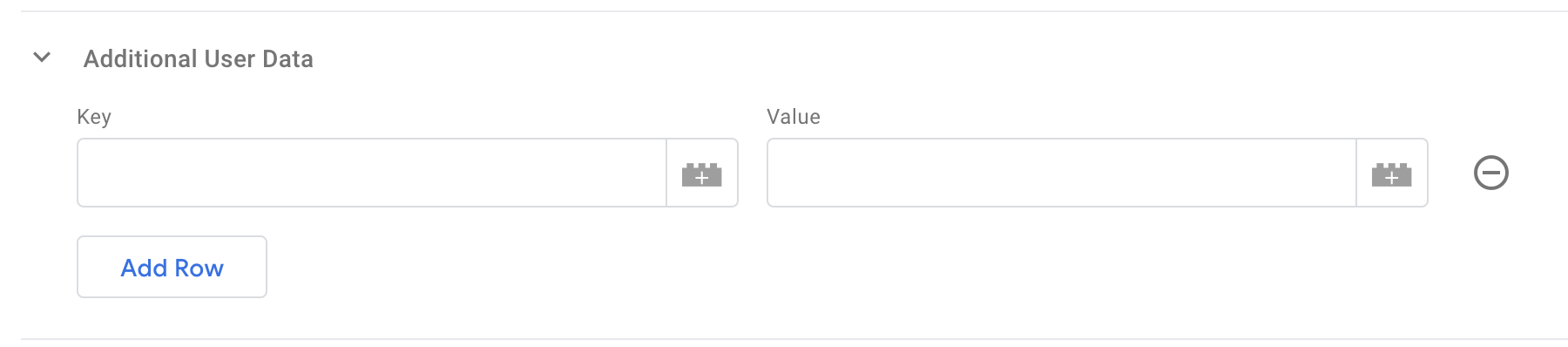

Additional User Data

You can also use the above method to extract values from nested objects or arrays and use this section to directly use the variable as a user attribute. Click on the "Add Row" button to add a new user attribute.



Property Value
Key

Specify the key you want to add to your user attributes.

Value

Here you can either enter a direct value of this user attribute or use a GTM Variable.

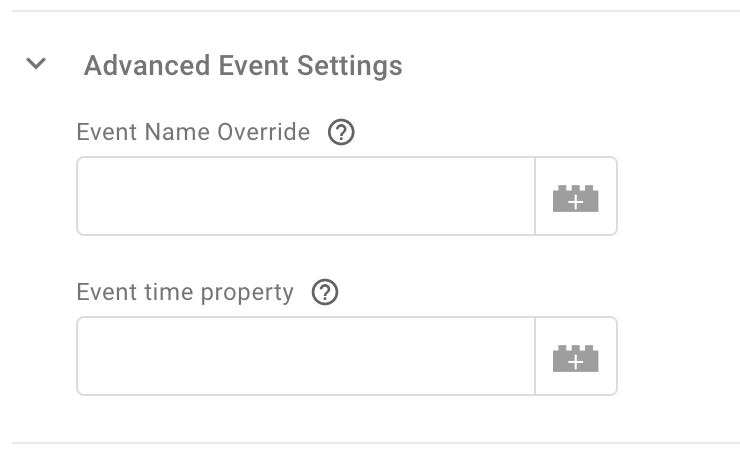

Advanced Event Settings

You can use this section to rename your event or change your event time.



Property Value
Event Name Override

If you want to rename the event that is ingested in MoEngage, type the new event name here. If you leave this blank, we will take the event name from the common event properties.

Event time property Specify the client event property to populate the event time (in ISO-8601 format) or leave it empty to use the current time.

Step 3: Select the trigger condition

Screenshot

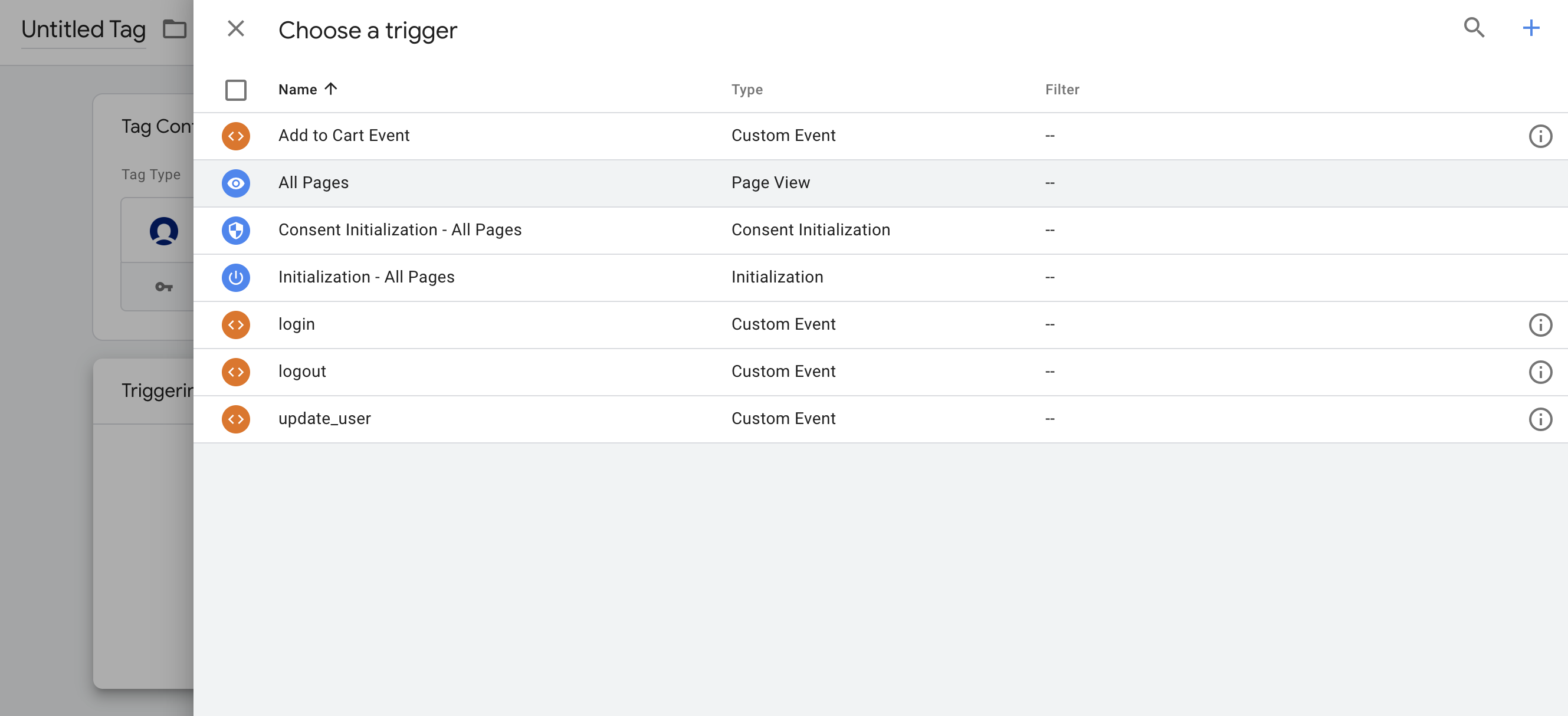

Under the "Triggering" section, you can select an event as a trigger or create a new trigger as per your requirements.

Click on "Save" when you're done with the tag configuration. You can preview the tag and verify if all your expected events are being ingested in MoEngage as per your configuration.

Integration via Web SDK

You can deploy the MoEngage Web SDK and leverage all its capabilities without writing any code on your website. Read more about setting up MoEngage Web SDK using MoEngage Templates on our help docs.
