Microsoft Dynamics 365 Sales is an enterprise CRM solution that manages customer relationships through contacts, leads, opportunities, and activities. This integration utilizes Power Automate to automatically push real-time sales data from Microsoft Dynamics 365 (D365) Sales to the MoEngage platform.

This automatic data synchronization helps marketing and support teams to trigger highly contextual and personalized engagement campaigns based on sales activities and the customer lifecycle.

MoEngage <> Microsoft Dynamics 365

The integration of D365 Sales and MoEngage enables enhanced alignment between marketing and sales. With this integration, you can:

• Synchronize Contacts, Leads, and Opportunities from D365 Sales to MoEngage.
• Import sales activities like Calls, Meetings, and Tasks as behavioral events.
• Capture custom attributes and relationships for comprehensive customer profiling.
• Trigger contextual campaigns based on sales interactions and opportunity lifecycle events.

Use Cases

Integrating Microsoft Dynamics 365 with MoEngage helps you solve the following use case:

• Lead-to-engagement: When a new Lead is created in D365, the complete lead data is automatically pushed to MoEngage, allowing you to instantly trigger a personalized welcome campaign and enroll the lead in relevant nurturing sequences based on their source or score.
• Contact synchronization: When Opportunity stages change (for example, from Qualify to Propose ), push updates to MoEngage to send targeted content, deal status notifications, or win/loss analysis.
• Sales activity events: When Calls, Meetings, or Tasks are logged, capture these as behavioral events in MoEngage for engagement attribution.
• CSAT (Customer Satisfaction Score) and re-engagement: When Opportunities are closed or deals are won, trigger satisfaction surveys or customer onboarding campaigns.

Sync Modules

The following table outlines the data synchronization type for each D365 Sales module:

Integration

Step 1: Get Your MoEngage Endpoint

To get a dedicated endpoint for your integration, please contact the MoEngage Support team. In your request, you must specify the common identifier used to link user profiles between MoEngage and the partner platform.

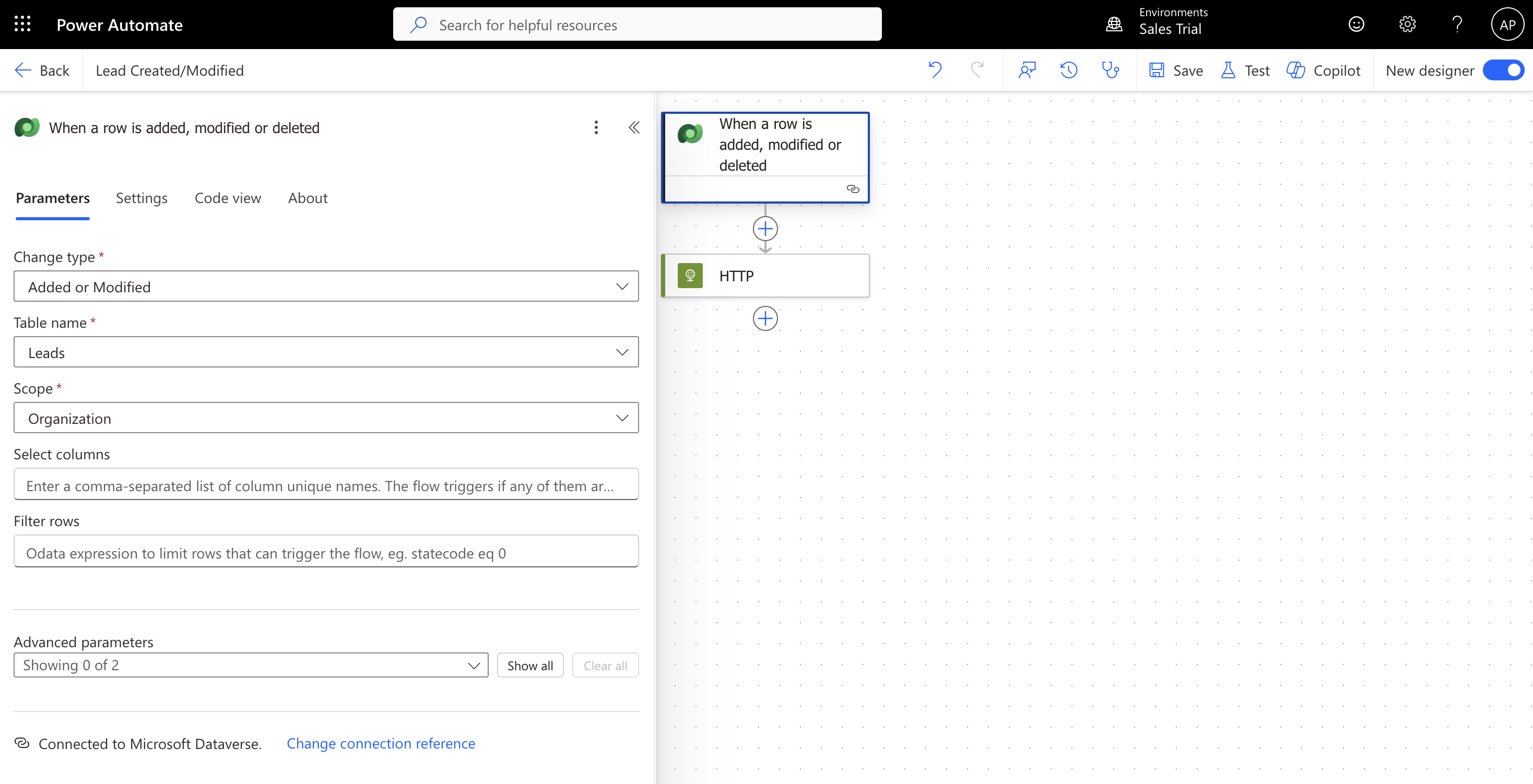

Step 2: Create a Power Automate Flow

To create a Power Automate flow, perform the following steps:

1. Open Power Automate.
2. Click Create > Automated Cloud Flow.
3. Provide the flow name. For example,D365 - Sync Contact to MoEngage.
4. Select the trigger When a row is added, modified, or deleted (Dataverse).
5. Configure the following trigger details:
   1. Table: Click the entity you want to sync (for example, Contact, Lead, Opportunity).
   2. Scope: Click Organization.
   3. Trigger on: Click Added or Modified.

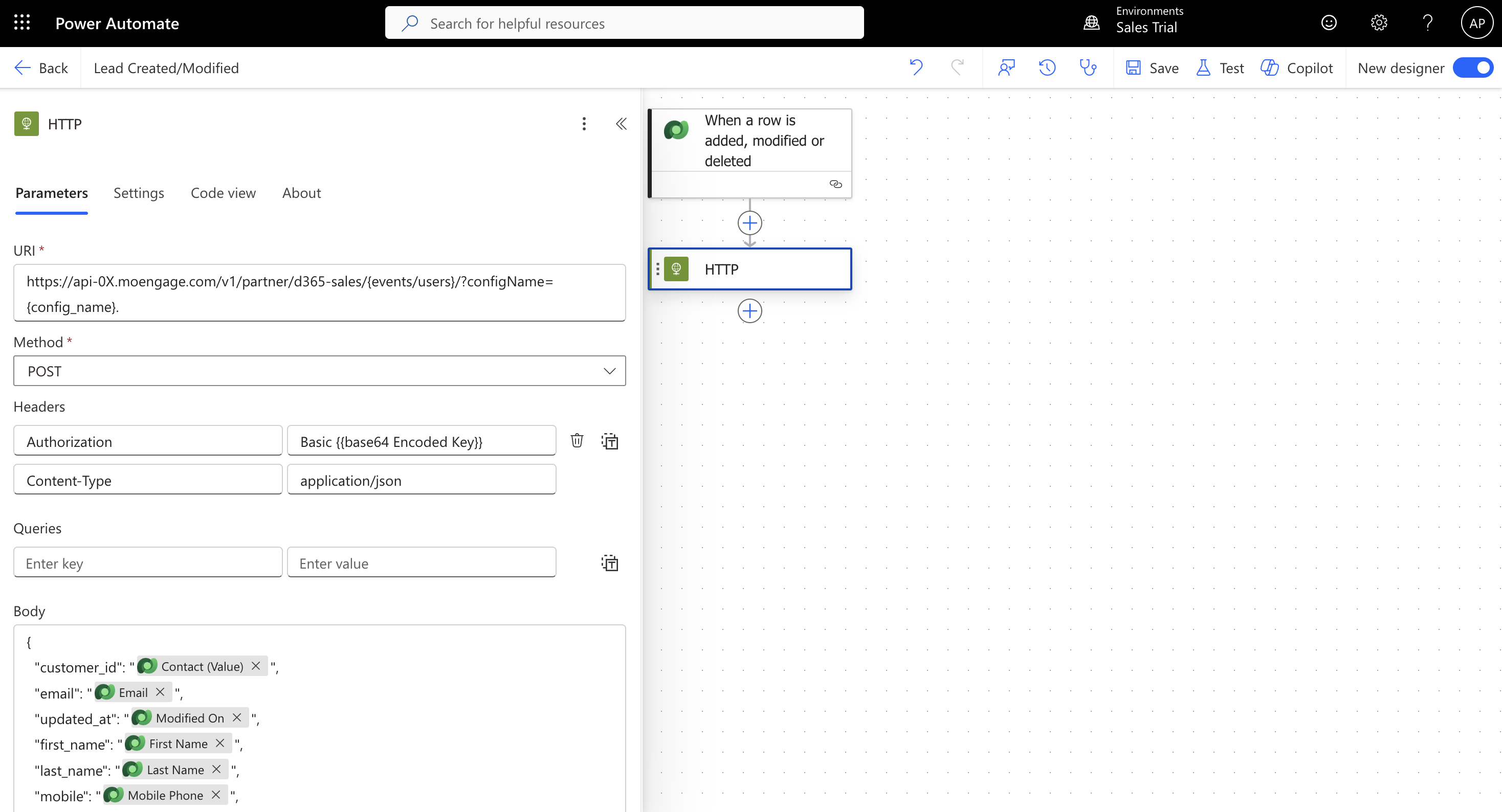

Step 3: Configure HTTP Webhook Action

To configure the HTTP Webhook action, perform the following steps:

1. Click New Step > HTTP.
2. Provide the following details:


   HTTP Webhook Section	Description
   Method	POST
   URL	Enter the dedicated Webhook URL provided by MoEngage in the following format: https://api-0X.moengage.com/v1/partner/d365-sales/{events/users}/?configName={config_name}.
   Custom Headers	Header(s) Value Content-Type application/json Authorization To authenticate your request, use the following format for the Authorization header: Basic [Base64(Workspace_ID:API_Key)]" Generate a Basic Authentication Token using an online Basic Auth Header Generator tool. You must enter your Workspace ID as username and Data API Key as password. To find your credentials, perform the following steps: On the MoEngage UI, navigate to Settings > Account > APIs. Copy the ID under Workspace ID (earlier app id). Copy the Data under API keys. Your Basic Authentication Token is a combination of Workspace ID and Data. For example, paste the following value as your Basic Authentication Token: Basic {base64_encoded_credentials} Note: Ensure the token is copied completely without extra spaces. Body For the Body content, use one of the sample payloads provided in the examples.

Step 4: Add Request Body Payload

To add the request body payload, perform the following steps:

1. Copy the appropriate payload template below and paste it into the Body field of the HTTP action.
2. Replace placeholder values (for example, @{'triggerBody()?['firstname']}) with the corresponding Dynamic content fields from the D365 trigger.

Contacts & Leads (User Sync)

{
  "customer_id": "@{triggerBody()?['contactid']}",
  "u_fn": "@{triggerBody()?['firstname']}",
  "u_ln": "@{triggerBody()?['lastname']}",
  "u_em": "@{triggerBody()?['emailaddress1']}",
  "u_mb": "@{triggerBody()?['mobilephone']}",
  "updated_at": "@{triggerBody()?['modifiedon']}",
  "user_attributes": {
    "job_title": "@{triggerBody()?['jobtitle']}",
    "company_name": "@{triggerBody()?['companyname']}",
    "account_id": "@{triggerBody()?['_accountid_value']}",
    "business_phone": "@{triggerBody()?['telephone1']}",
    "status": "@{triggerBody()?['statecode']}"
  }
}

Opportunities (Event)

{
  "customer_id": "@{triggerBody()?['opportunityid']}",
  "u_fn": "@{triggerBody()?['name']}",
  "u_ln": "",
  "u_em": "",
  "u_mb": "",
  "updated_at": "@{triggerBody()?['modifiedon']}",
  "event_attributes": {
    "event_name": "opportunity_updated",
    "opportunity_id": "@{triggerBody()?['opportunityid']}",
    "opportunity_name": "@{triggerBody()?['name']}",
    "deal_value": "@{triggerBody()?['estimatedvalue']}",
    "stage": "@{triggerBody()?['stageid']}",
    "probability": "@{triggerBody()?['closeprobability']}",
    "close_date": "@{triggerBody()?['estimatedclosedate']}",
    "owner_id": "@{triggerBody()?['_ownerid_value']}"
  }
}

Tasks, Calls & Meetings (Activity Events)

{
  "customer_id": "@{triggerBody()?['regardingobjectid']}",
  "u_fn": "@{triggerBody()?['subject']}",
  "u_ln": "",
  "u_em": "",
  "u_mb": "@{triggerBody()?['phonenumber']}",
  "updated_at": "@{triggerBody()?['modifiedon']}",
  "event_attributes": {
    "event_name": "task_created",
    "activity_id": "@{triggerBody()?['taskid']}",
    "subject": "@{triggerBody()?['subject']}",
    "priority": "@{triggerBody()?['prioritycode']}",
    "due_date": "@{triggerBody()?['duedate']}",
    "status": "@{triggerBody()?['statecode']}",
    "owner_id": "@{triggerBody()?['_ownerid_value']}"
  }
}

Required Fields

Data Mapping Guidelines

• Unique Identifier (Customer ID): Use a consistent, immutable identifier to link user profiles between D365 and MoEngage. Map this value to the customer_id field in your MoEngage payload. This is critical for data merging and preventing duplicate user profiles:
  • Email address (if unique)
  • D365 record GUID (for example, contactid, leadid)
  • External ID (if configured in D365)
• Event Name (event_name): Always include a descriptive event_name to identify and categorize actions in MoEngage. This ensures all events are tracked accurately for analysis and segmentation.

Step 5: Test the Integration

To test the integration, perform the following steps:

1. In Power Automate, click Test and then manually trigger a cloud flow.

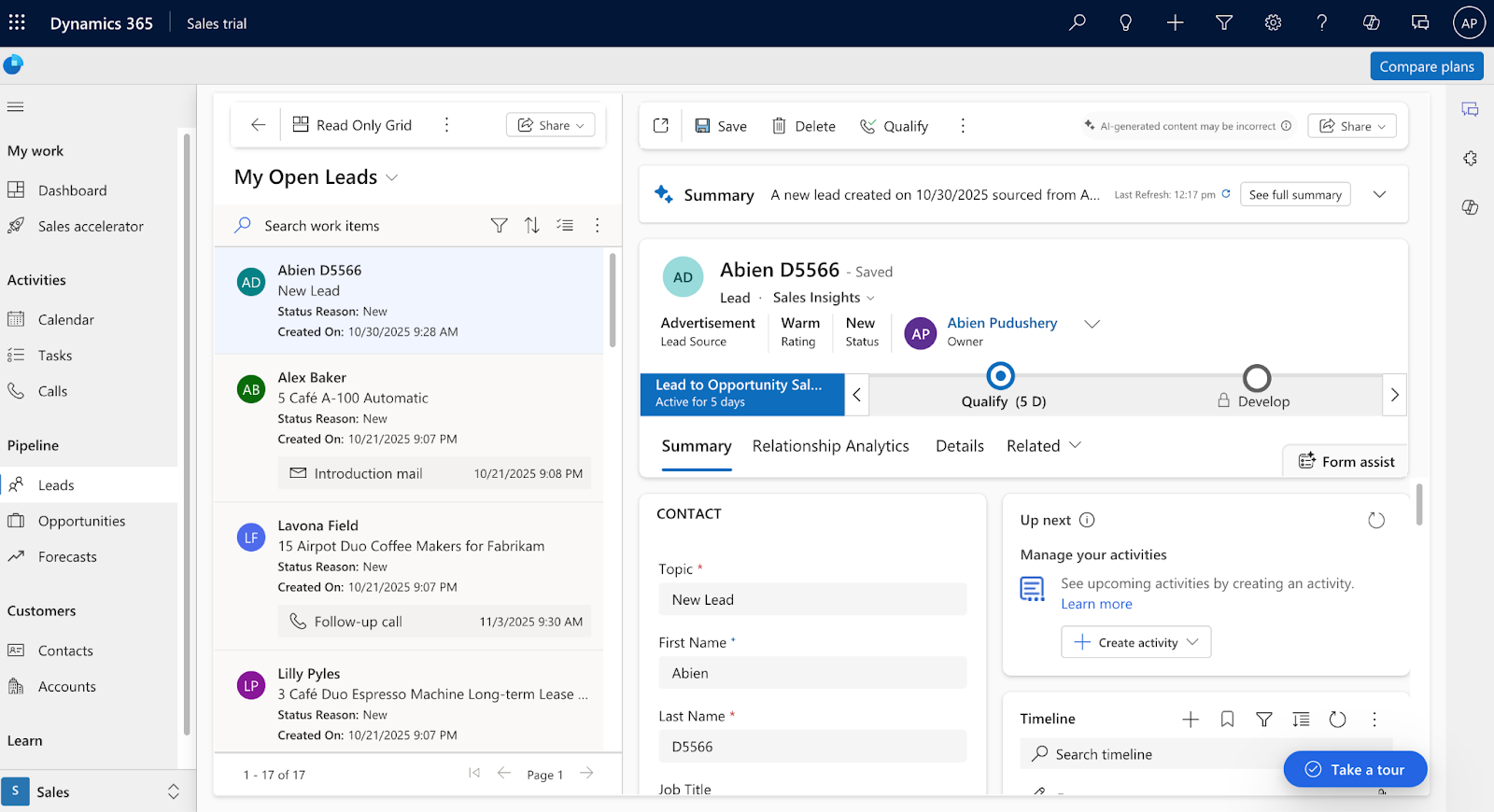

2. Create or update a test record in D365 Sales (for example, create a new Contact ).
3. Monitor the flow execution in Power Automate for a successful HTTP 200/201 response.
4. Verify in MoEngage UI to confirm the test data has synced correctly within 1–5 minutes.
