Outbound: User and Event Forwarding

Introduction

With the MoEngage and Zeotap integration, you can sync your valuable user and event data directly from Zeotap's platform to MoEngage. This integration enables you to enrich user profiles for enhanced segmentation and personalized campaigns.

info	Information The Zeotap integration does not currently support Unified Identity (Identity Resolution) and Portfolio.

Supported Data Types

Type	Details
User Identities	Users are matched between platforms using a unique identifier. Currently, MoEngage supports only the `customer_id`.
User Attributes	You can sync any standard or custom user attributes from Zeotap to corresponding attributes in MoEngage. This includes data such as Name, First Name, or other custom fields.

Integration

library_add_check

Prerequisites

Ensure you have the following:

An active Zeotap account.
Access to your MoEngage dashboard settings.

Step 1: Get Your MoEngage Endpoint

To get your MoEngage API credentials, perform the following steps:

On the left navigation menu in the MoEngage UI, go to Settings > Account > APIs.

On the API page, copy the following credentials:

Copy the ID under Workspace ID (earlier app id).
Copy the Data under API keys.

Data Center: Find your data center code from your dashboard's URL. The following table describes the data center name and URL:

Data Center Name	Dashboard URL
DC-01	https://dashboard-01.moengage.com
DC-02	https://dashboard-02.moengage.com
DC-03	https://dashboard-03.moengage.com
DC-04	https://dashboard-04.moengage.com
DC-05	https://dashboard-05.moengage.com
DC-06	https://dashboard-06.moengage.com

For more information, refer here.

Step 2: Create a MoEngage Destination in Zeotap

To create a MoEngage destination in Zeotap, perform the following steps:

Log in to your Zeotap dashboard, navigate to Integrate > Destinations.

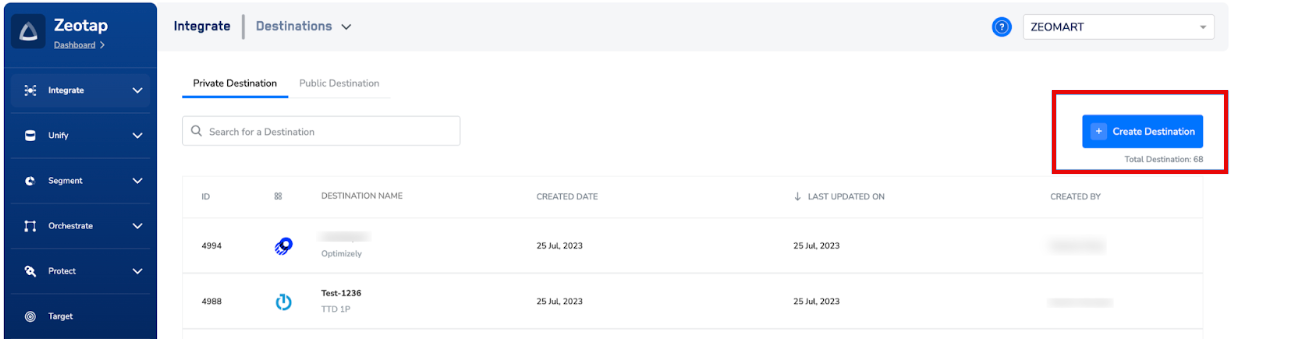

On the Destinations page, click + Create Destination in the upper-right corner.

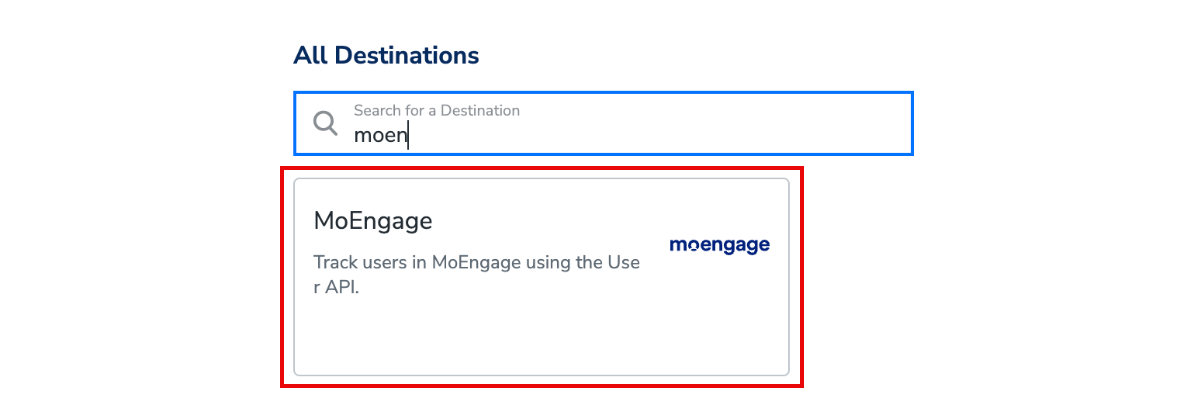

Under All Destinations, in the Search for a Destination box, type MoEngage.
Click the MoEngage tile.

The Destination Details configuration page appears.

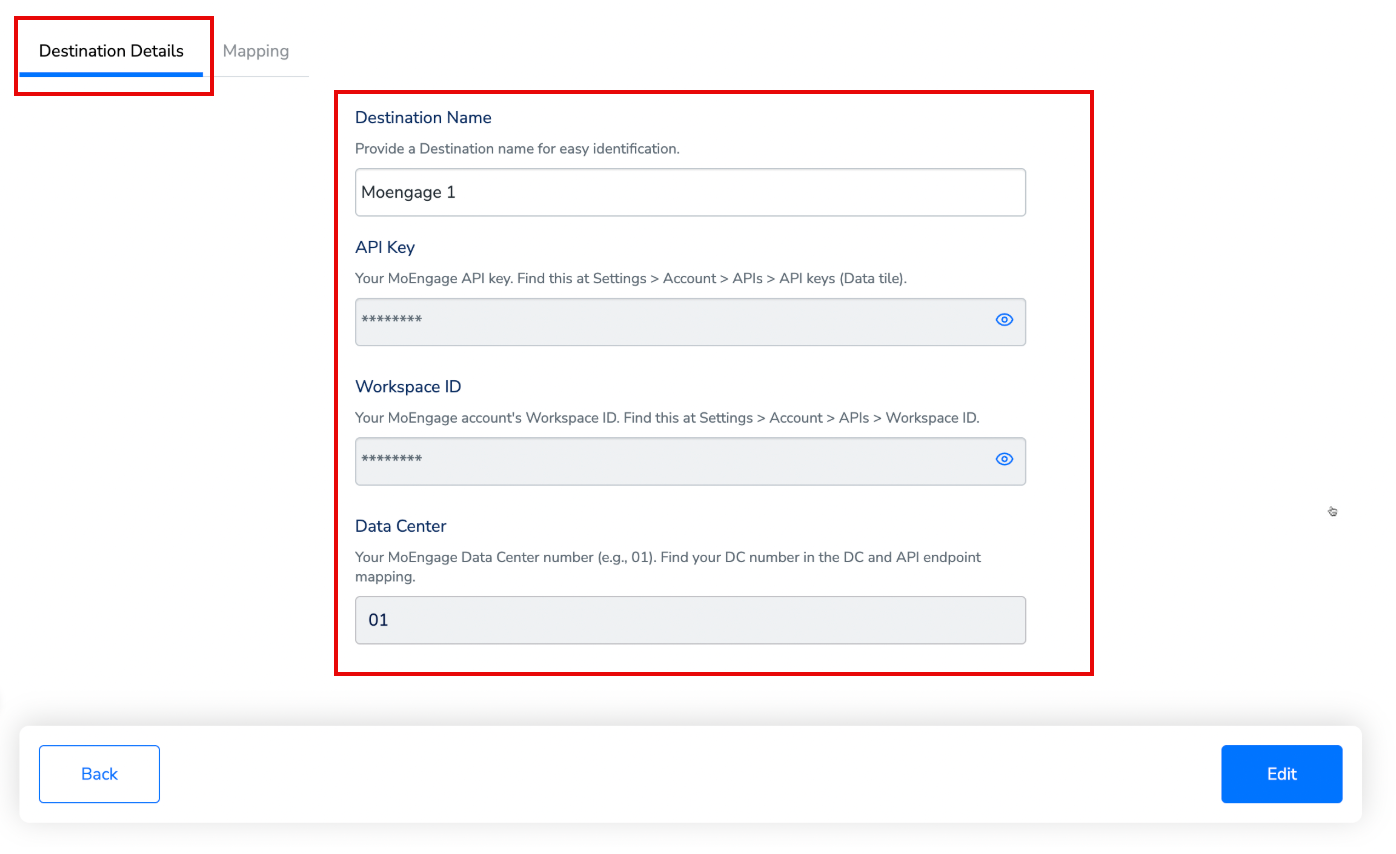

On the Destination Details tab, provide the following details:
1. In the Destination Name box, type a name for the destination.
2. In the API Key box, type your MoEngage API key.
3. In the Workspace ID box, type your MoEngage account's Workspace ID.
4. In the Data Center box, type your MoEngage Data Center number.
5. Click Next. The MoEngage destination is now active in your journey.

  The Mapping configuration page appears.
6. Select the action (Add Audience to segment, Send events to moengage, and Sync User) you want to perform in MoEngage based on your specific use case. For example, in this use case, the action is Create User, which instructs MoEngage to either create a new user profile or update an existing one with the data from Zeotap.
7. Under Choose your Action, in the drop-down list, select Create User.
8. Under Map the Fields, map the Catalogue Field from Zeotap to the corresponding Destination Field in MoEngage:
  - Identifiers: Map the Email Raw field to the Email/Customer ID* field. This is a mandatory field.
  - Attributes: Map the necessary Zeotap fields to their corresponding MoEngage fields, such as Name and First Name.
9. Click Create Destination to save the configuration.
  Note: To sync multiple user identifiers, click +Add Mapping. This allows you to create new rows for mapping standard attributes (such as Name) and any custom fields you require.
10. Click Save Mapping.

After creating the destination, you can link your new destination in the Zeotap Journey app to send user data to MoEngage.

Step 3: Activate the Destination in a Zeotap Journey

To activate the destination in a Zeotap Journey, perform the following steps:

Navigate to the Orchestrate section in Zeotap and open the Journey (workflow) where you want to add the destination.
In the workflow canvas, click the + icon to add a new action.

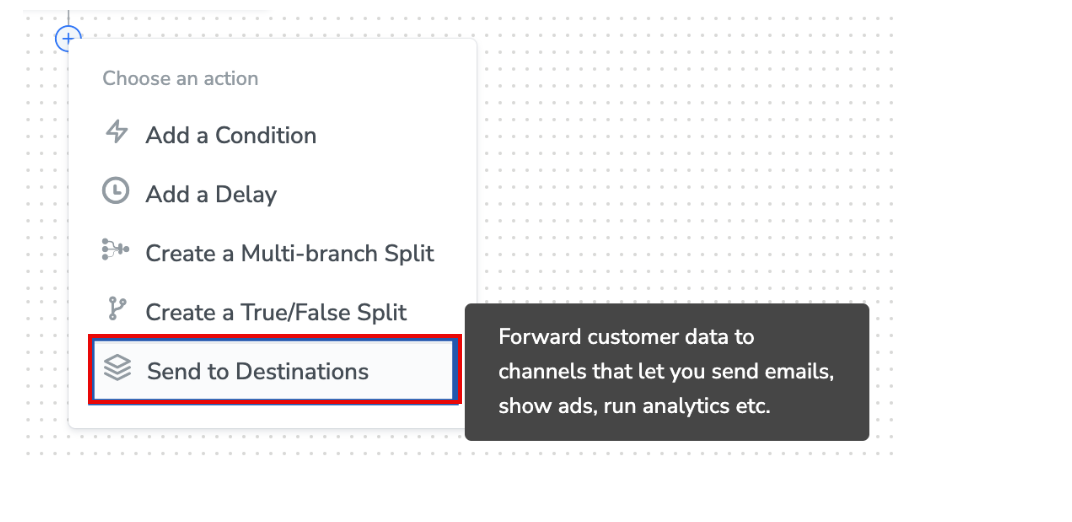

On the Choose an action menu, click Send to Destinations.

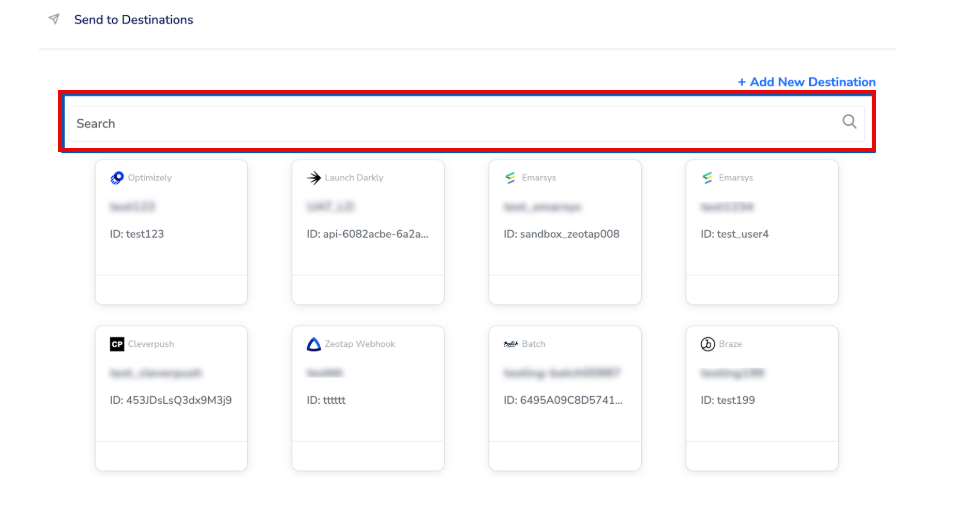

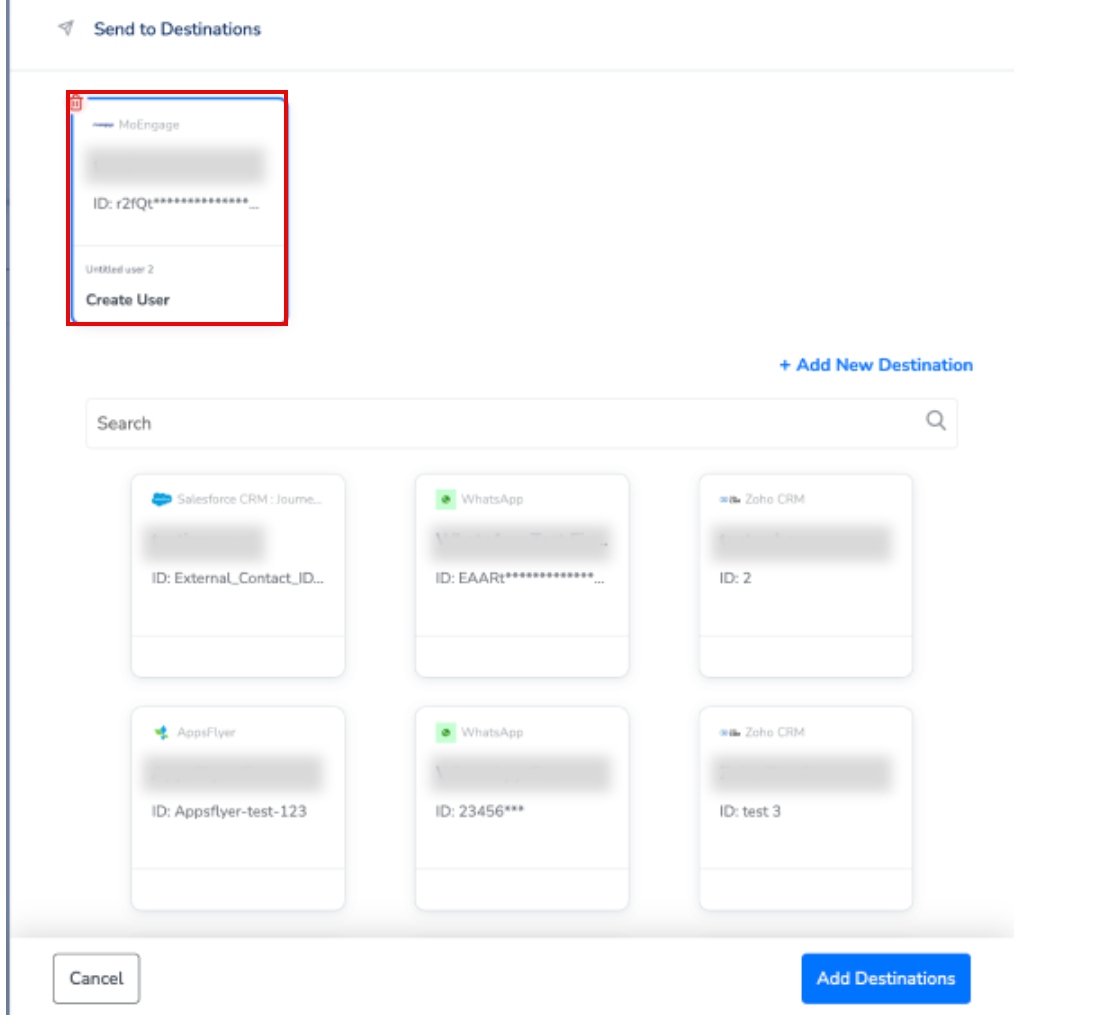

In the Search box, type the MoEngage destination you created earlier.
On the Destination Details tab, verify the API Key and Data Center fields, which are automatically populated with the details from your destination's configuration.
Click Save Destination.

Rate Limits

To maintain platform stability, MoEngage limits ingestion of Zeotap data to a maximum of 500 requests per second (RPS) per workspace. If your workspace exceeds this limit, MoEngage returns an HTTP 429 (Too Many Requests) status code. Refer to Adobe's documentation on default retry policy to understand how rate limiting affects your data flow

Retry Exhaustion: If Zeotap exhausts all retry attempts for a batch of data, you must contact the Zeotap Support Team to replay the failed requests.
