End User Messaging (Pinpoint) is a service offered by Amazon Web Services (AWS) that allows businesses to send targeted and personalized text messages to their customers.

Configure as SMS connector (Service Provider)

Below is a step-by-step explanation for setting up End User Messaging (Pinpoint) as your desired SMS provider on MoEngage.

Log in to the MoEngage Dashboard and follow these steps:

1. Navigate to Settings > Channel > SMS > Sender configuration.
2. Click +Add Sender at the top right corner.

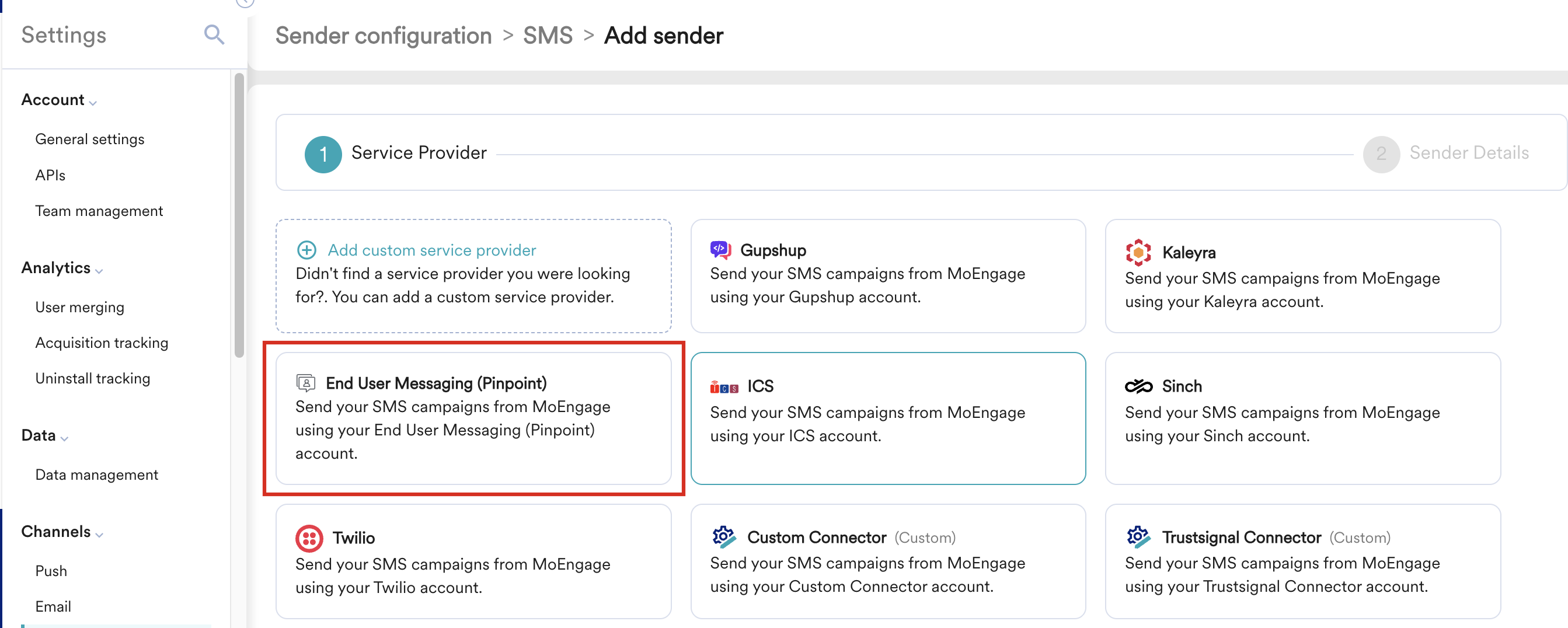

3. Select End User Messaging (Pinpoint) in the Add Sender screen.

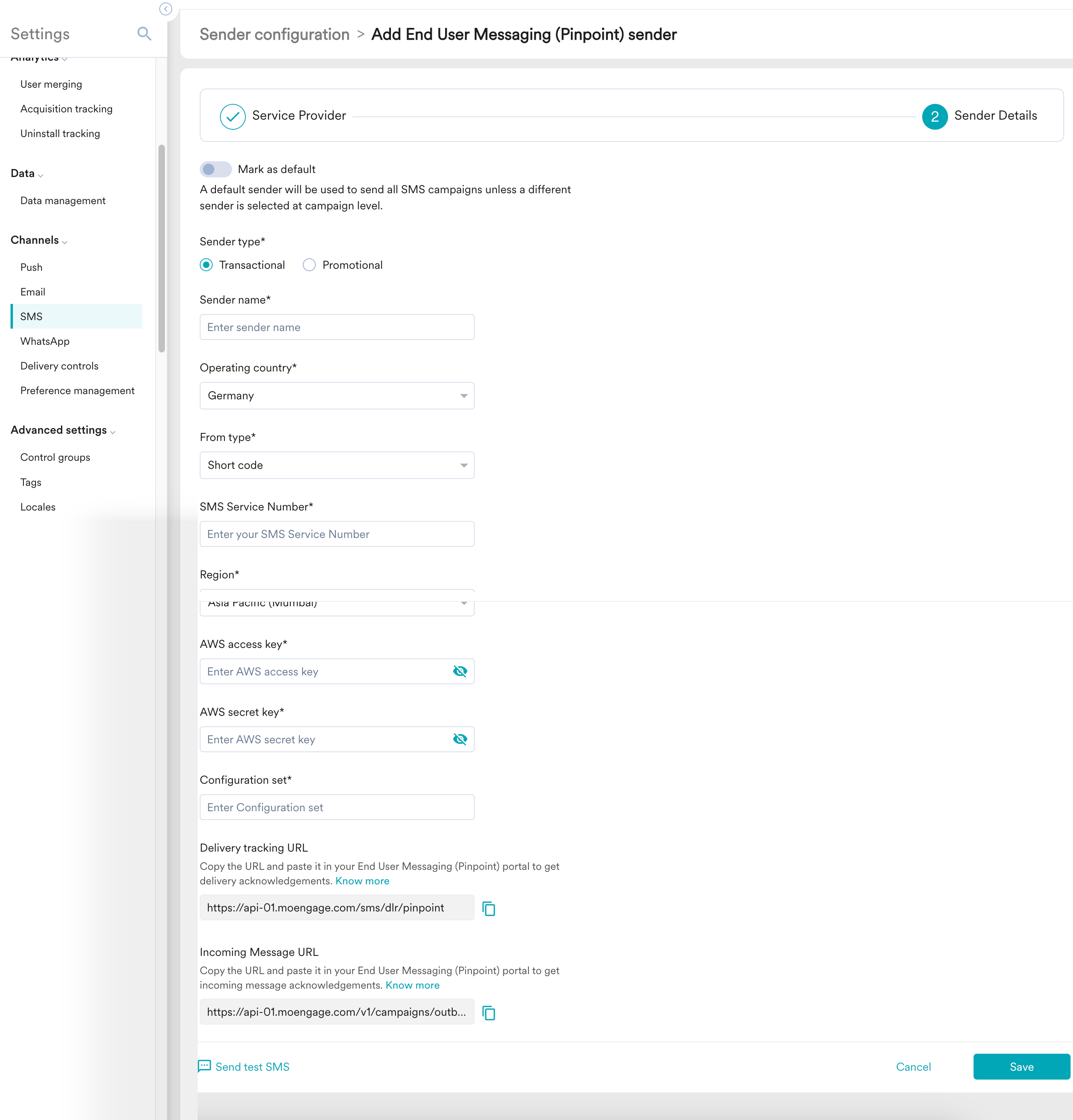

4. Add the following details in the Sender Details screen.



   Field	Description
   Mark as default	This toggle will be disabled during sender creation. The first sender to be created in your MoEngage account will be marked as the default sender for your SMS campaigns. You can change the default sender by following the steps mentioned in Marking a sender as default.
   Sender type	The Sender type can either be Transactional or Promotional. Choose the Sender type as Transactional when you would be using the sender for sending alerts about transactions, OTPs, security information, or any information that can be classified as transactional in nature. Choose the Sender type as Promotional when you would be using the sender for sending information about your brand, promoting deals, or engaging with users.
   Sender name	This field identifies the readable sender name that can be used while creating a campaign or alert.
   Operating country	This field identifies which country you intend to send the message to.
   From type	This field identifies the type of the number from which SMS will be sent to your end users. From type can be Short code, Long code, Sender ID.
   SMS Service Number	This is the sender ID from which SMS will be sent to your end users. For example, HDBCBK is used by HDFC bank to send messages to the end customers.
   Region	Select the region where your AWS account is configured. For example, if your AWS account is hosted in Mumbai, Asia Pacific (Mumbai) needs to be selected.
   AWS access key	This is the access key used to access your AWS End User Messaging account. Make sure this key has access only to AWS End User Messaging account.
   AWS secret key	This is the secret key used to access your AWS End User Messaging account. Make sure this key has access only to AWS End User Messaging account.
   Configuration set	This is the Configuration set name created in your AWS End User Messaging while configuring the SMS sender details.
   Delivery tracking URL	To get delivery acknowledgments, copy the Delivery tracking URL and paste it onto your AWS End User Messaging portal.
   Incoming Message URL	To get incoming acknowledgments, copy the Incoming Message URL and paste it onto your AWS End User Messaging portal.

5. Send a test SMS to verify your configuration.
6. Click Save to save the Sender Configuration.

Configure Delivery Tracking

Configuring delivery tracking allows you to monitor whether messages have been delivered to end users.

Changes in the AWS Console

For any configured sender, perform the following steps to configure delivery tracking in the AWS console:

1. Log in to the AWS Console and select AWS End User Messaging.

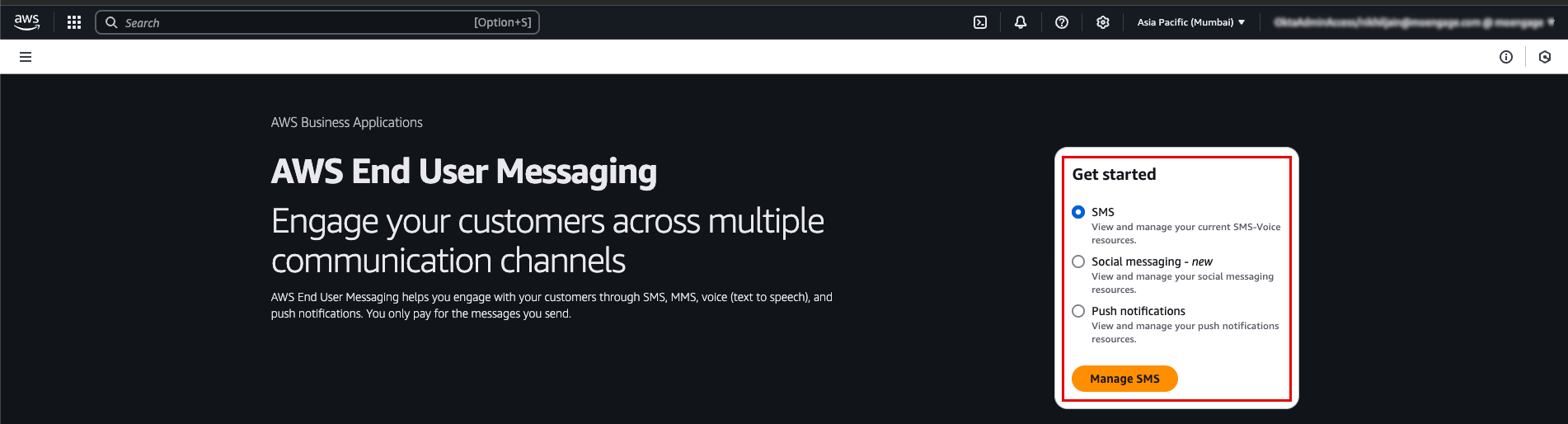

2. On the following page, in the Get started section, select SMS > Manage SMS.

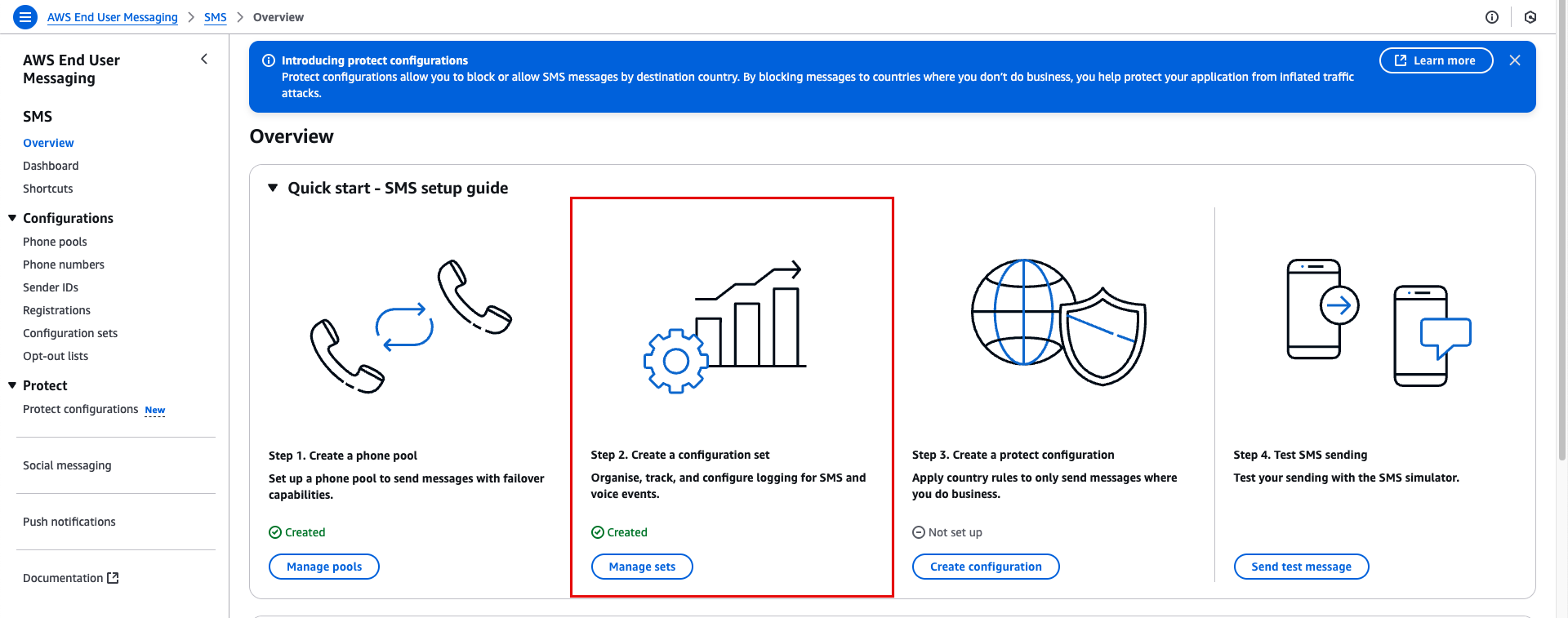

3. On the Overview page, click Manage sets in Step 2. Create a configuration set.

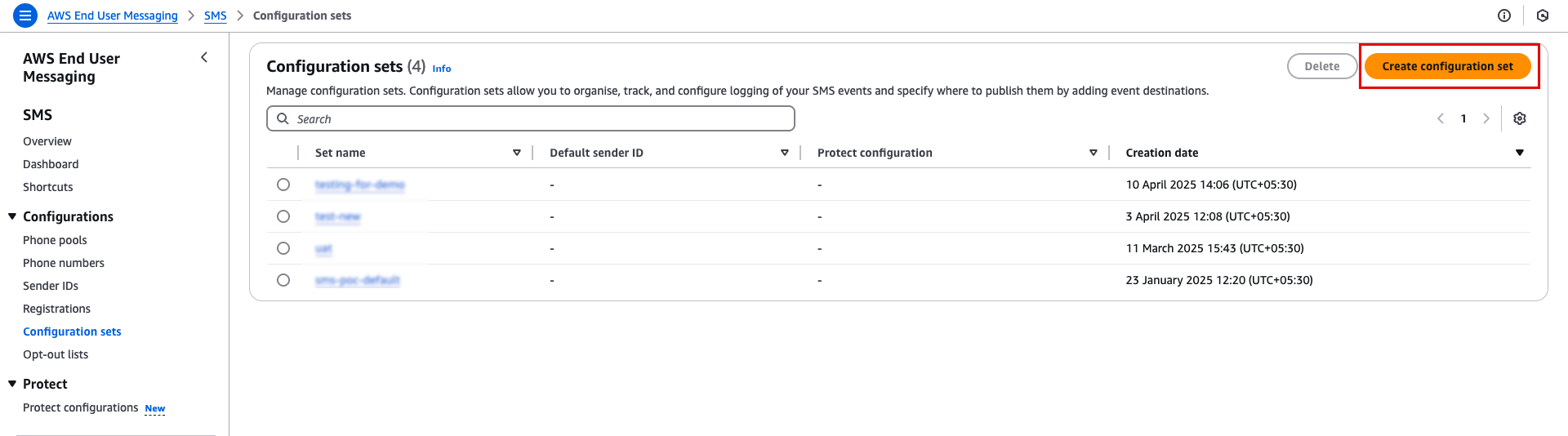

4. On the following Configuration sets page, click Create configuration set.

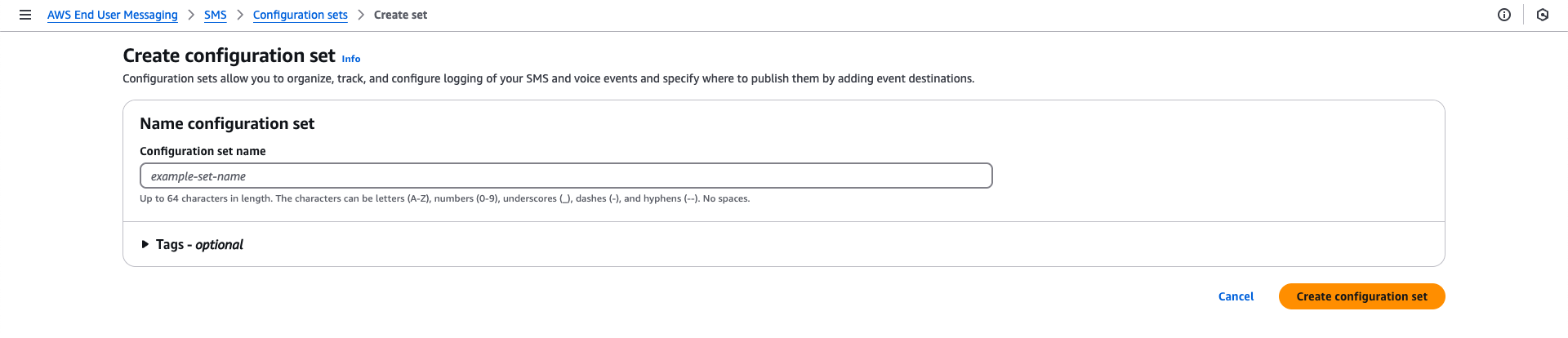

5. On the Create set page, in the Configuration set name box, provide a name for the configuration set and click the Create configuration set button. Copy the name you provided here and paste it into the Configuration set box while setting up Sender details in the MoEngage dashboard.

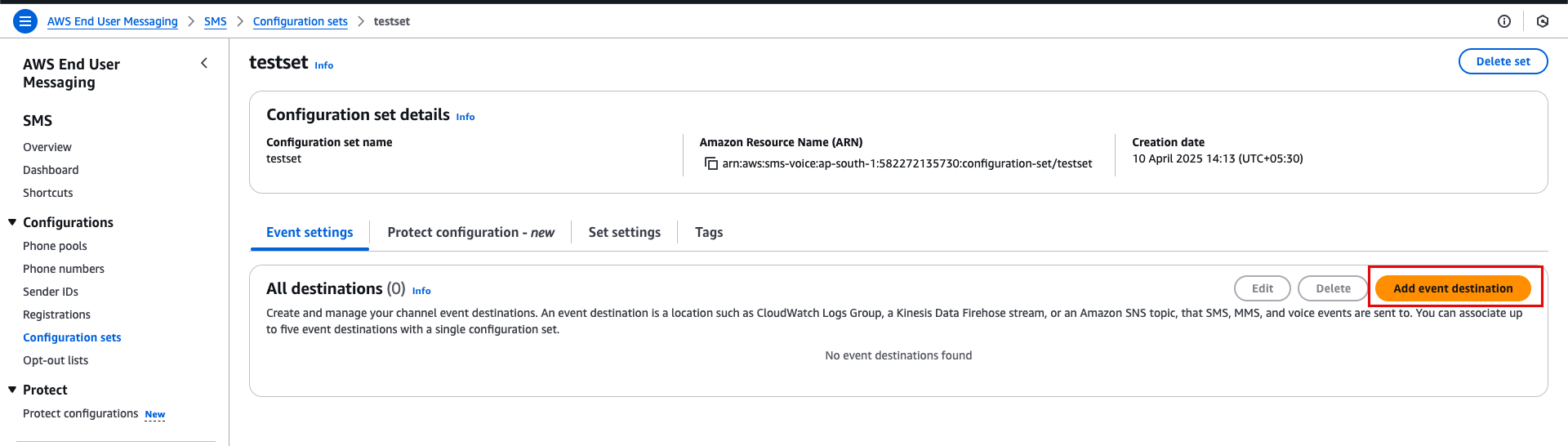

6. On the following page, navigate to Event settings tab and click Add event destination.

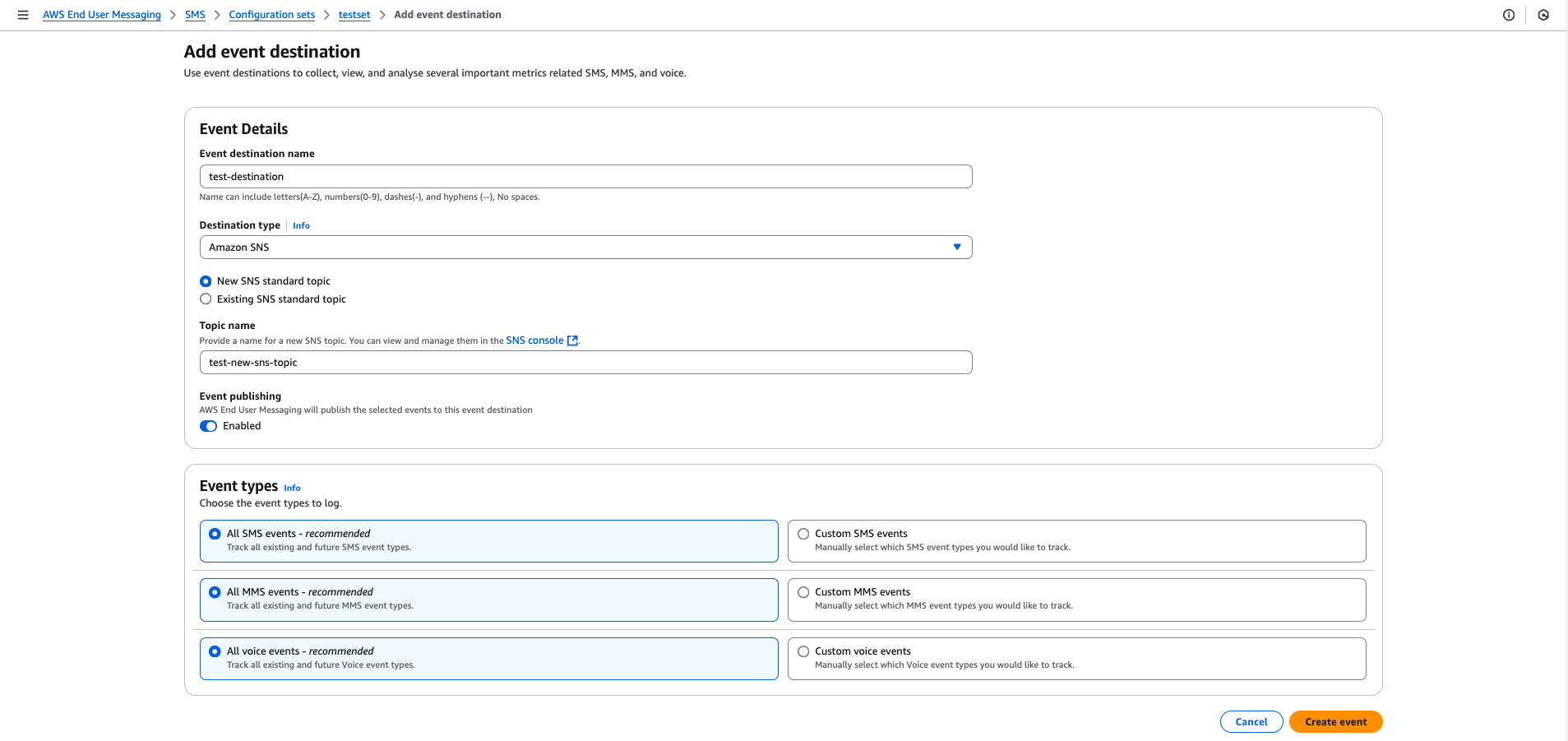

7. In the Add event destination page, in the Event Details section, provide the following details:


   1. Provide a name for the event destination in the Event destination name box.
   2. Select the Destination type as Amazon SNS.
   3. Select the New SNS standard topic option.
   4. Provide a name for the new SNS topic in the Topic name box. For example, test-new-topic.
   5. Turn on the Enabled toggle under Event publishing.
8. In the Event types section, select the following:
   1. All SMS events
   2. All MMS events
   3. All voice events
9. Click Create event. After creating, whenever the vendor sends a callback to AWS, AWS forwards the callback to the created event destination. Within the event destination, there are sets of SMS topics, and AWS adds all the callback requests to the SMS topic.

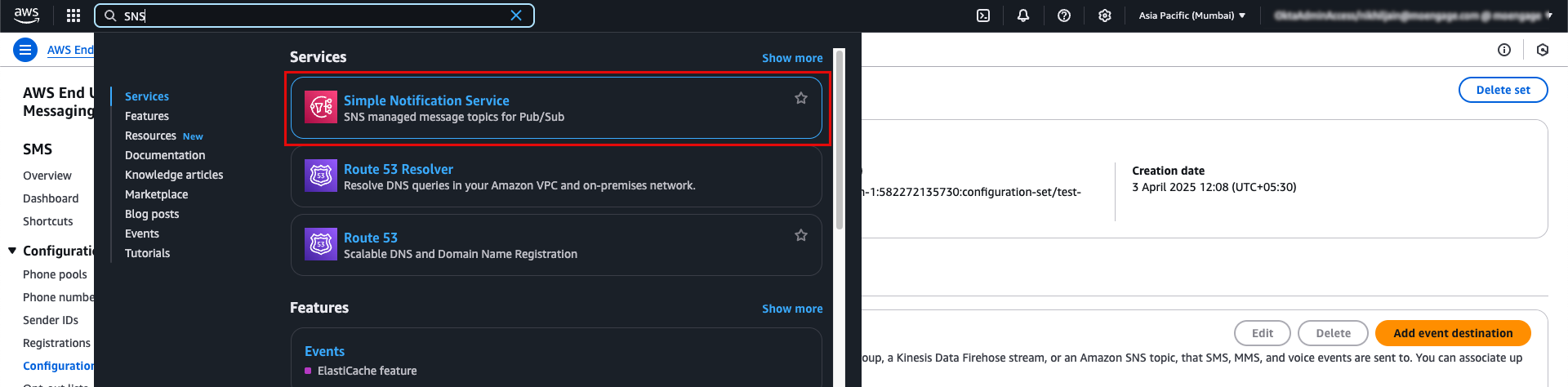

10. To push all the delivery feedback from SMS topic to MoEngage, you need navigate to Amazon SNS.

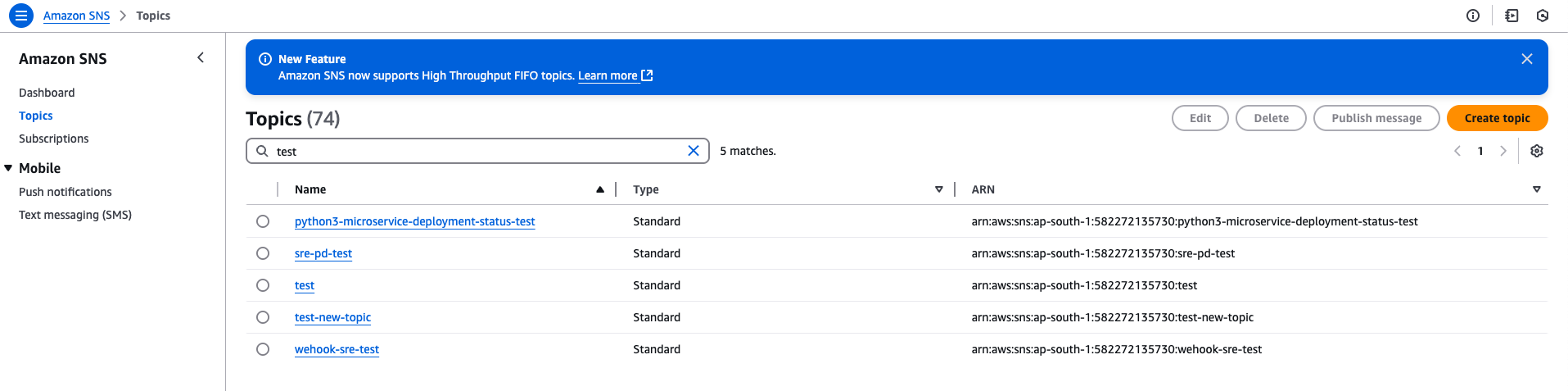

11. On the Amazon SNS page, click Topics and search for the SNS topic you created in the above steps. As per the example, the topic name here is test-new-topic.

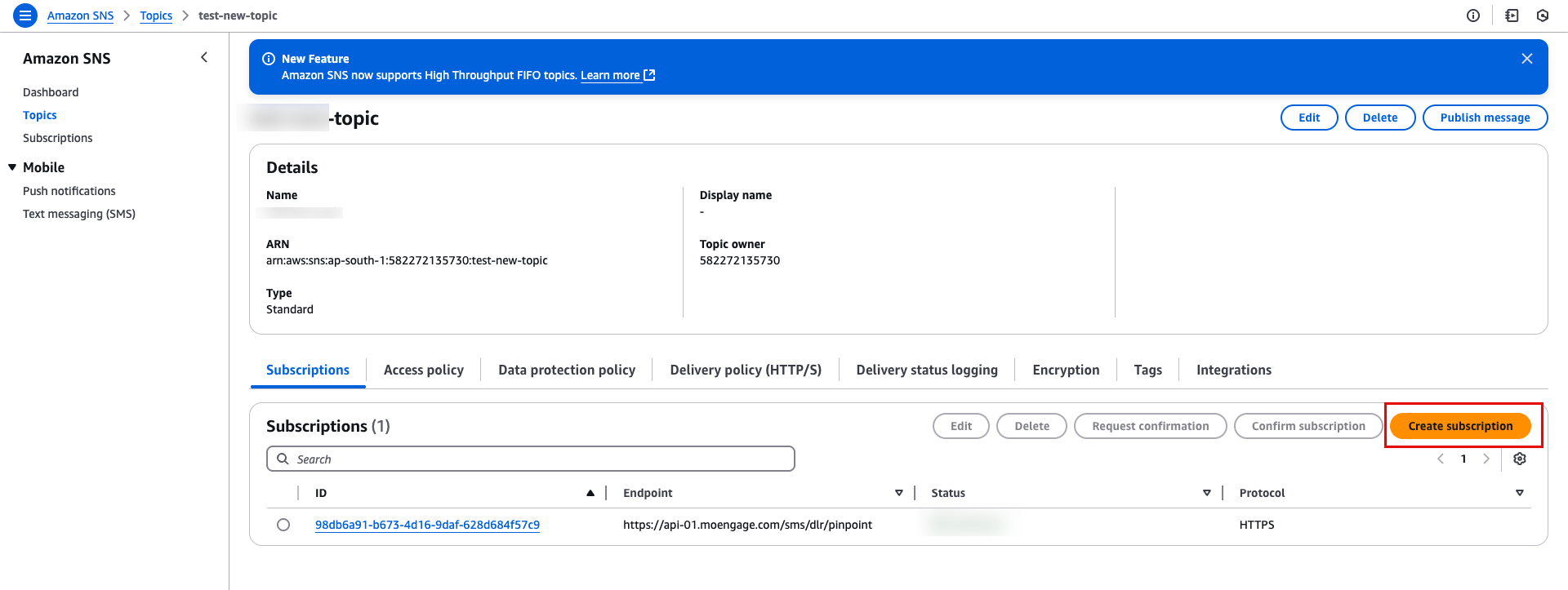

12. Click the topic name, on the following page navigate to Subscriptions> Create new subscription. Subscription can notify whenever a message is pushed to the SNS topic.

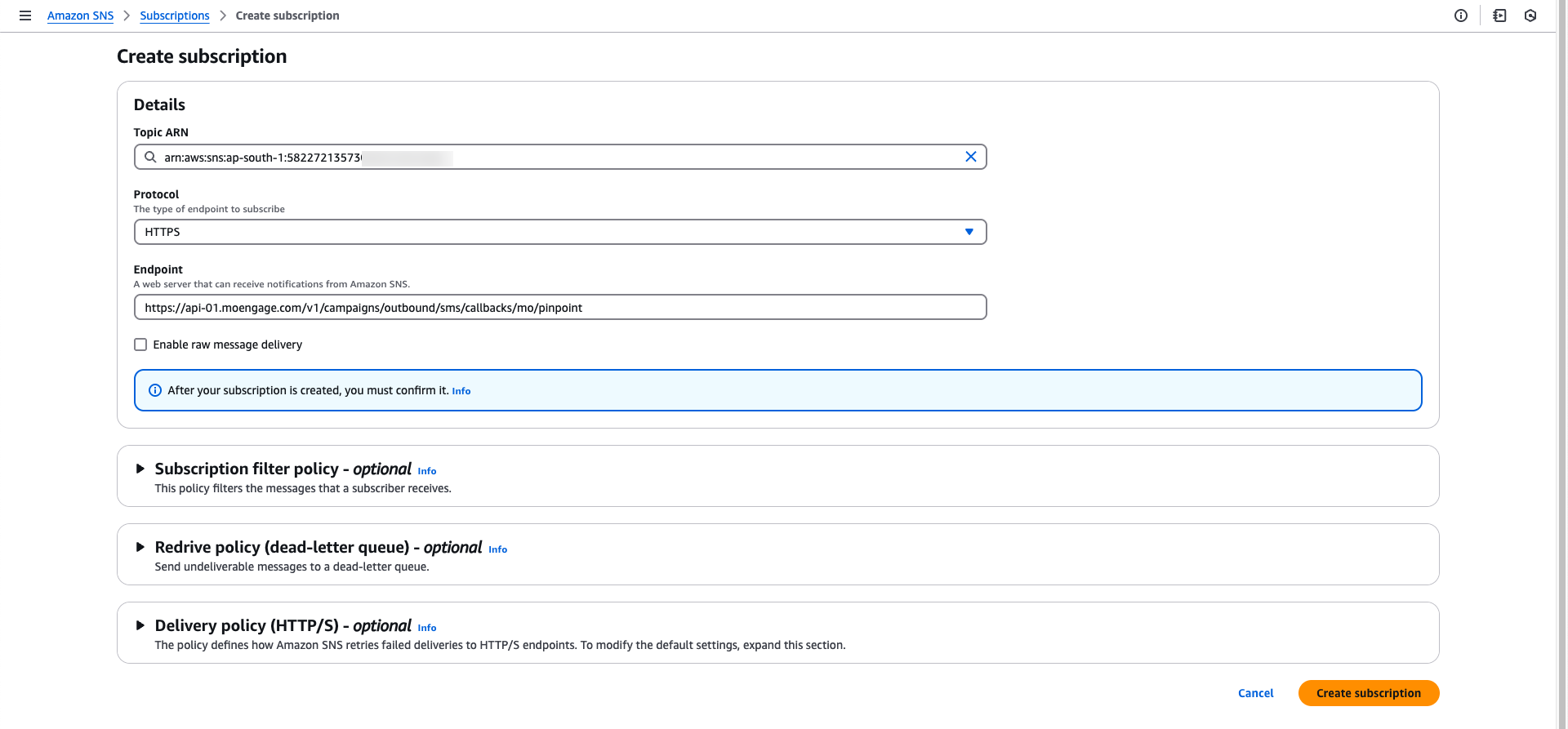

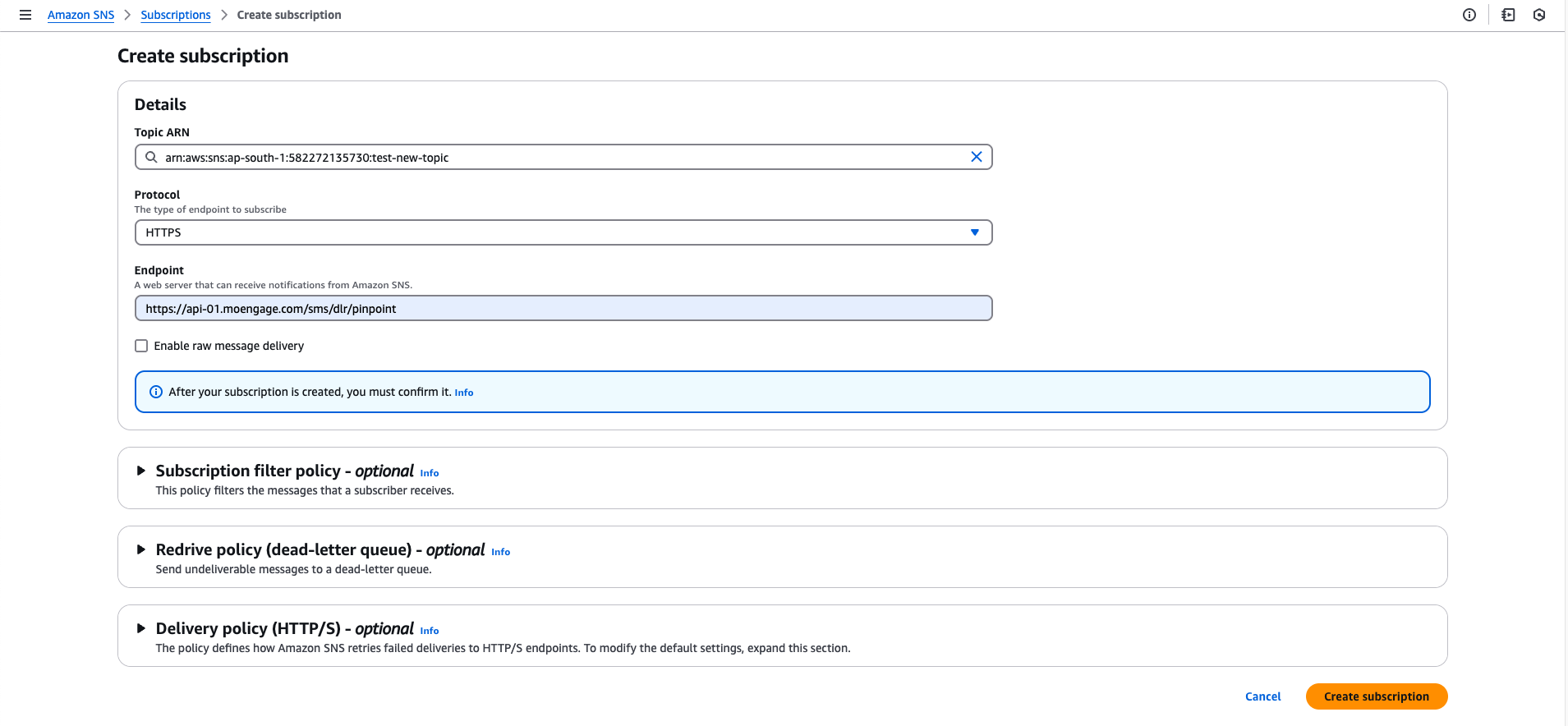

13. On the Create subscription page, add the following details:


    1. The Topic ARN is auto-populated.
    2. Select the Protocol as HTTPS.
    3. In the Endpoint box, paste the Delivery tracking URL you copied from the MoEngage dashboard.
    4. Make sure not to enable the Raw message delivery check box.

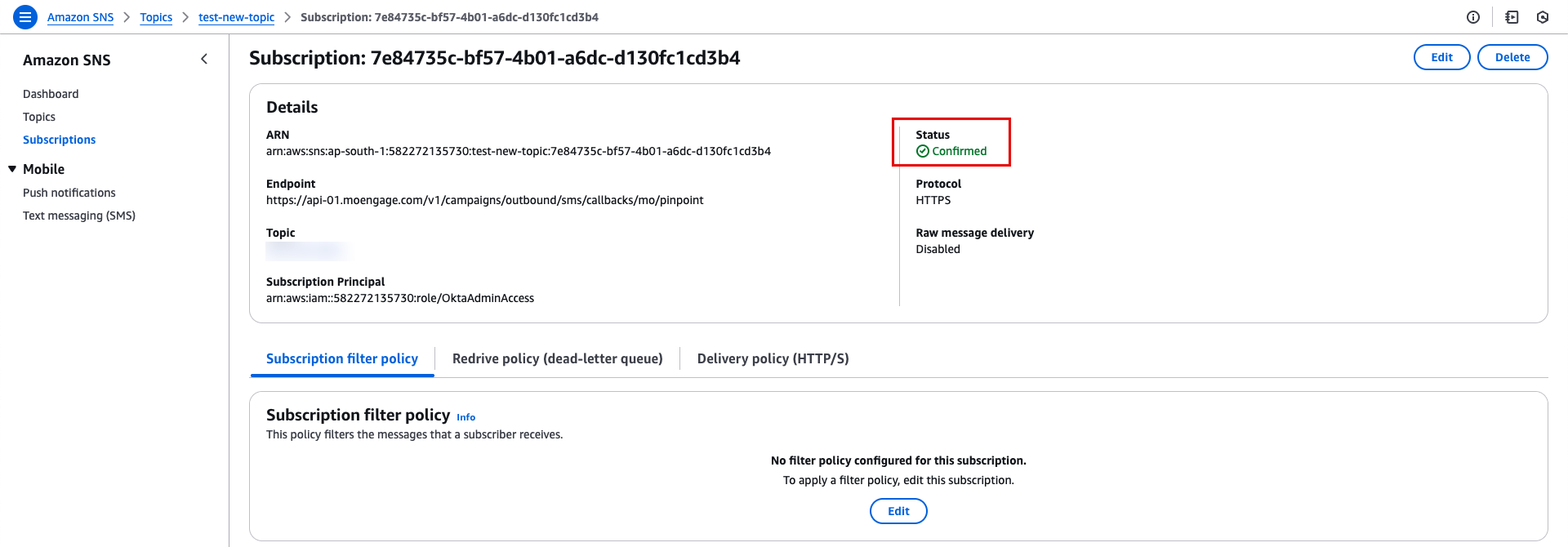

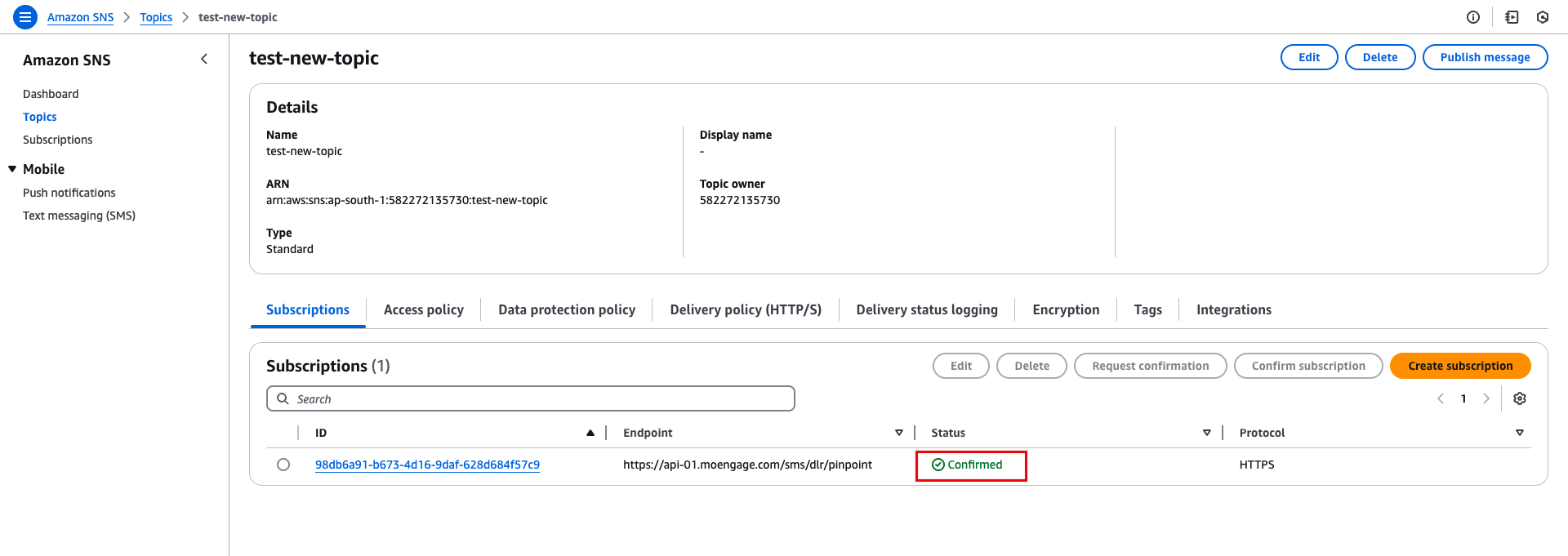

    5. Click Create Subscription. To ensure proper working, before start sending any message make sure the subscription Status is Confirmed.


Configure Incoming Message URL

Configuring incoming message URLs allows you to track the responses on messages so that you can act on them accordingly.

Changes in the AWS Console

For any configured sender, perform the following steps to configure incoming message URL in the AWS console:

1. Log in to the AWS Console and select AWS End User Messaging.
2. On the following page, in the Get started section, select SMS > Manage SMS.

3. Click Configurations on the left side panel and select Phone numbers.

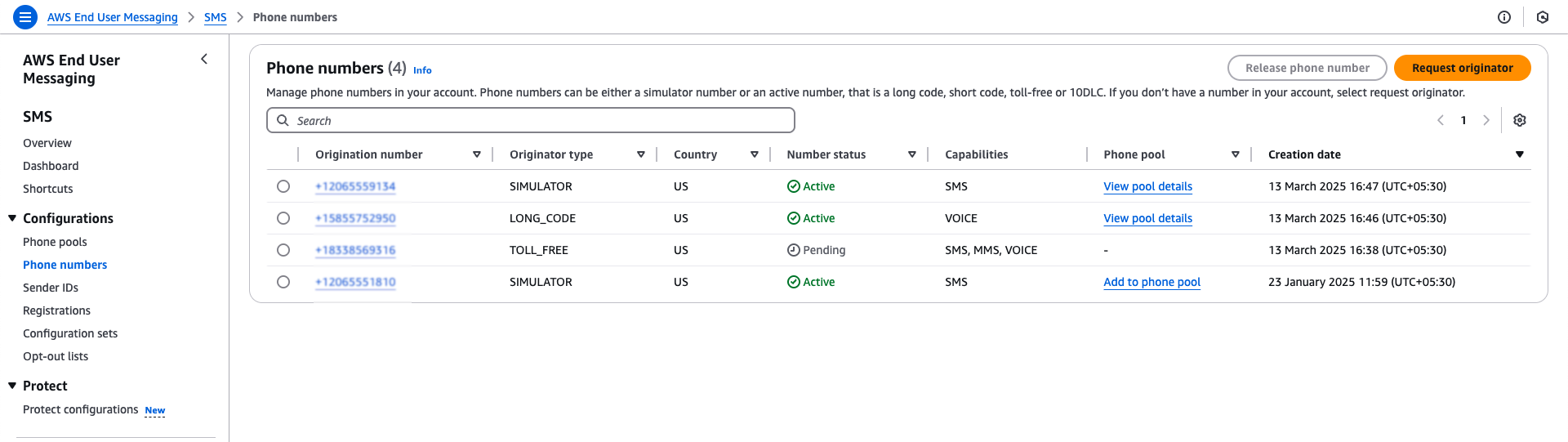

4. On the Phone numbers page, select the phone number for which you want to configure incoming messages.

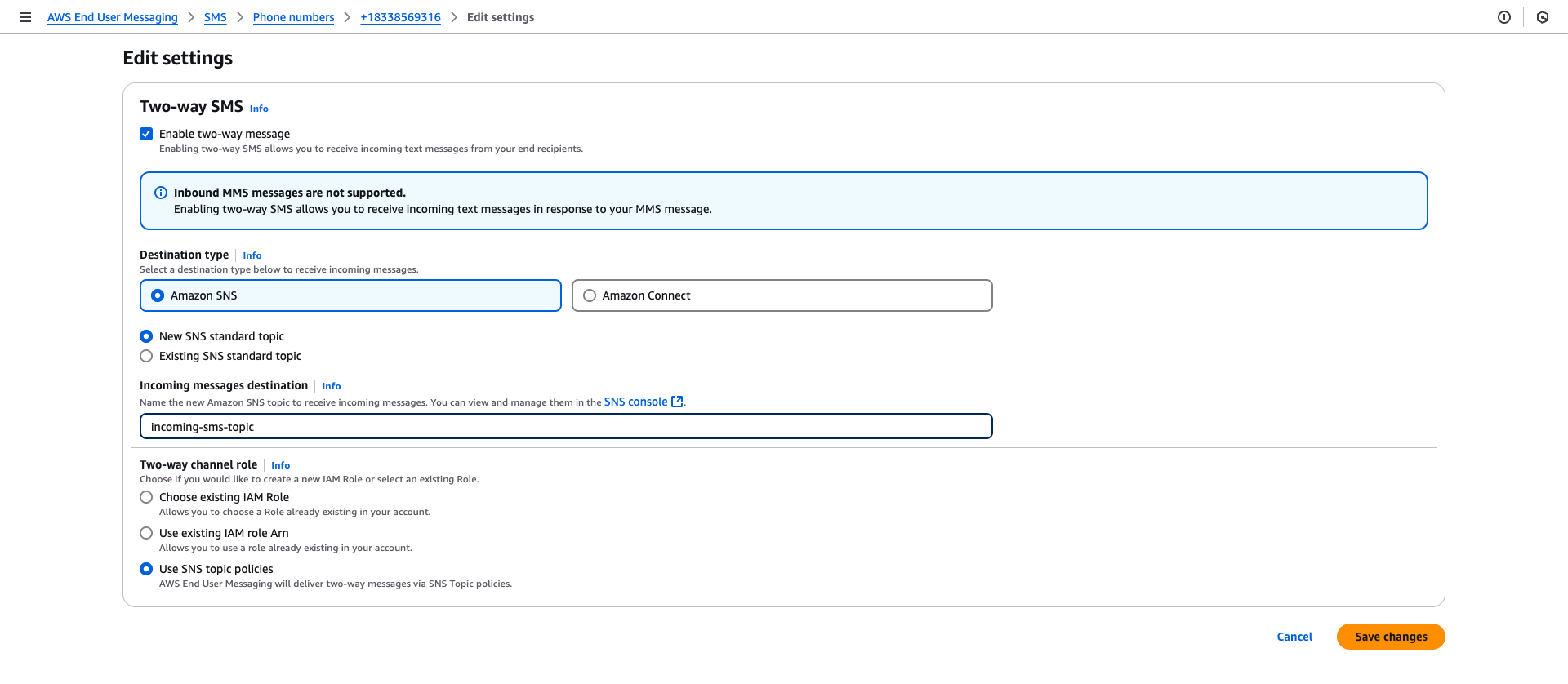

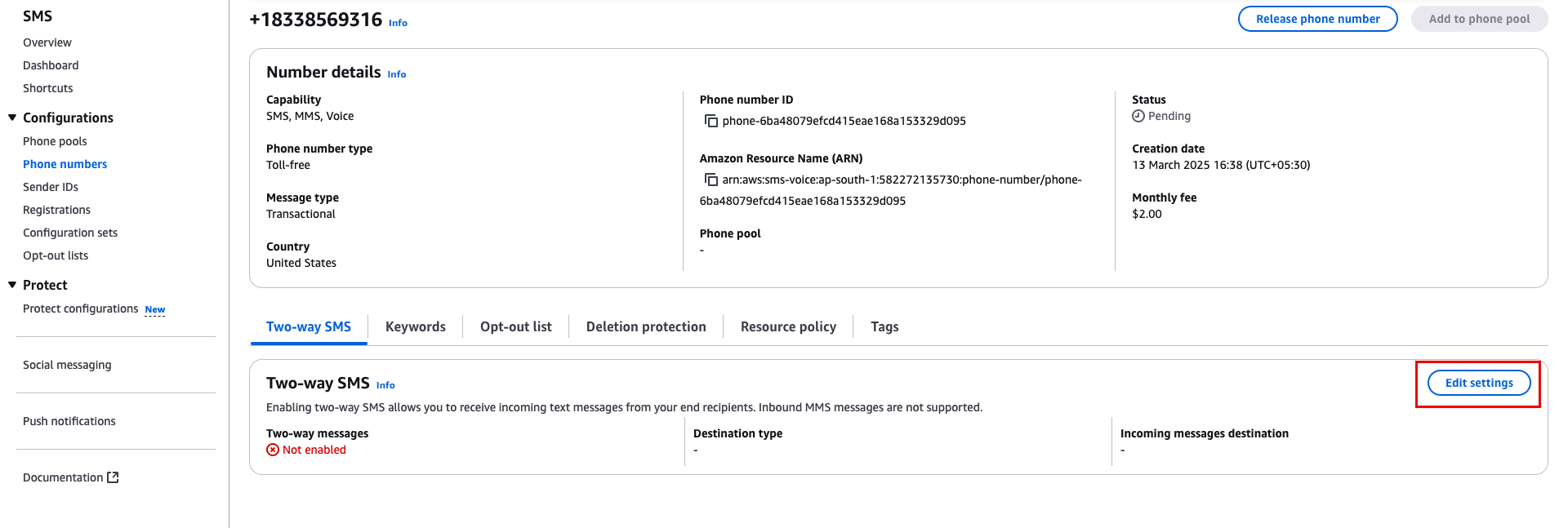

5. On the following page, navigate to Two-way SMS > Edit settings.

6. On the Edit settings page, enter the following details:


   1. Enable two-way message checkbox.
   2. Select the Destination type as Amazon SNS.
   3. Select the New SNS standard topic option.
   4. Provide a name for the Amazon SNS topic to receive incoming messages in the Incoming messages destination box. For example, incoming-sms-topic.
   5. In Two-way channel role, select Use SNS topic policies.
7. Click Save changes.
8. Navigate to Amazon SNS.

9. On the Amazon SNS page, click Topics and search for the SNS topic you created in the above steps. Note that the topic created for configuring delivery callback and incoming message must be different. As per the example, the topic name here is incoming-sms-topic.
10. Click the topic name, on the following page navigate to Subscriptions> Create new subscription. Subscription can notify whenever a message is pushed to the SNS topic.

11. On the Create subscription page, add the following details:


    1. The Topic ARN is auto-populated.
    2. Select the Protocol as HTTPS.
    3. In the Endpoint box, paste the Incoming messages URL you copied from the MoEngage dashboard.
    4. Make sure not to enable the Raw message delivery check box.
    5. Click Create Subscription. To ensure proper working, before start sending any message make sure the subscription Status is Confirmed.
