Databricks

Databricks is a platform that allows organizations to store, analyze, and process large volumes of structured and semi-structured data in a highly scalable and efficient manner. With its unique architecture, Databricks allows organizations to consolidate their data, perform quick analytics, and gain valuable data-driven insights accessible to all users.

MoEngage <> Databricks

The MoEngage <> Databricks integration allows you to set up a direct connection between your Databricks instance and MoEngage app to sync data regularly. You can define a schedule to run the sync periodically; periodic syncs can be frequent or with a time interval, such as once every month. During synchronization, MoEngage will directly connect to your data warehouse instance, retrieve all new data from the specified table or the table you have access to, and update the corresponding data on your MoEngage dashboard.

Use Cases

Databricks integration with MoEngage helps you with the following use cases:

Sync real-time audiences from Databricks
Import users and events from Databricks
Export campaign interaction events to Databricks

Advantages

The integration with MoEngage helps you with the following advantages:

Reduce Integration Time

No more searching for the right ETL (Extract, Transform, and Load) tool, as MoEngage directly integrates with Databricks.
Long and complicated ETL pipelines are now replaced with a one-time integration setup that gives MoEngage direct access to your data.
This decreases the dependency on tech teams significantly.

Faster Data Processing

The power of the Databricks infrastructure enables us to store, process, and query massive amounts of data in near real-time.
Any changes in the original schema are propagated immediately without having to change any configuration on MoEngage’s end, which is a significant advantage over the traditional ETL pipelines.
Since there is no need for ETL tools and external cloud providers, the cost of import is significantly lower than traditional data pipelines.

Integration

library_add_check

Prerequisites

Ensure you have a Databricks account with administrative workspace privileges to create service principals, generate secrets, and grant permissions on catalogs and schemas.

Part A: Set Up Authentication

To securely connect MoEngage to your Databricks SQL warehouse, we recommend configuring a Databricks service principal (SP) by using OAuth 2.0 Machine-to-Machine (M2M) authentication. This security framework implements a least-privilege structure, meaning your service principal does not require workspace administrator privileges or full catalog ownership.

arrow_drop_down Method 1: Service Principal with OAuth (Recommended)

info	Information Warehouse Segments currently does not support the OAuth method.

To set up a Databricks service principal (SP) using OAuth 2.0 M2M authentication, perform the following steps:

Add a Service Principal in Databricks

To add a service principal in Databricks, perform the following steps:

Sign in to your account console in Databricks as an admin.
In the sidebar, click User Management.
On the Service principals tab, click Add Service principal.
Enter a name for the service principal (for example, moengage-pi-sp).
Click Add.

Generate an OAuth Secret for the Service Principal

To generate an OAuth secret for the service principal, perform the following steps:

In the service principals management dashboard, click your newly registered principal (for example, moengage-pi).

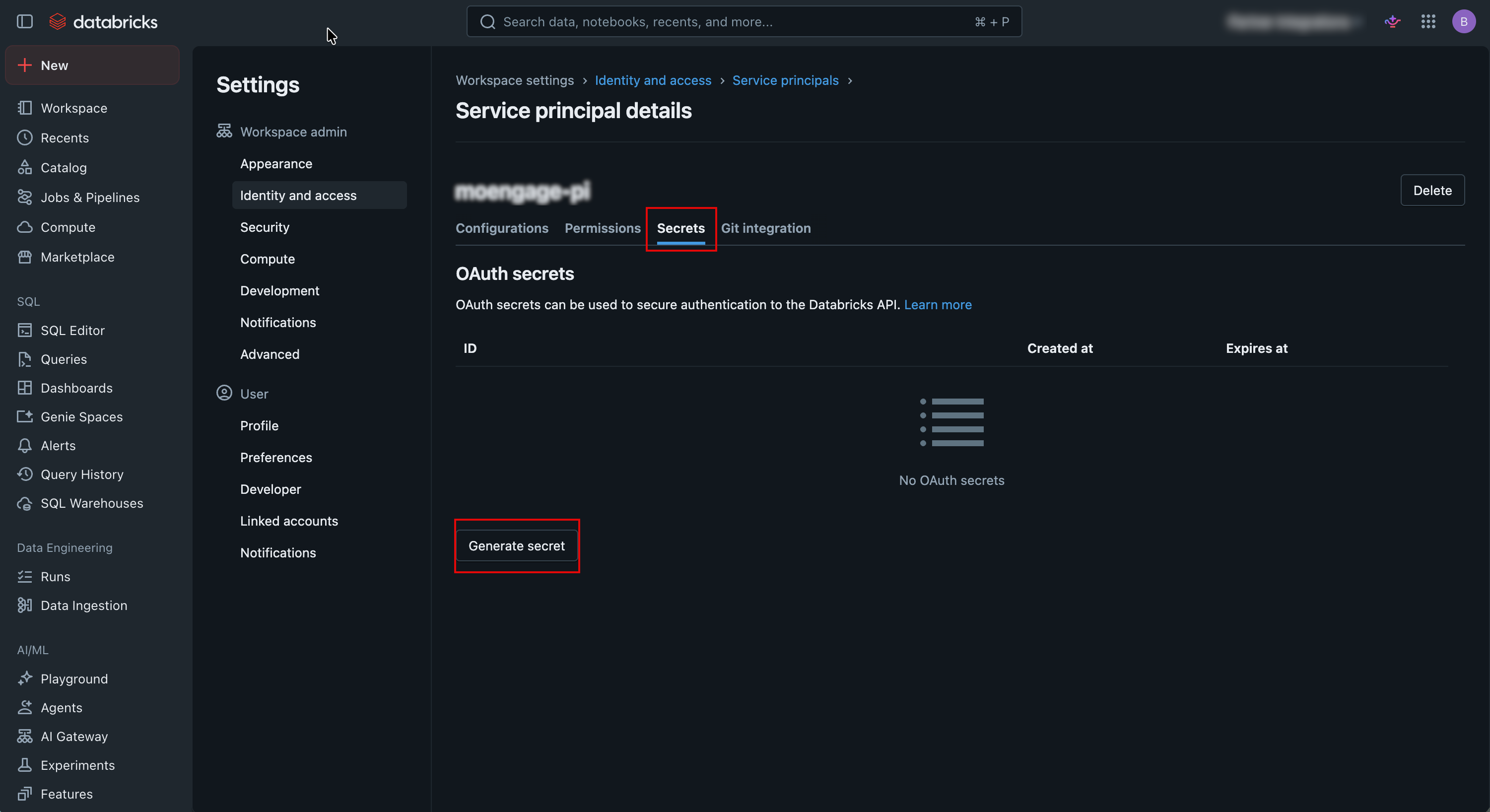

Click the Secrets tab.

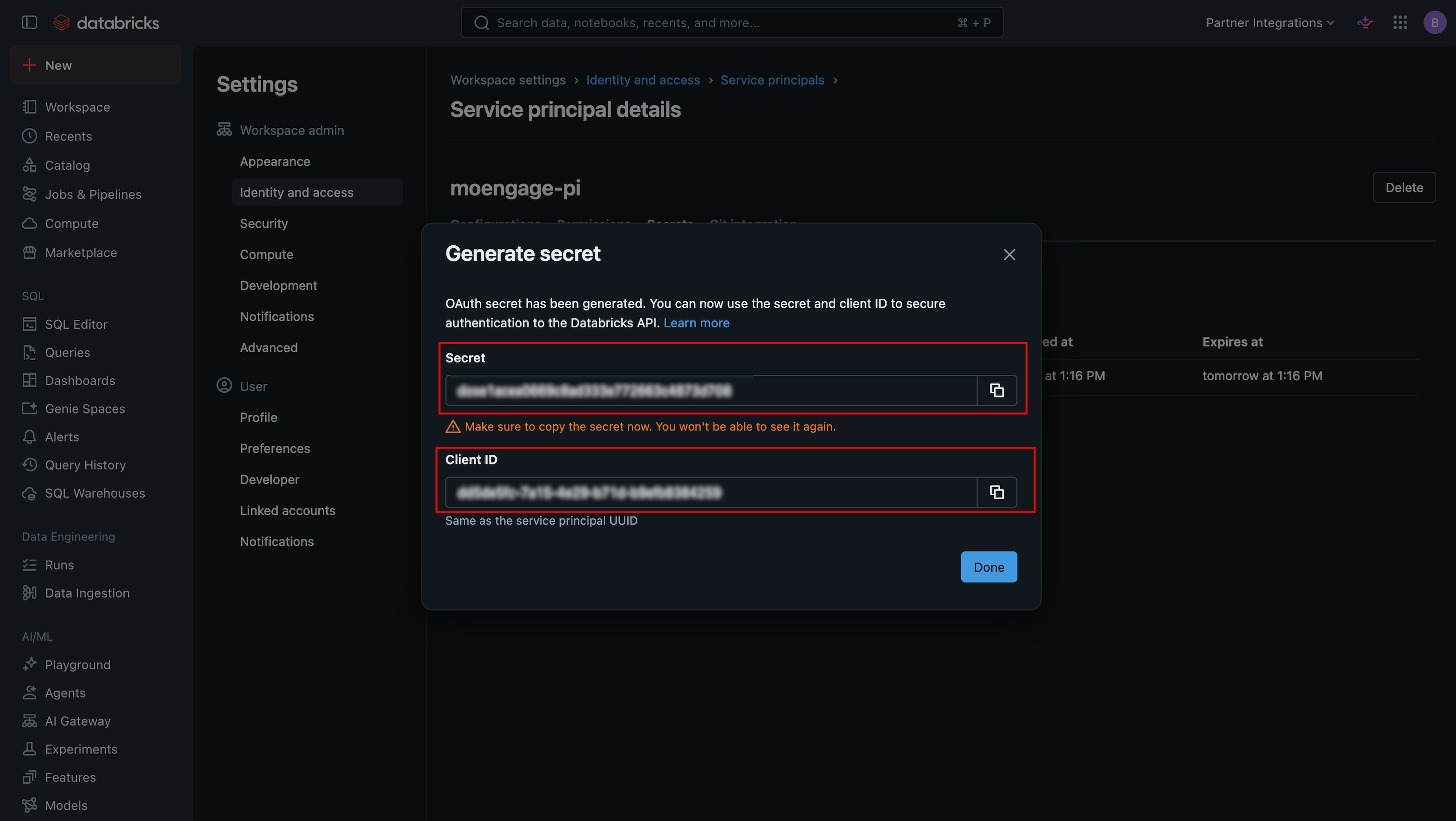

Click Generate secret.

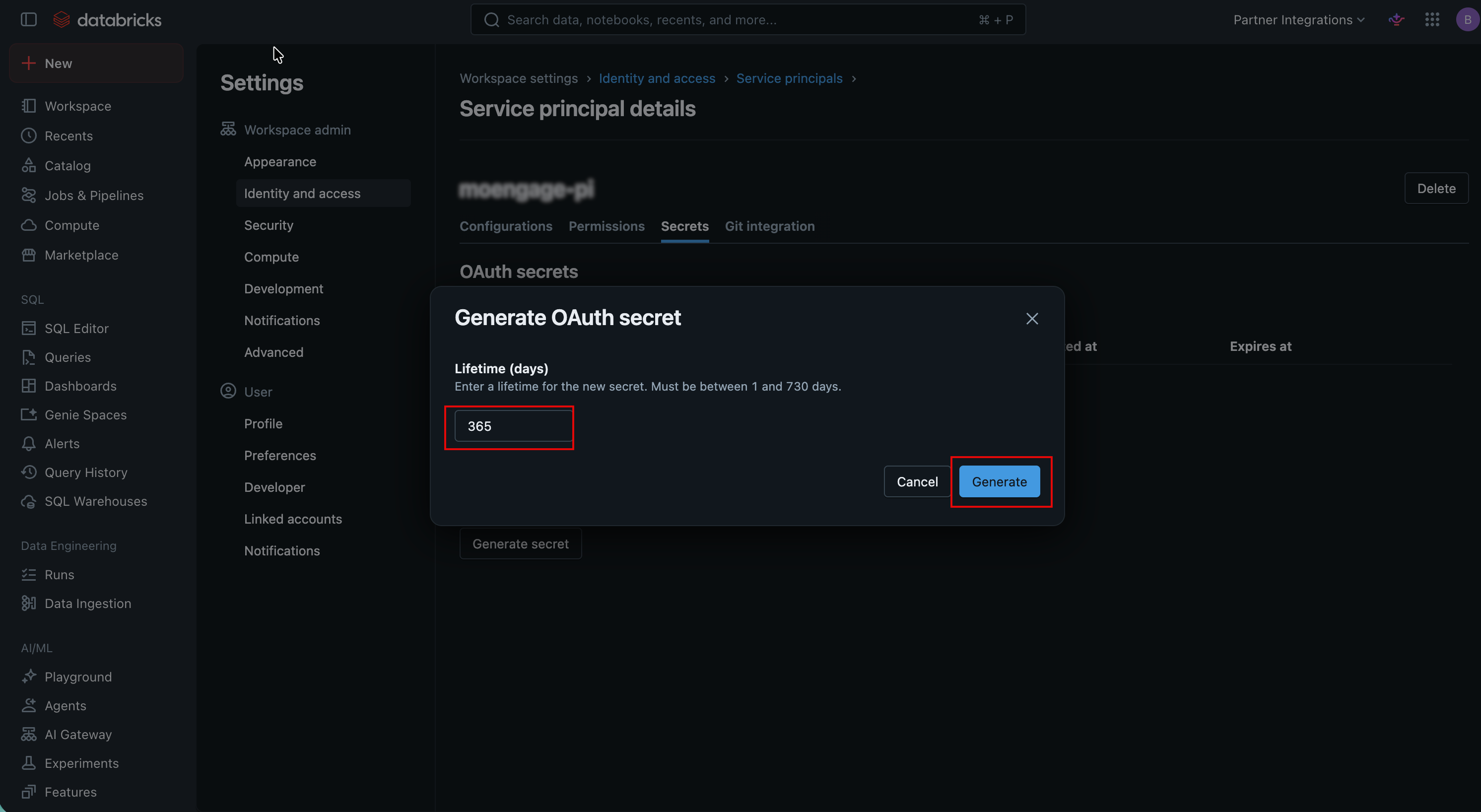

The Generate OAuth secret dialog box appears.
In the Lifetime (days) box, type a lifetime (you must specify a value between 1 and 730 days; the default setting is 365 days).
Click Generate.

Note: Copy the generated client_id and client_secret immediately and save them in a secure location. Databricks does not display the secret value again. Use these values during the OAuth authentication setup on MoEngage.

info

Cloud-Specific Notes

Azure: If you are using a Microsoft Entra ID app, sync it to the Databricks workspace as a service principal first, and then generate a Databricks-managed OAuth secret on it. The client ID to be pasted into MoEngage is the Databricks-side ID, not the Azure Active Directory (AAD) app ID.
GCP: Google service-account IAM constraints are managed independently. MoEngage only consumes the Databricks OAuth credentials.
Private Deployments / Custom Domains: If your workspace uses a custom OAuth token endpoint that differs from the workspace host, locate and copy the custom endpoint URL. Enter it in the optional OAuth Token Endpoint field on MoEngage.

arrow_drop_down Method 2: Personal Access Token (PAT)

A personal access token (PAT) inherits all the privileges of the identity that issues it. You can generate a PAT for either a dedicated service principal or a dedicated user.

Enable Personal Access Tokens (One-Time Setup)

To ensure personal access tokens are enabled, perform the following steps:

Sign in to Databricks as a workspace administrator.
Go to Settings > Advanced > Personal Access Tokens and ensure the feature is enabled.
(Optional but recommended) Under Permission settings, restrict which users or service principals can create tokens.

Choose the Identity for the Token

To choose the identity for the token, select one of the following options:

Dedicated service principal (recommended): This identity is not tied to a specific person, utilizes least-privilege principles, and survives employee turnover. You must generate service-principal tokens by using the Databricks CLI or the Token Management API, because service principals cannot sign in to the user interface.
Dedicated user: This is the simplest method and is generated in the user interface. However, the token carries that user's full permissions and stops working if the user is deactivated.

Generate the Token

To generate the token, perform the following steps:

User Token via the User Interface:
1. In your Databricks workspace, select your Databricks username in the title bar, and then select Settings from the list.

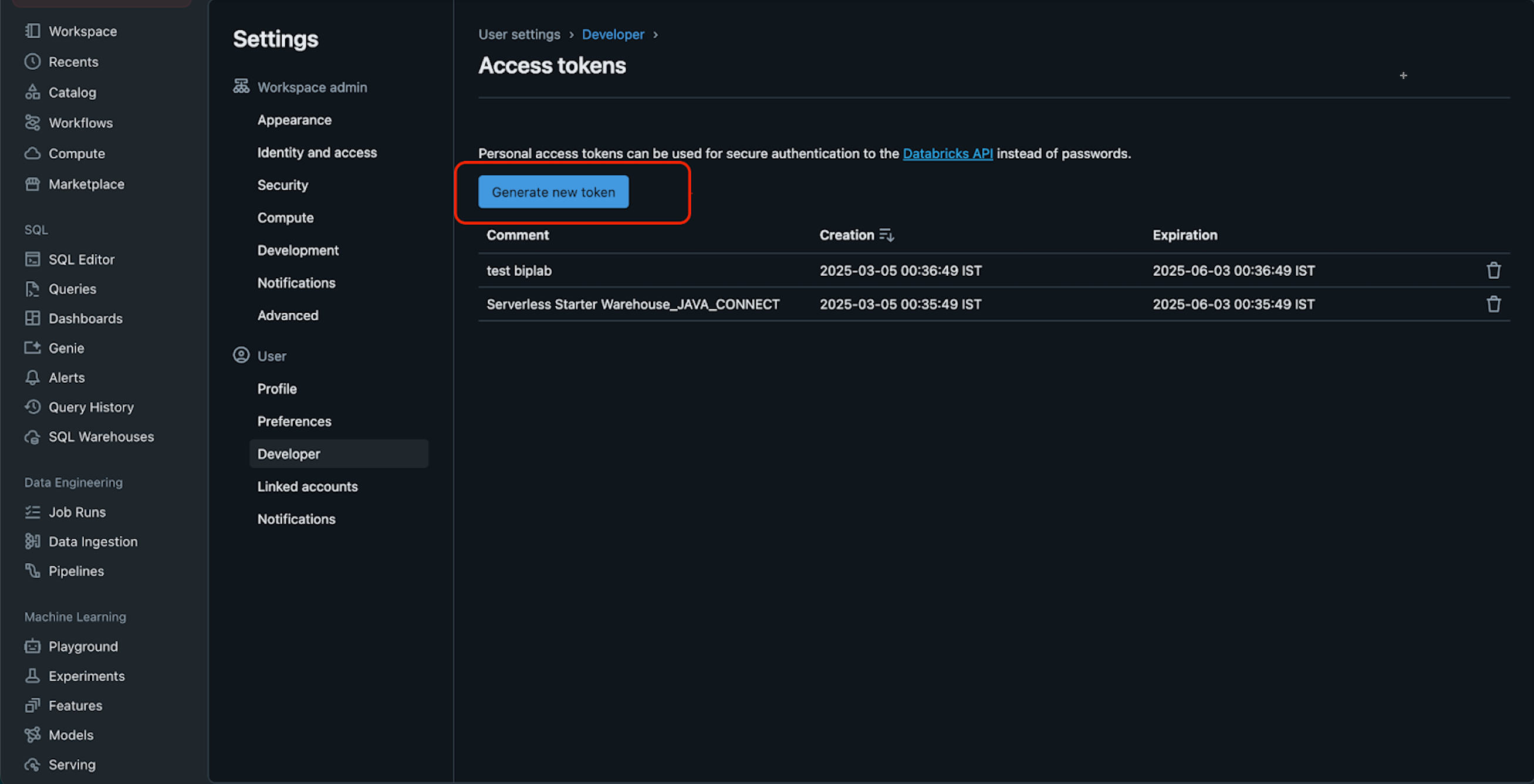

2. On the Access Tokens tab, select Generate New Token.

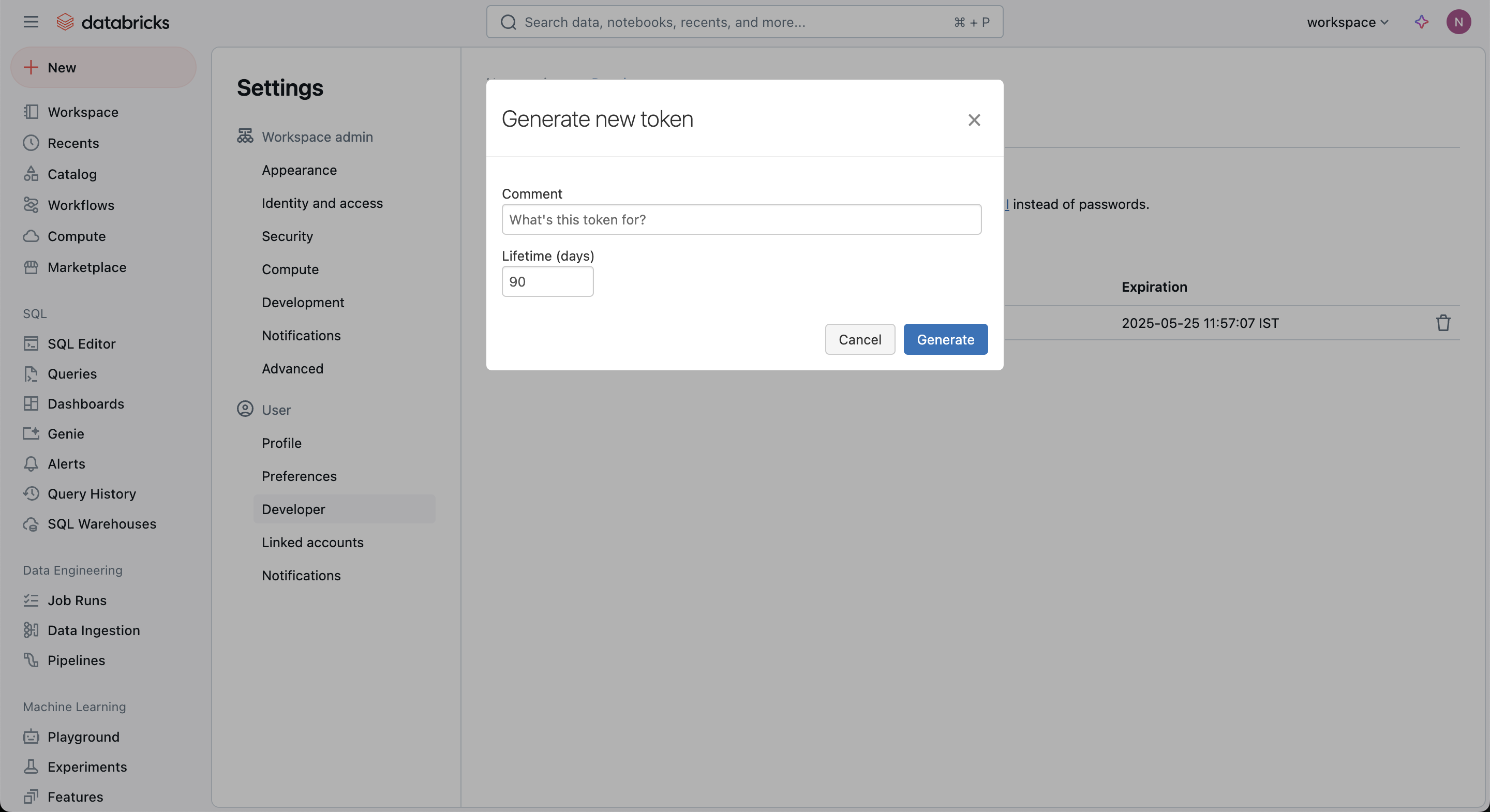

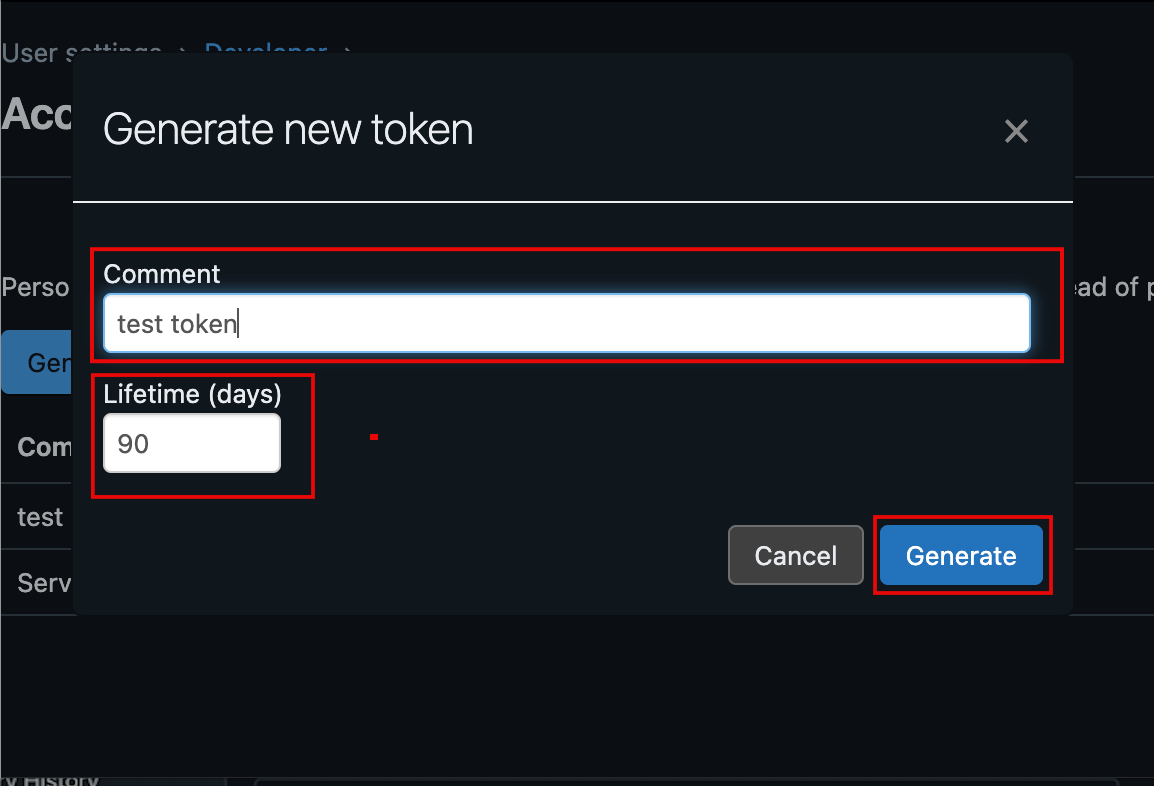

3. Enter a comment to identify this token, and change the token’s lifetime to no lifetime by leaving the Lifetime box empty.

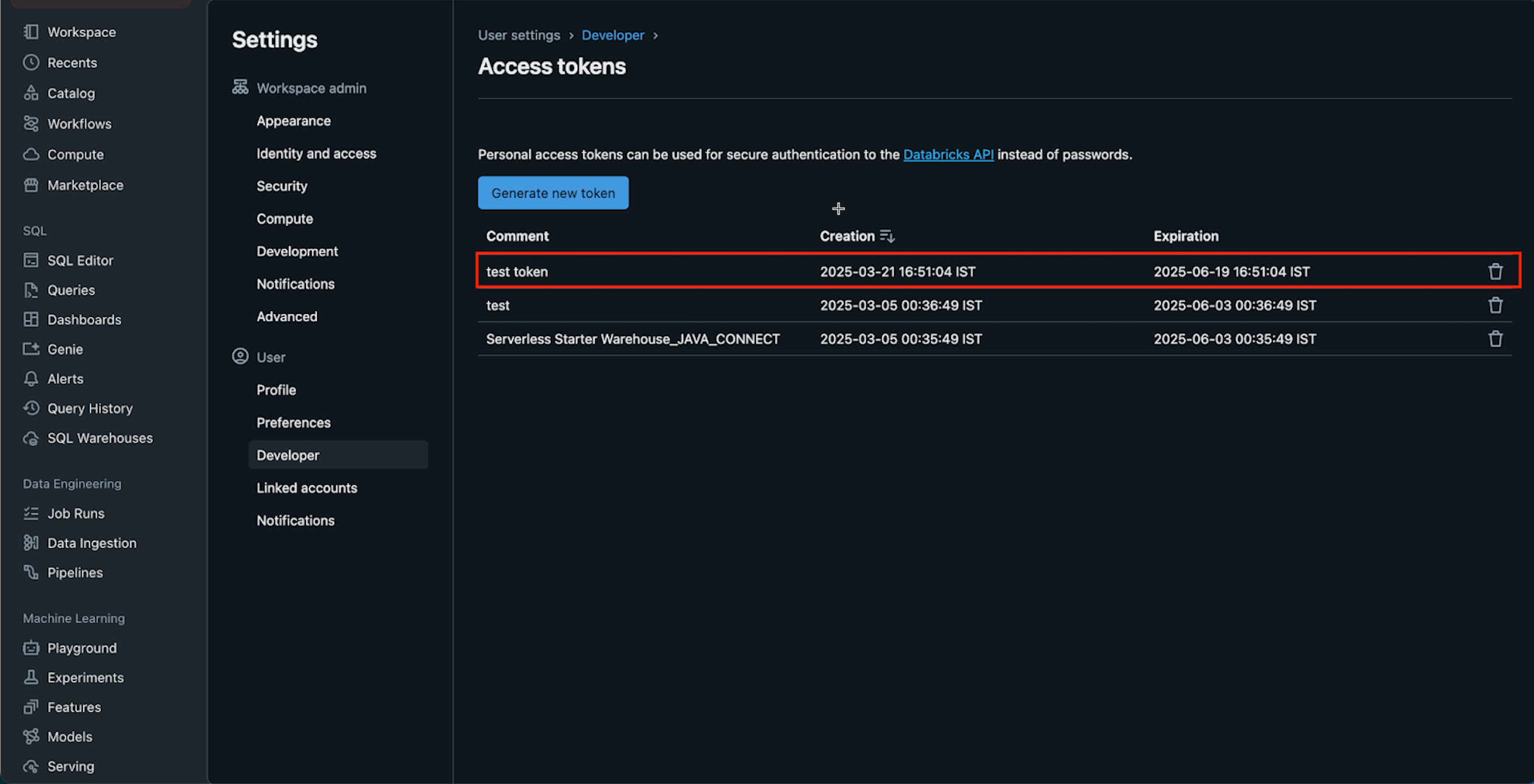

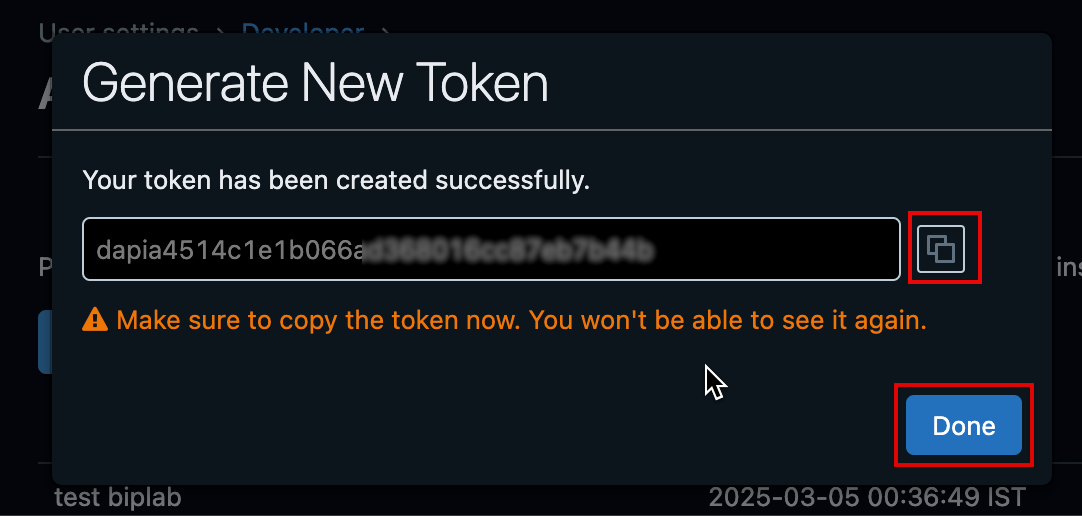

4. Click Generate and copy the generated token.
5. Click Done.
Service-principal token via the Databricks CLI:

Run the following command in your terminal:

Databricks CLI Token Creation
Shell
```
databricks tokens create \
  --lifetime-seconds <lifetime-seconds> \
  --comment "<token-description>" \
  -p <profile-name>
```
Note: Copy the returned token_value immediately, because it is displayed only once.

Part B: Grant Permissions

The required data permissions remain the same regardless of your chosen authentication method. Throughout this section, the <grantee> represents either:

The service principal's application ID (if using OAuth or a Service Principal PAT).
The user's email address (if using a User PAT).

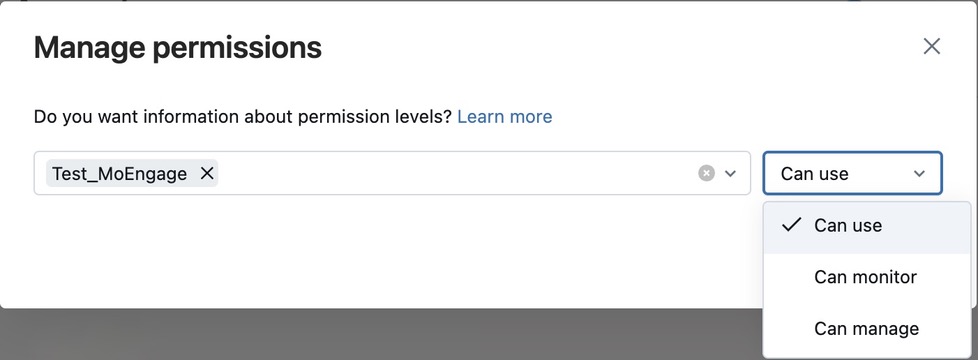

You must assign the Can use permission on the SQL warehouse referenced in your connection path. To set this in the Databricks user interface, go to SQL Warehouses > <warehouse> > Permissions, and then add the <grantee> with the Can use permission.

To run queries on data from Databricks, import data into MoEngage, or use the Warehouse Segments feature, you must connect to your Databricks warehouse. Ensure you have administrative privileges on the Databricks platform and that your credentials do not expire.

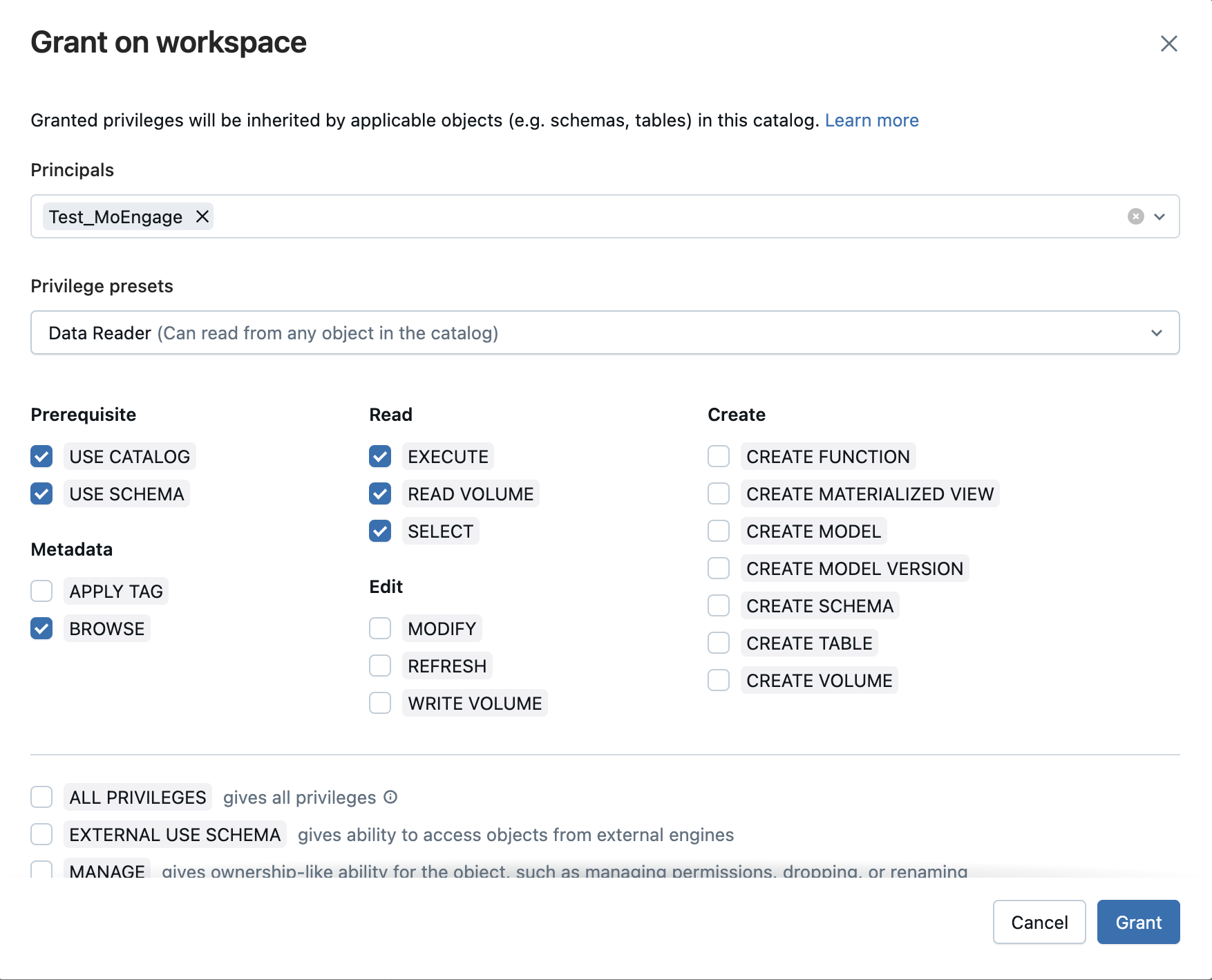

Provide Data Reader Access to the Service Principal

To provide data reader access to the service principal, execute the following SQL query in Databricks:

code	Catalog SQL permission To grant catalog-level access to your service principal, execute the following SQL query in Databricks: GRANT USE CATALOG ON CATALOG <catalog> TO `<sp_application_id>`;

Bare Minimum Grants (One Source Table)

To grant bare minimum permissions for one source table, execute the following SQL query in Databricks:

GRANT USE SCHEMA ON SCHEMA <catalog>.<source_schema> TO `<sp_application_id>`;
GRANT SELECT ON TABLE <catalog>.<source_schema>.<source_table> TO `<sp_application_id>`;

The service principal does not require MODIFY, CREATE TABLE, or any write permissions for imports.

Optional Convenience Grant for All Current and Future Tables

To grant schema-wide access to avoid setting permissions manually for each new source table, execute the following SQL query in Databricks:

GRANT SELECT ON SCHEMA <catalog>.<source_schema> TO `<sp_application_id>`;

This schema-wide authorization is broader than the single-table approach. You can choose either the table-level approach or the schema-level approach, but do not configure both.

To export data from MoEngage to Databricks, you must connect MoEngage to your Databricks warehouse. Ensure you have administrative privileges on the Databricks platform and that your credentials do not expire.

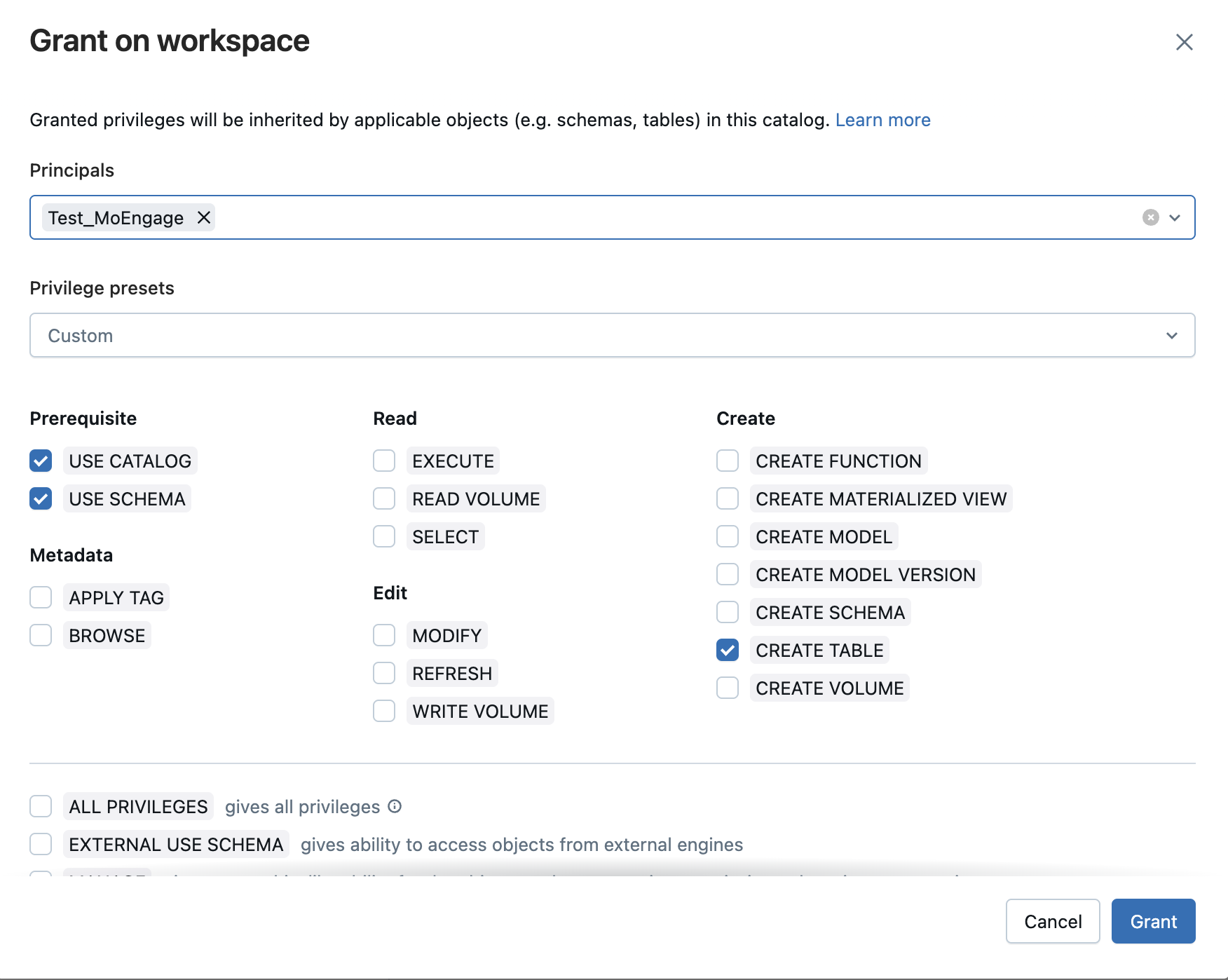

Provide Write Access to the Service Principal

To provide write access to the service principal, execute the following SQL query in Databricks:

code	Catalog SQL Permission To grant catalog-level access to your service principal, execute the following SQL query in Databricks: GRANT USE CATALOG ON CATALOG <catalog> TO `<sp_application_id>`;

Bare Minimum Grants (MoEngage Creates the Table)

To authorize MoEngage to create and write to the target table automatically, execute the following SQL commands to grant schema-level permissions:

code

Export SQL Permissions

To authorize MoEngage to create and write to the target table automatically, run the following SQL commands to grant schema-level permissions to your service principal:

GRANT USE SCHEMA ON SCHEMA <catalog>.<target_schema> TO `<sp_application_id>`;
GRANT CREATE TABLE ON SCHEMA <catalog>.<target_schema> TO `<sp_application_id>`;

Unity Catalog automatically assigns ownership of the new table to the service principal that runs the CREATE TABLE command. This ownership implicitly grants the service principal the necessary MODIFY, SELECT, and DROP privileges required for subsequent bulk inserts and updates.

Optional Convenience Grant for all Current and Future Tables

To grant schema-wide write permissions, execute the following SQL query in Databricks:

GRANT MODIFY ON SCHEMA <catalog>.<target_schema> TO `<sp_application_id>`;

This schema-level grant is broader than the single-table approach. You can choose either the table-level or the schema-level approach, but do not configure both.

Part C: Token and Secret Management

To maintain a secure connection, use the following procedures to manage and rotate your authentication credentials.

Personal Access Token (PAT) Lifetime and Rotation

To rotate an expiring or compromised PAT, perform the following steps:

info	Lifetime note Unlike OAuth credentials, PATs are static and do not refresh automatically. When a token expires or is revoked, the MoEngage connection will stop working until you update it. Set a token lifetime that aligns with your corporate security policy and avoid using no-expiry tokens.

To rotate an expiring or compromised PAT:

Generate a new token in Databricks (see Method 2: Personal access token (PAT) for detailed generation steps).
Copy the newly generated token.
Sign in to your MoEngage dashboard, go to the active connection, click Edit, and then paste the new token in the Access token box.
Click Save.
Revoke the old token in the Databricks workspace immediately to terminate outdated access.

Rotate the Client Secret

To rotate the service principal client secret, perform the following steps:

In Databricks, generate a new secret for the service principal (click Service principals > Secrets > Generate secret).
Copy the newly generated client_secret.
In the MoEngage dashboard, open the active connection, click Edit, paste the new client_secret, and then click Save.
(Optional) After you verify that the new secret works correctly, revoke the old secret in Databricks.

info

Information

MoEngage does not poll for secret changes. The next scheduled MoEngage sync job that starts after you save the configuration automatically uses the new secret.

Active jobs that run during the secret rotation continue to use the old token until the token expires (typically one hour or less). These jobs might experience brief, temporary token refresh failures during the rotation window, but the next scheduled run completes successfully.

Switch Between a Personal Access Token (PAT) and OAuth

To switch your authentication method between a personal access token (PAT) and OAuth, perform the following steps:

warning

Warning

If you change your authentication type, your existing credentials will be lost. For example, switching from a Personal Access Token (PAT) to OAuth permanently deletes the existing token. If you want to switch back later, you must generate and paste a new PAT into MoEngage. The updated connection details take effect starting with the next scheduled job. Any active jobs will continue to use the credentials retrieved at startup.

Step 2: Obtain Databricks Credentials for App Marketplace Integration

To obtain Databricks credentials for the App Marketplace, perform the following steps:

Sign in to your Databricks account.

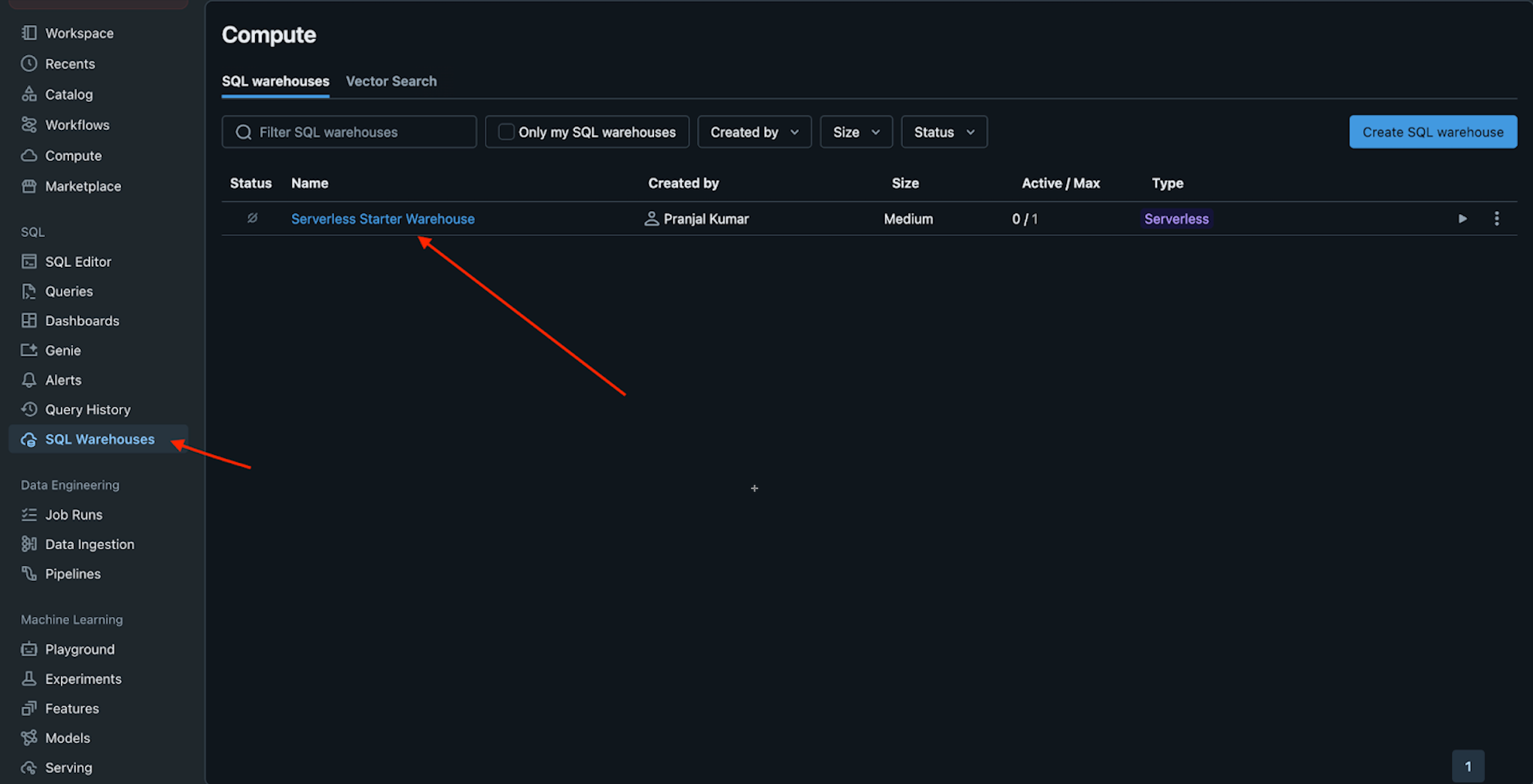

On the left navigation menu, click the SQL Warehouses tab.
Click Serverless Starter Warehouse.

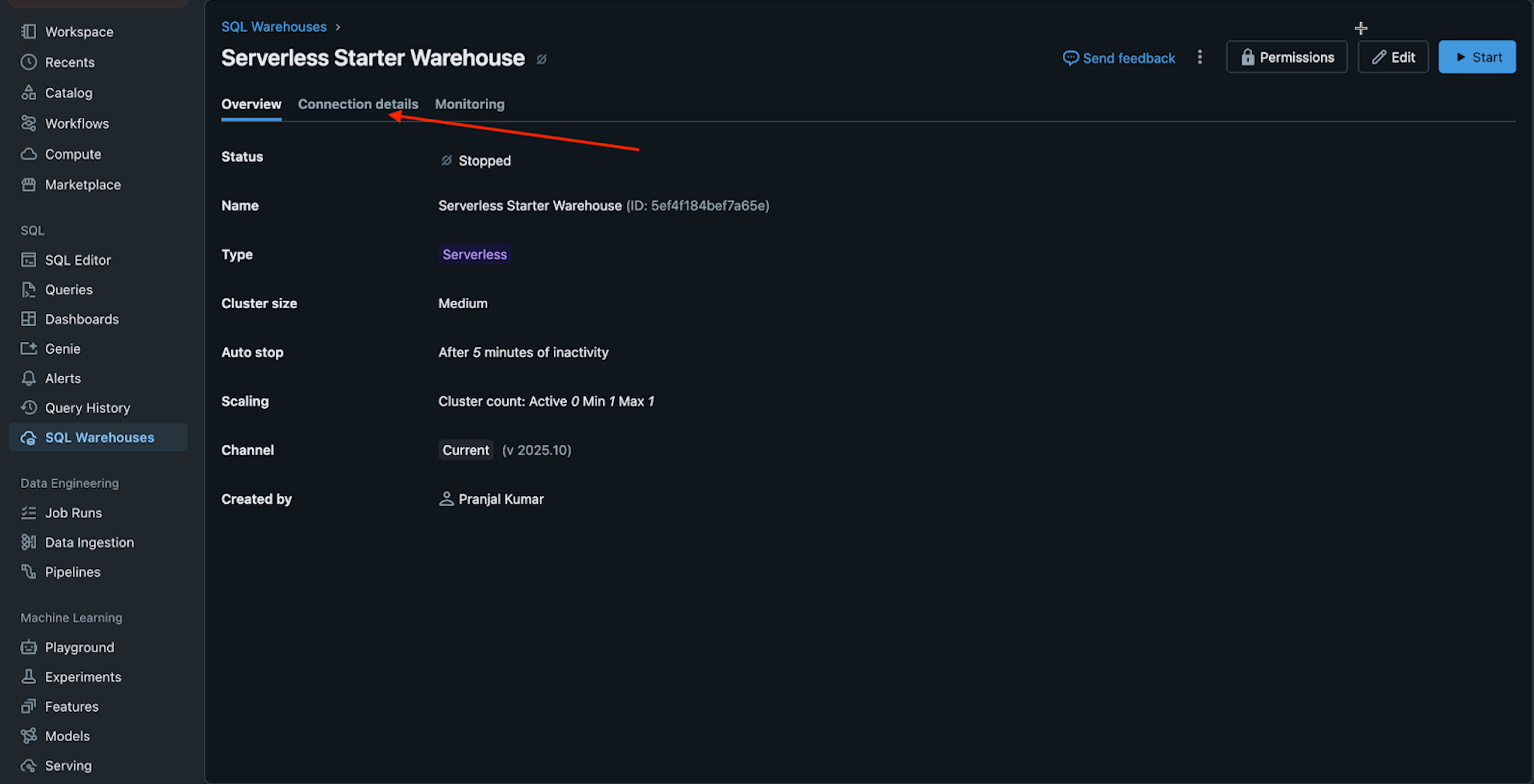

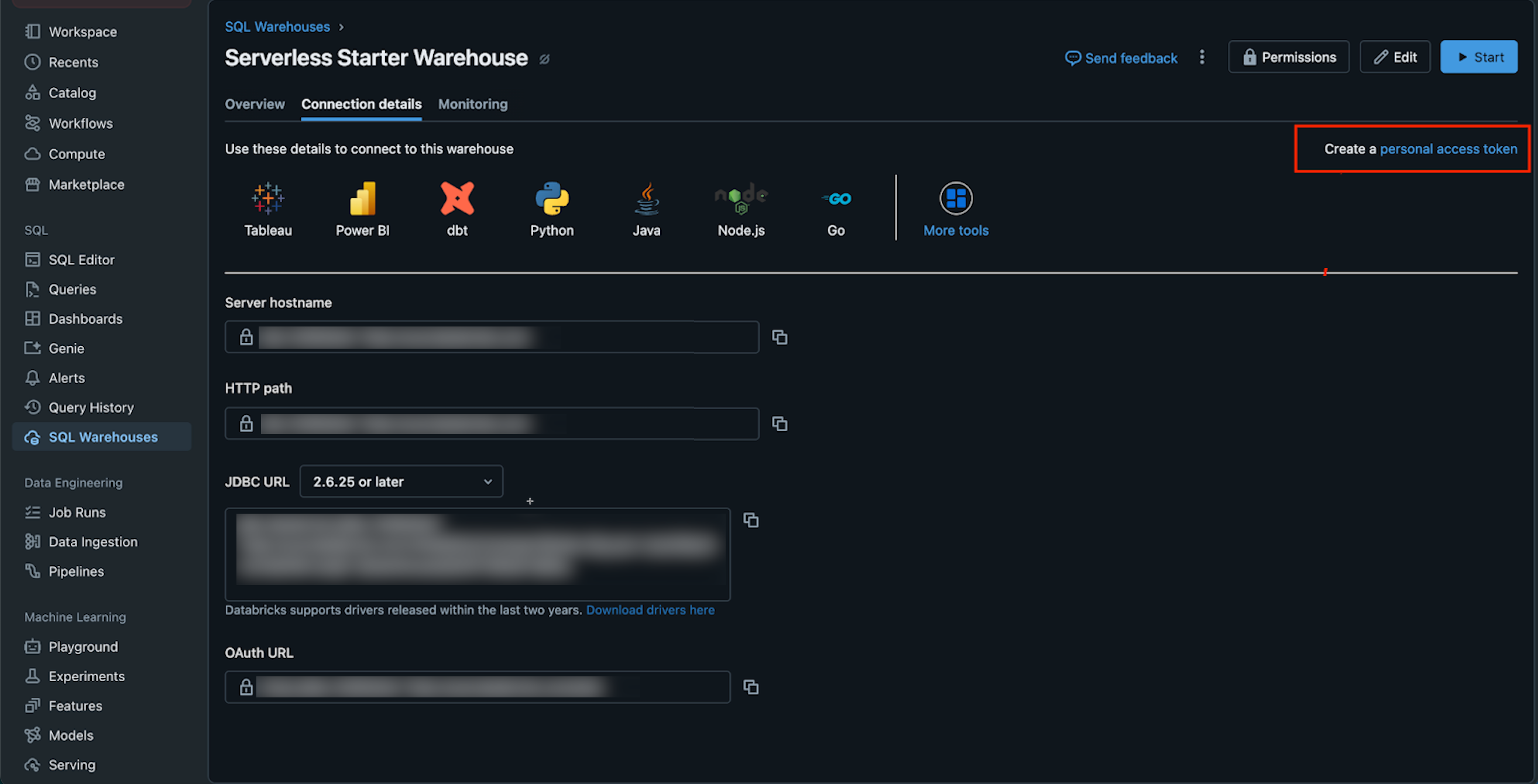

On the Serverless Starter Warehouse page, click the Connection details tab.

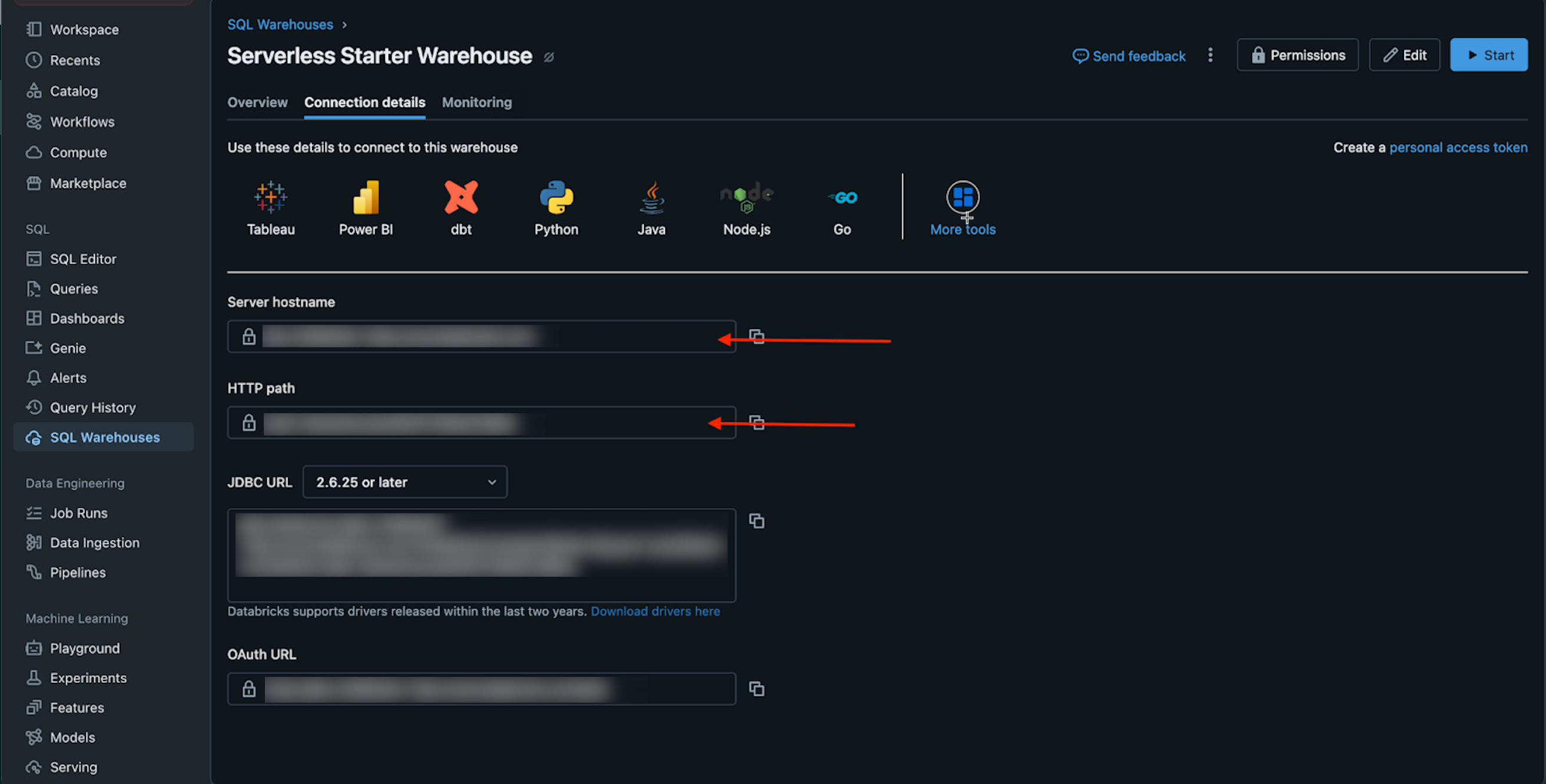

Copy the Server hostname and HTTP path credentials to paste into the MoEngage App Marketplace.

info
Information

To create a generated access token, you can also follow the steps described in the Create a Personal Access Token (PAT) section.

Step 3: Connect Databricks on the App Marketplace

To connect Databricks on the App Marketplace, perform the following steps:

On the left navigation menu in the MoEngage dashboard, click App marketplace.

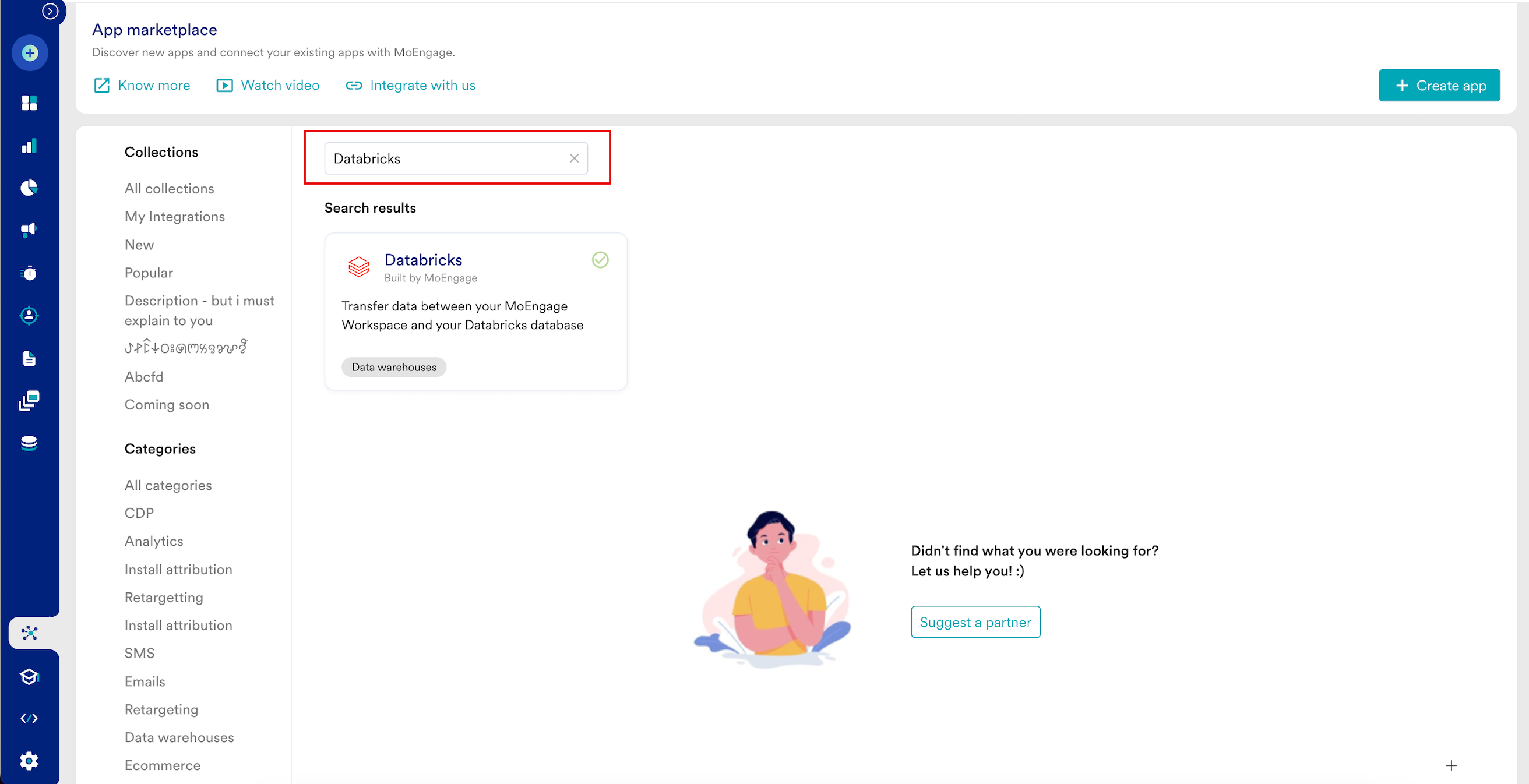

On the App Marketplace page, search for Databricks.
Click the Databricks tile.

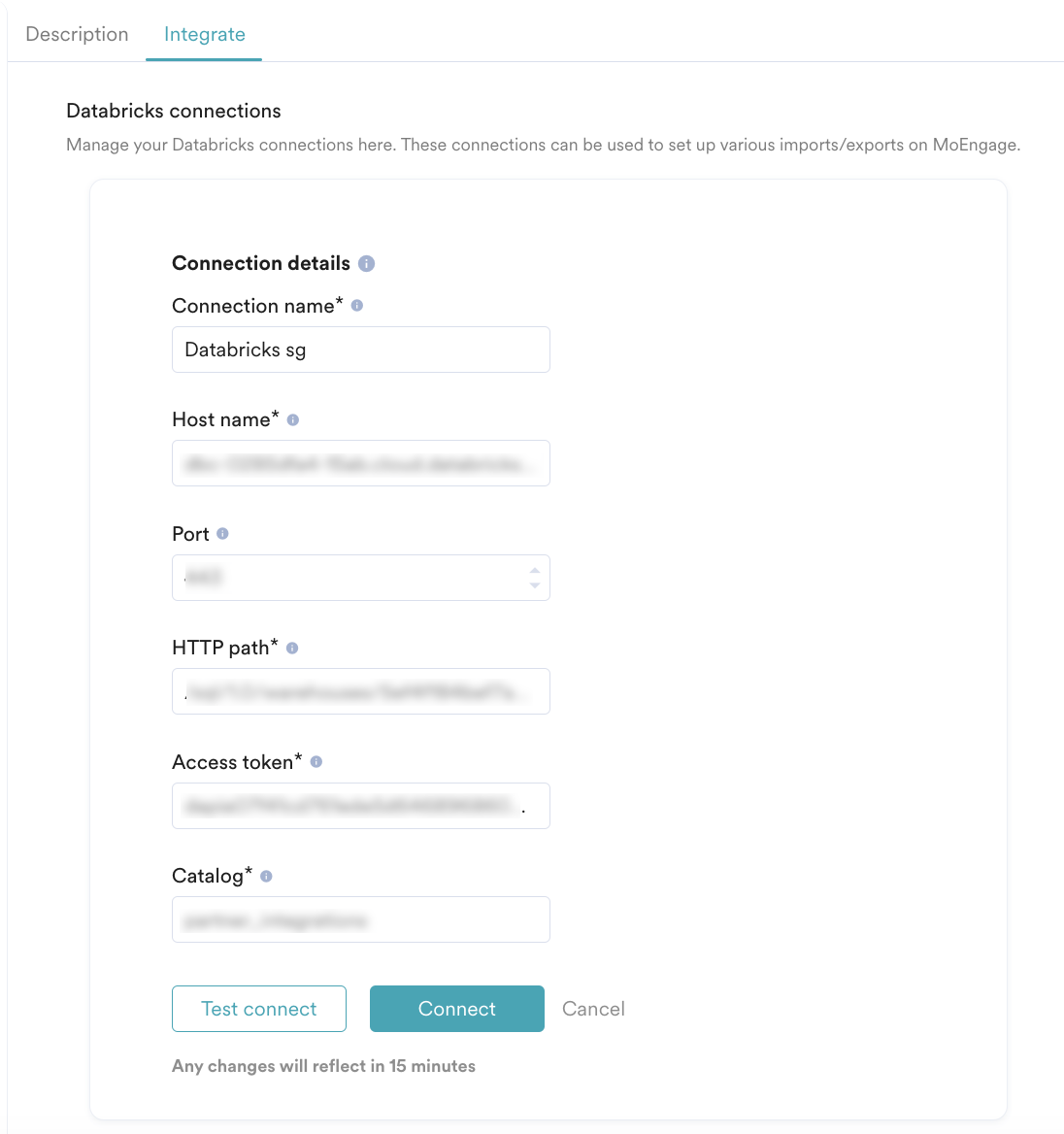

On the Databricks page, go to the Integrate tab and click +Add Connection.

Enter the following details:

Field	Required	Description
Connection name	Yes	Type a name for the Databricks connection.
Host name	Yes	This refers to the unique identifier assigned to a specific cluster. Type the hostname that you want to connect to. To find your server hostname, sign in to the Databricks web console, and then navigate to SQL Warehouses > Connection details.
Port	Optional	Type the port to which you want to connect your Databricks server. The default is 443.
HTTP path	Yes	Type the HTTP path of your compute resource on Databricks. To find your HTTP path, navigate to SQL Warehouses > Connection details.
Authentication method	Yes	Select the authentication method to connect MoEngage with Databricks. Select one of the following options: OAuth: Select this option to use secure OAuth 2.0 machine-to-machine (M2M) credential verification. This method requires you to provide a client ID and a client secret. Access Token: Select this to connect by using your Personal Access Token (PAT). Selecting this option displays only the Access token and Catalog fields.
Client ID	Conditional	Type the client identifier (Application ID) of your registered service principal on Databricks. This field is required only when you select OAuth as the authentication method.
Client Secret	Conditional	Type the client secret corresponding to your client ID. This field is required only when you select OAuth as the authentication method.
Catalog	Yes	Type the Databricks catalog name to which MoEngage will have access. This field is displayed for both authentication methods.

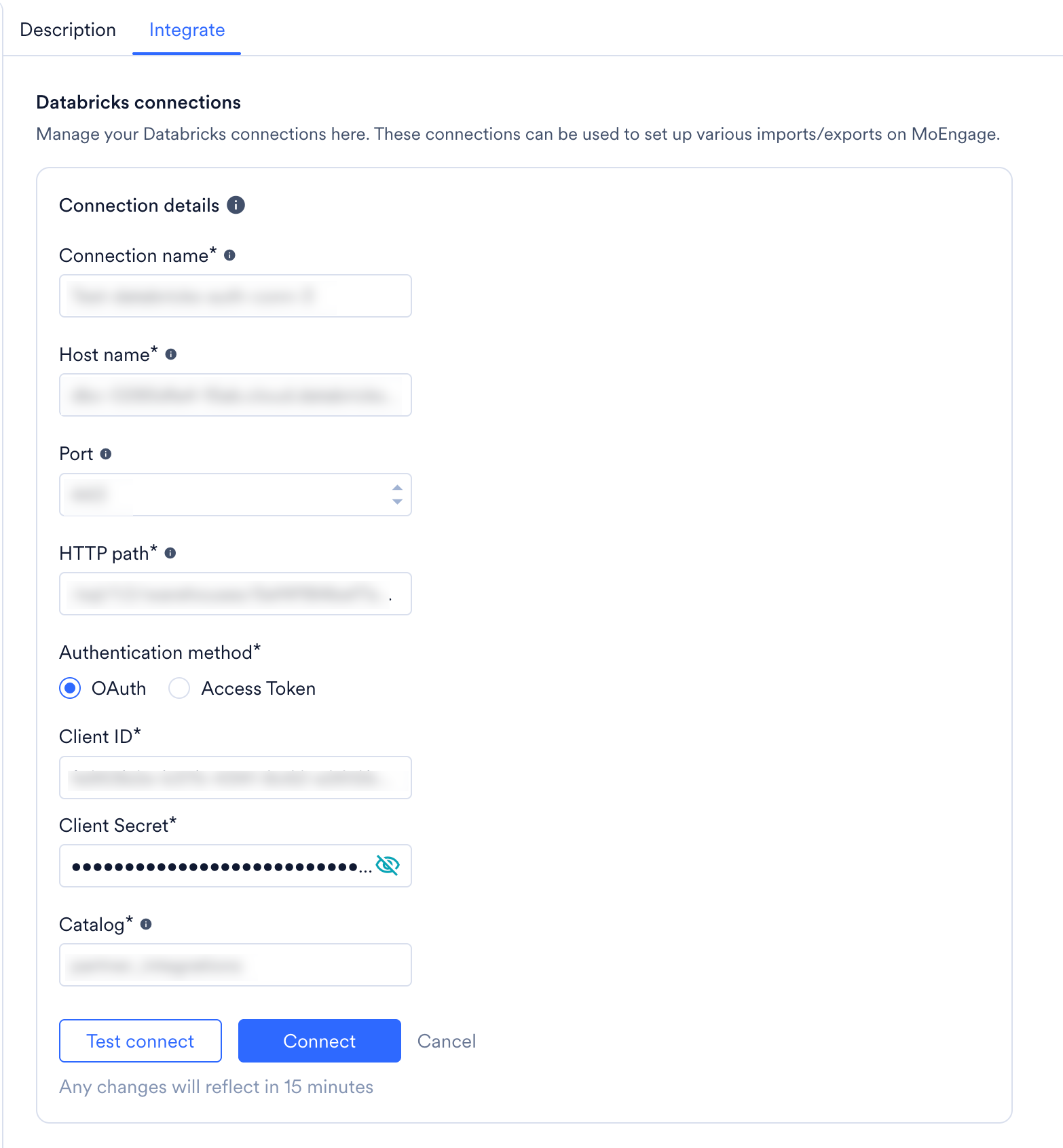

Integration Field Mapping

Click Connect. Your Databricks connection is now integrated.

After you have set up a Databricks connection, you can use it to set up various imports and exports in MoEngage.

Step 4: Network Security and IP Allowlisting

To configure network security and IP allowlisting, perform the following steps:

If your Databricks workspace restricts network access or uses IP access lists, you must explicitly add the egress IP blocks allocated to MoEngage to your allowlist, based on your data center (DC) geography.

info

IP Access List Whitelisting

Because Databricks routing for database execution traffic resolves through your workspace host URL, a single allowlist entry covering the workspace host encompasses database and query traffic. Reach out to your MoEngage Support Team to obtain the regional egress IP blocks corresponding to your workspace data center.

Step 5: Connection Verification and Troubleshooting

To verify your connection or troubleshoot failures, analyze the following observed errors:

After the service principal and grants are configured, navigate to the MoEngage App marketplace tab and test your connection. A successful test confirms that the OAuth flow and service principal permissions are configured correctly.

If the verification step fails, use the diagnostics guide below to resolve common issues:

Observed Connection Error	Likely Root Cause and Mitigation Strategy
Invalid OAuth client credentials	The `client_id` or `client_secret` contains a typo, or the active secret was rotated or deleted in Databricks. Verify the credentials and try again.
Service principal lacks workspace permissions	The service principal is missing the Can use permission on the designated SQL warehouse, or is missing USE CATALOG privileges on the catalog.
Invalid Catalog	The catalog name specified in MoEngage is incorrect, or the service principal has catalog-level traversal permissions but is missing underlying schema or table permissions.

Warehouse Segments Using Databricks

Databricks is now available in our Warehouse Segments. For more information, refer to Warehouse Segments.

Import Users and Events from Databricks into MoEngage

For more information on setting up MoEngage <> Databricks imports for your account, refer to Databricks Imports guide.

Export Events from MoEngage to Databricks

You can export events from MoEngage to your Databricks tables. To set up an export, read our Databricks Exports guide.
