1. Navigate to Settings > Channel > SMS > Sender configuration.
2. Click + Add Sender at the upper right corner. In the Add Sender screen, you can
   add a new custom service provider or a sender to a configured service provider.
3. Click + Add custom service provider.

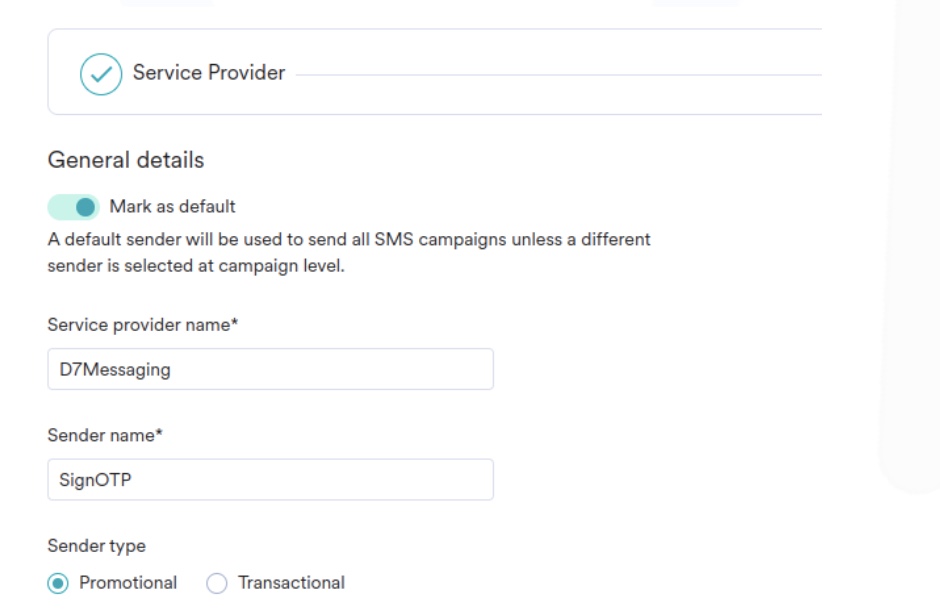

4. Add details and settings to the Sender Details screen.


   Field	Description
   Mark as default	Turn this toggle on to mark the sender as the default sender for D7Messaging. If marked as default, this sender would be used to send all SMS campaigns from MoEngage unless you select a different sender while creating the campaign. This is not required.
   Service provider name	This field identifies the service provider you are configuring on the MoEngage dashboard and must be unique. Type the service provider's name here. Enter D7Messaging.
   Sender name	This field identifies the sender. Enter the name of the sender here.
   Sender type	The sender type can either be Promotional or Transactional. Select Promotional when you plan to use the sender to send information about your brand, promote deals, or engage with users. Select the sender type as Transactional for sending alerts about transactions, OTPs, security information, or any information that can be classified as transactional in nature.

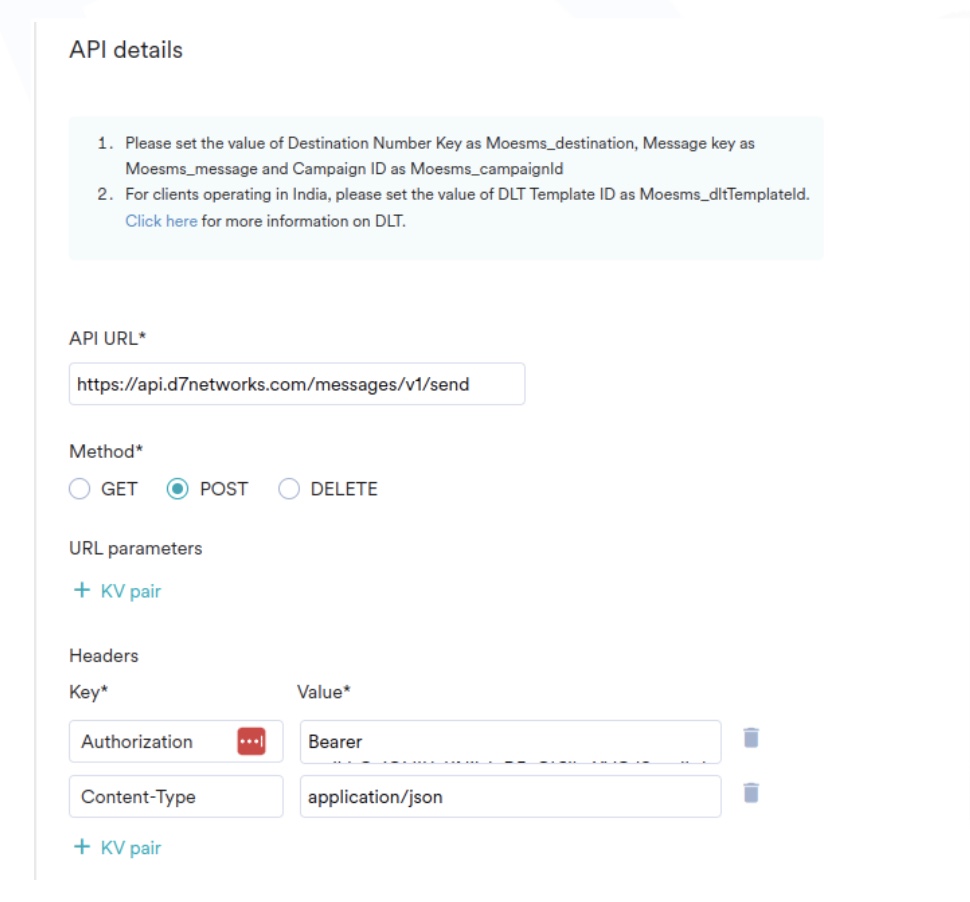

5. Configure the webhook by adding the following details.


   Field	Description
   API URL	This field contains information about the URL that should be used to send an API request to the sender. You can get this information from the sender's API documentation. Type the sender's API endpoint here. The API URL for D7Messaging is: https://api.d7networks.com/messages/v1/send
   Method	Select POST as the HTTP method.
   Headers	Add the Request Headers to be passed to the API as Key-Value pairs using this option. Key Value Authorization Bearer the_token_from: https://app.d7networks.com/api-tokens Content-Type application/JSON

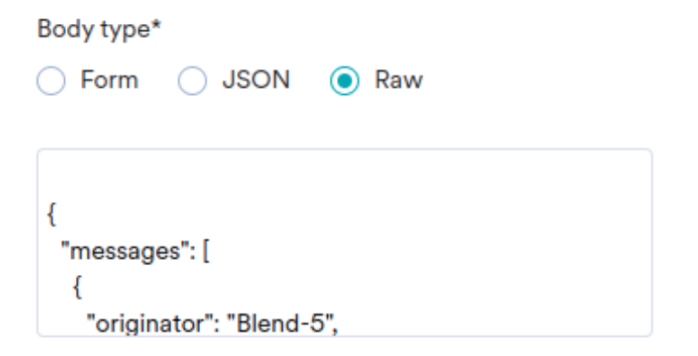

   Body Type	Under Body Type, select Raw and add the following details: { "messages": [ { "originator": "SignOTP", "recipients": ["Moesms_destination"], "content": "Moesms_message", "client_ref": "MoEngage" } ] }

6. Click Send test SMS to verify your configuration. The Send Test SMS dialog box is displayed.
   1. Under Mobile Number, enter a mobile number.
   2. In the Message box, enter a message.
   3. Click Send to test the configuration.
   4. Click OK to close the dialog box.
7. Click Save to save the sender configuration.

Delivery Tracking

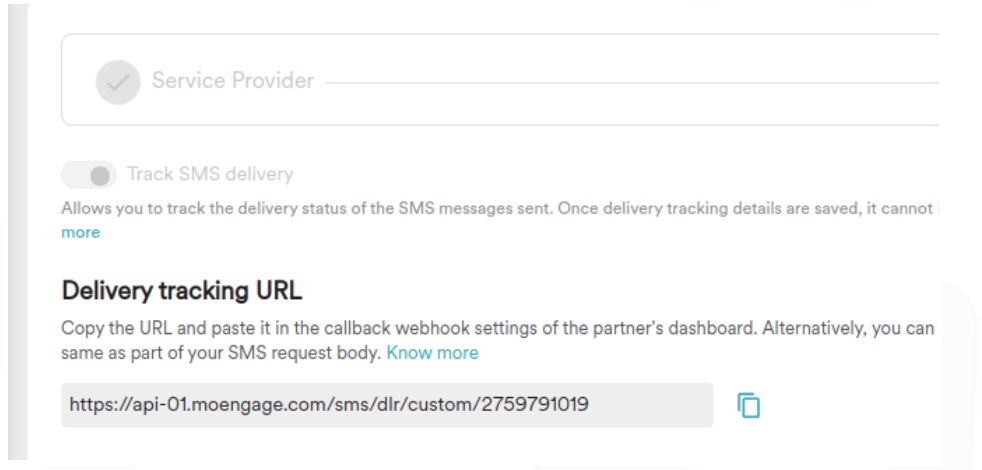

You can configure delivery tracking after creating the sender in the MoEngage Dashboard.

1. Open the D7Messaging you configured and go to step 3, "Delivery tracking (optional)."
2. Copy the Delivery Tracking URL.

   In the Delivery tracking URL field, enter the following URL:
   https://api-0X.moengage.com/sms/dlr/custom/2759791019
   where X is the number of the data center (DC).


   • You can configure this on the D7 User Dashboard as a Report URL or add it in the message body by clicking Previous and updating it.
   • The final message raw body will look like the following:
     Code

     {
         "messages": [
         {
             "originator": "SignOTP",
             "recipients": ["Moesms_destination"],
             "content": "Moesms_message",
             "report_url": "https://api-01.moengage.com/sms/dlr/custom/2759791019", "client_ref": "MoEngage"
         }
     ]
     }

   • After the URL is added, under Map attributes of the delivery response, you must map attributes to receive the delivery report. For more information, refer to Delivery Tracking for Custom Connectors.
   • Select Map fields from the delivery response or Map fields manually. If you select the latter, configure the following values:
     • Attribute storing unique ID of the sent response: Enter the request_id.
     • Attribute storing Unique delivery ID field of delivery response: Enter the request_id.
     • Attribute storing delivery status: Enter the status.
     • Success values for delivery status: Enter delivered.
     • Attribute storing failure reason: Enter the status.
3. Check the parameters on the Delivery Tracking URL and click Save.
