8x8

MoEngage has native integration for WhatsApp with 8x8. This integration allows businesses to send templated WhatsApp messages using senders powered by 8x8. MoEngage can send messages and show Delivery and Read Analytics.

Sender Configuration

To configure a sender from 8x8 on the MoEngage Dashboard, perform the following steps:

  1. Go to Settings -> Channels -> WhatsApp -> Sender configuration.

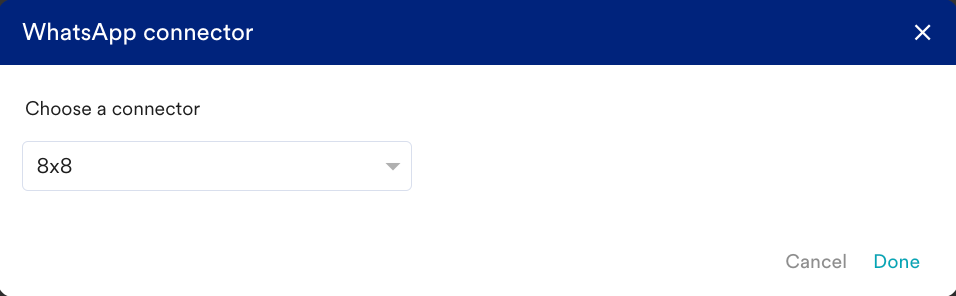

  2. Click + Add connector. The WhatsApp connector pop-up window is displayed.
    8x8 - 3.png



  3. From the Choose a connector drop-down list, select 8x8 and click Done.

  4. Add the following details:
    8x8 - 1.png
    Field Description
    Sender name This field denotes the name you want to provide to the sender profile. This would be available in the sender so that you can recognize this easily while using it to create a campaign inside MoEngage. The sender name should be between 5-50 characters. This is a mandatory field.
    WhatsApp business number

    This field denotes the phone number registered with WhatsApp (directly or through 8x8) using which you want to send out WhatsApp Messages to your users. On 8x8 Connect, you can find your WhatsApp business numbers on the Left Menu -> Chat Apps -> Channels.

    API URL
    1. Log in to the 8x8 Connect portal.
    2. From the left menu, go to the API keys section.
    3. Under instructions, click the sub-account of your choice to copy it.
    4. Replace "Your_Chosen_Sub-account" with the copied sub-account in the following URL:
      https://chatapps.8x8.com/api/v1/subaccounts/Your_Chosen_Subaccount/partners/moengage/wa
    Authorization From the same API keys section, you can scroll down and select an existing API key or create an API key specifically for MoEngage integration.
  5. Click Save.

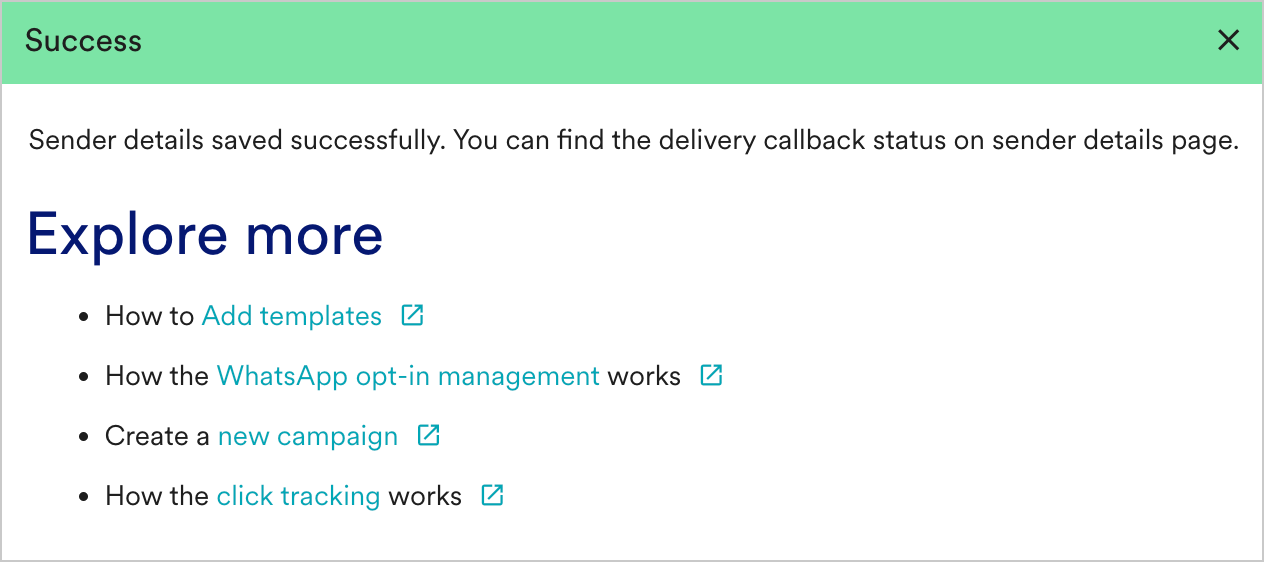

    Upon successful integration, you will get the following message.

Delivery Tracking

To track the delivery of your WhatsApp Messages inside MoEngage, you would need to copy MoEngage Delivery Tracking URL and share it with our support team for us to configure it for you. You should be able to see the URL as shown below:

8x8 - 2.png

info

Note

  • You should have pre-approved templates with 8x8 to create a WhatsApp campaign for an 8x8 sender in MoEngage.
  • You can create the same template verbatim in MoEngage. For more information, refer to Add Templates.

Next Steps
